. MAINTENANCE

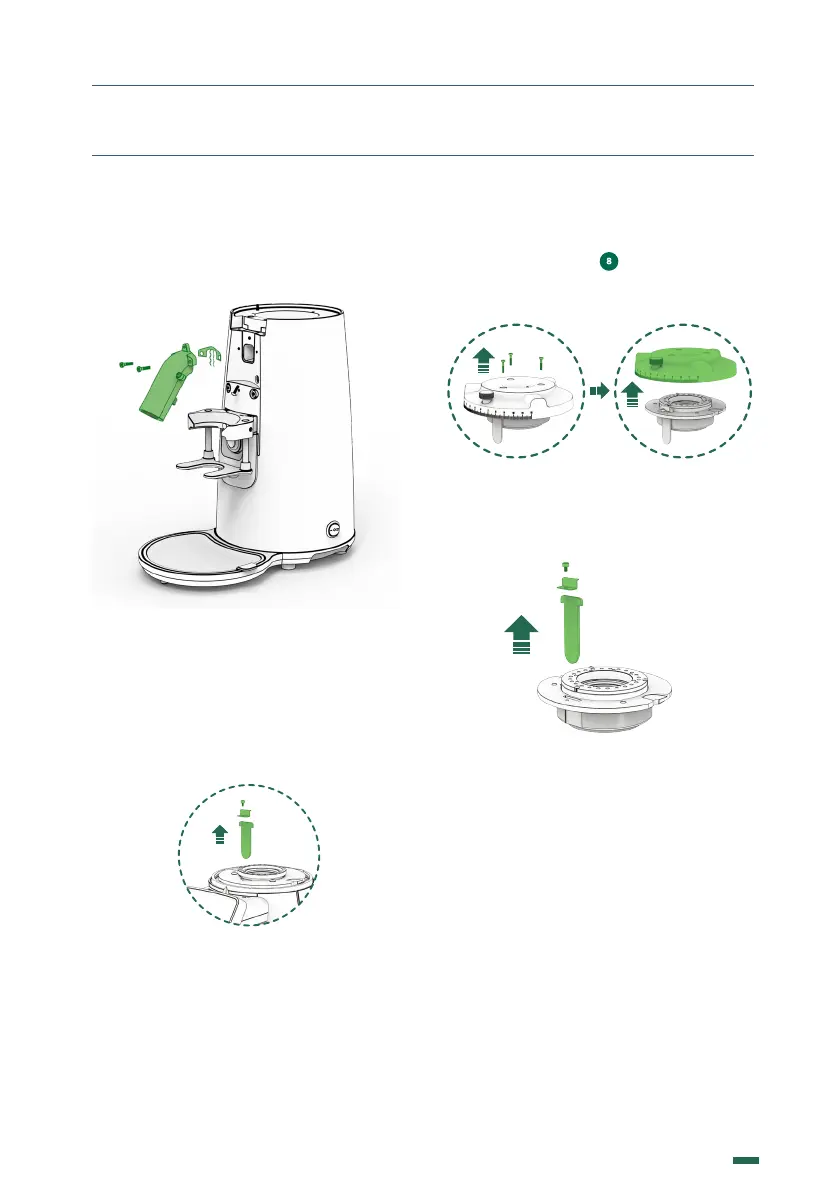

12.4.3. Using a #3 Hex Allen key, loosen
the two screws of the coffee exit chute and
remove it from the grinder body to gain
access to the metal (Fig. 25).
Fig. 25
If your grinder doesn’t have Lock Load
System keep following next steps if not skip
to 12.4.5.
12.4.4. After the point 12.3.7. use a #3 Hex
Allen key to untighten the screw that holds
the courtain, and pull up to release (Fig. 26).
Fig. 26
12.4.5. After the point 12.3.12. use a #3 Hex
Allen key to untighten the 3 screws that
holds the regulator ( ) to the top burrs
support (Fig. 27). Pull up the regulator from
the top burrs support (Fig. 28).
Fig. 27 Fig. 28
12.4.6. Use a #3 Hex Allen key to untighten
the screw that holds the courtain, and pull up
to release (Fig. 29).
