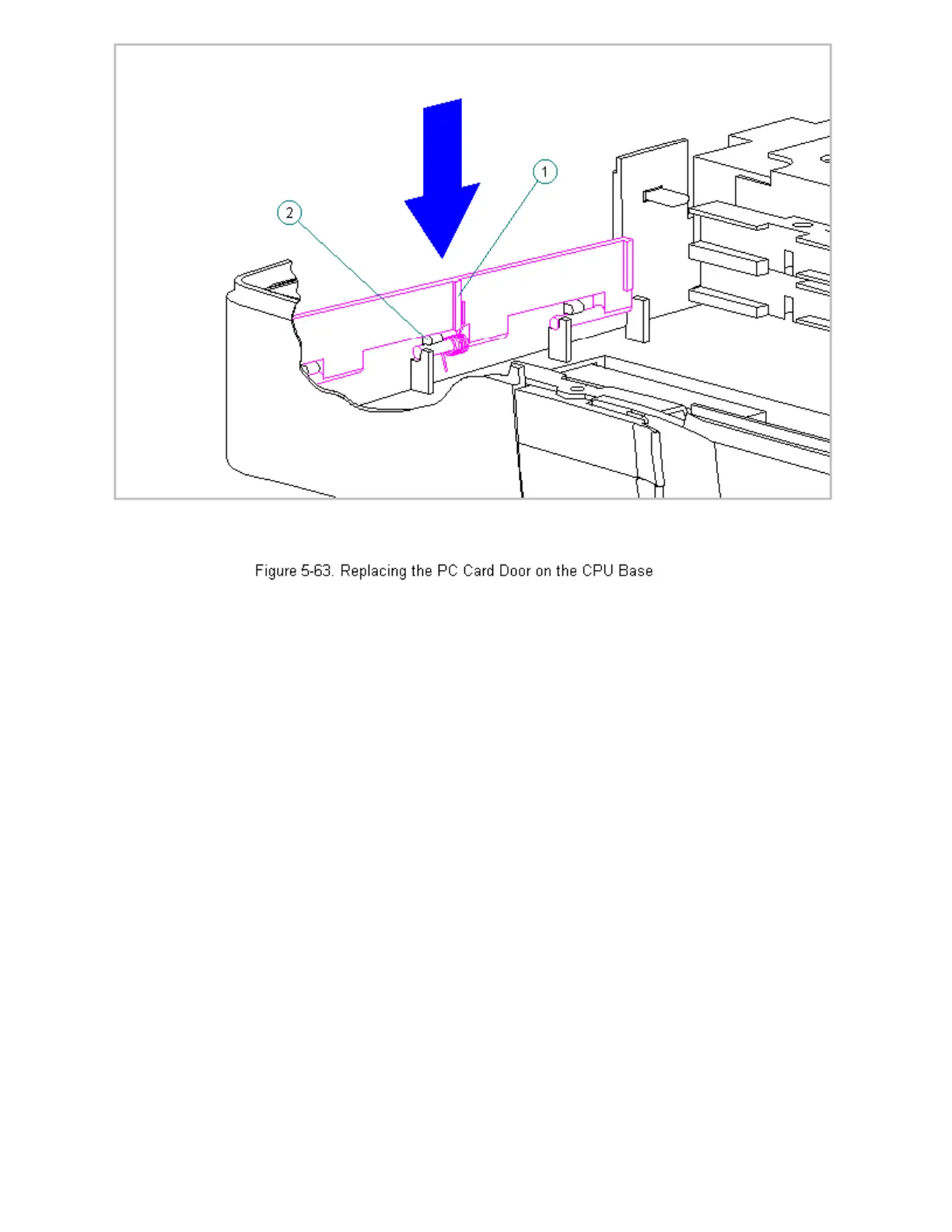

System Chassis
To remove the system chassis, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Remove the handle bracket on either side of the computer (Section 5.4).
3. Remove the tilt feet on either side of the computer (Section 5.5).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
ensure that the display assembly is opened at a 90-degree angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
4. Remove the keyboard assembly (Section 5.7).
5. Remove the system board (Section 5.13).
6. Close the display.
7. Remove the four clutch screws from the rear of the system unit module
(Figure 5-64).
