7. Replace the battery pack and reconnect the AC power.
Diskette Drive
This section contains removal and replacement procedures for the following
diskette drive components:
o Diskette drive
o Diskette drive bracket
Removing the Diskette Drive
To remove the diskette drive, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
ensure that the display assembly is opened to a 90-degree angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
2. Remove the keyboard assembly (Section 5.7).

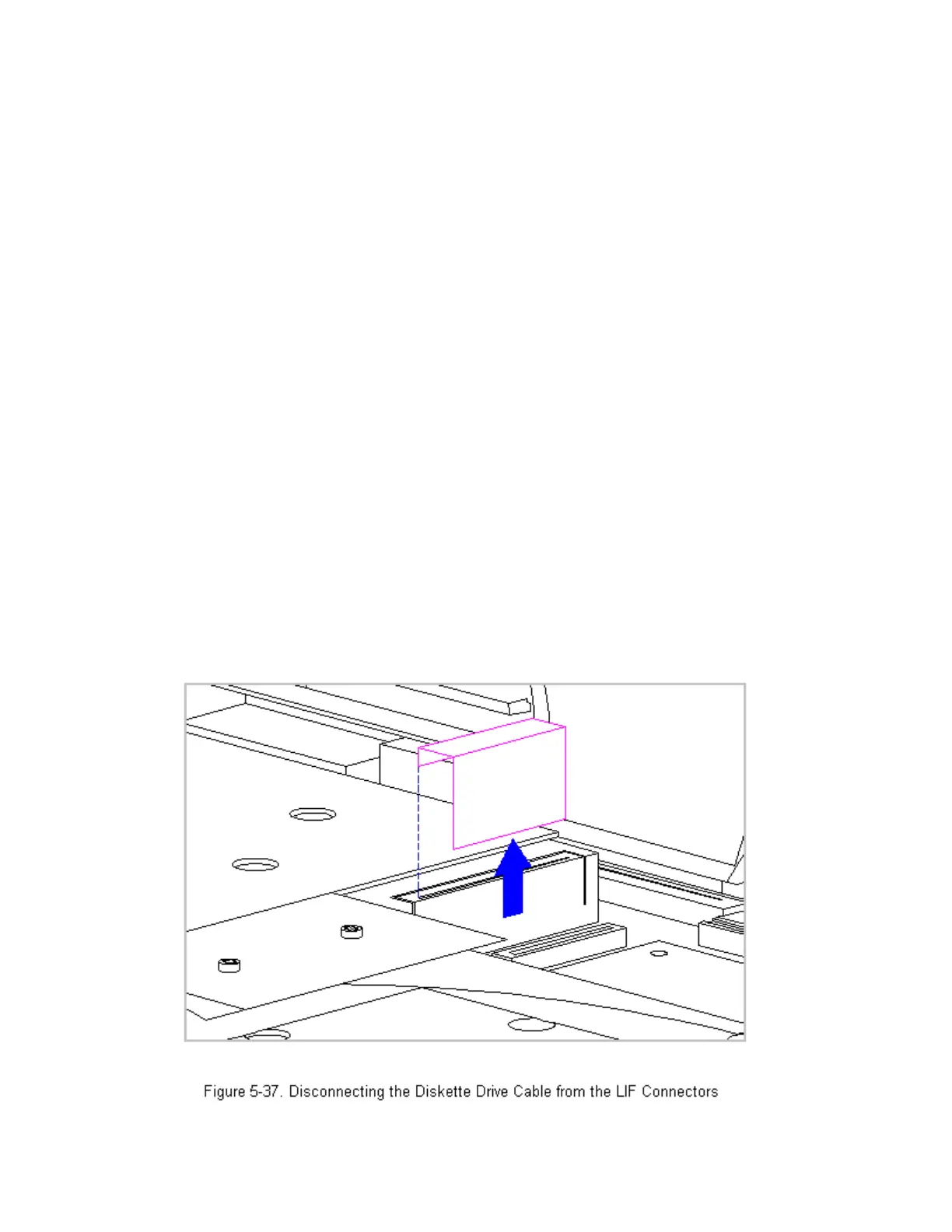

3. Disconnect the diskette drive cable from the LIF connectors on the
diskette drive and the system board (Figure 5-37).
To Next Page
