Handle Bracket
This procedure is necessary if replacing the handle bracket or if
separating the display assembly from the system unit module.
Removing the Handle Bracket
To remove the handle bracket, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
2. Close the computer and turn it topside down.

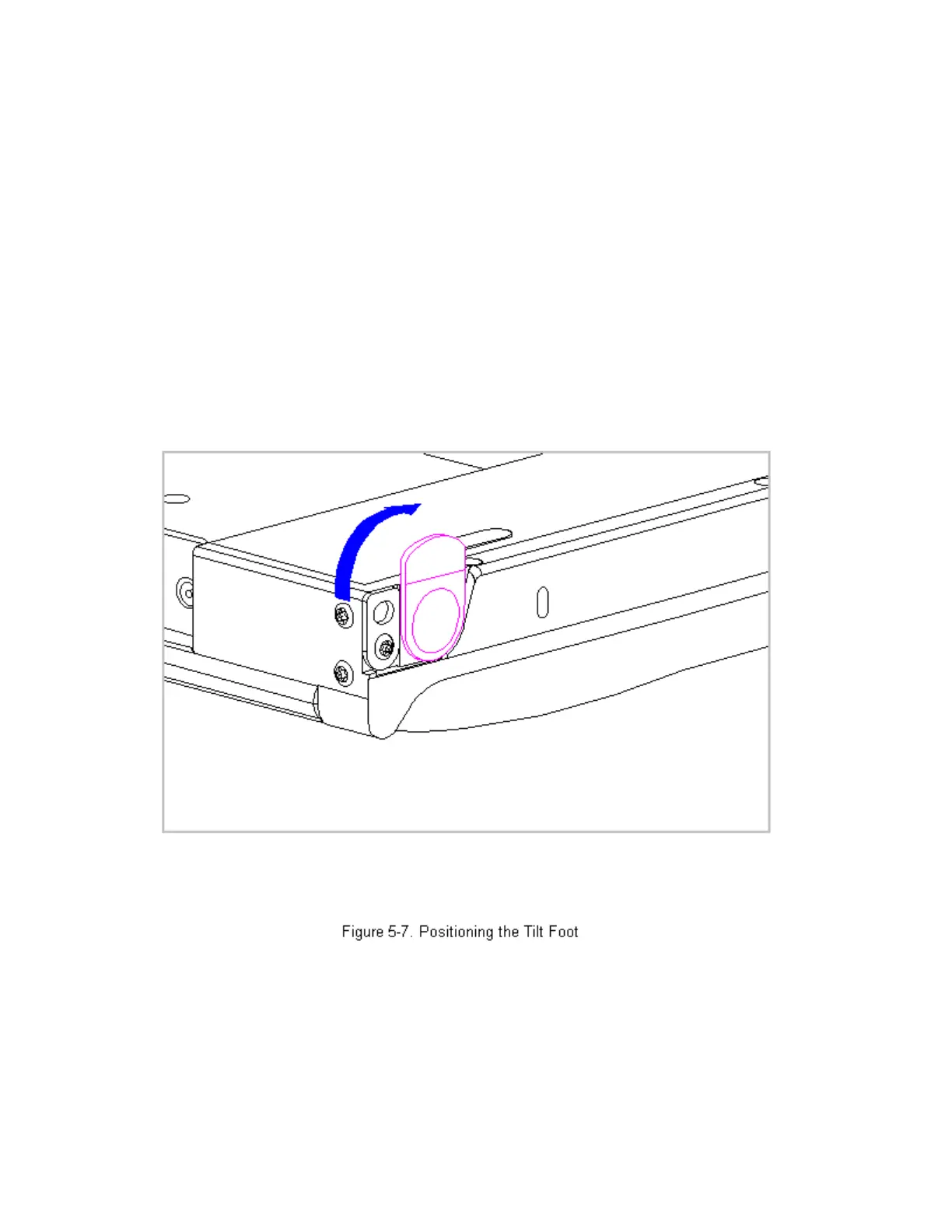

3. Move the tilt foot toward the front of the computer, exposing the
handle bracket screw on either side of the computer (Figure 5-7).
4. Remove the screw and washer from each handle bracket. These screws are
not reusable and must be discarded.
5. Remove the handle bracket (Figure 5-8).
