Appendix A - Connector Pin Assignments
This appendix contains the pin assignments for all external connectors.

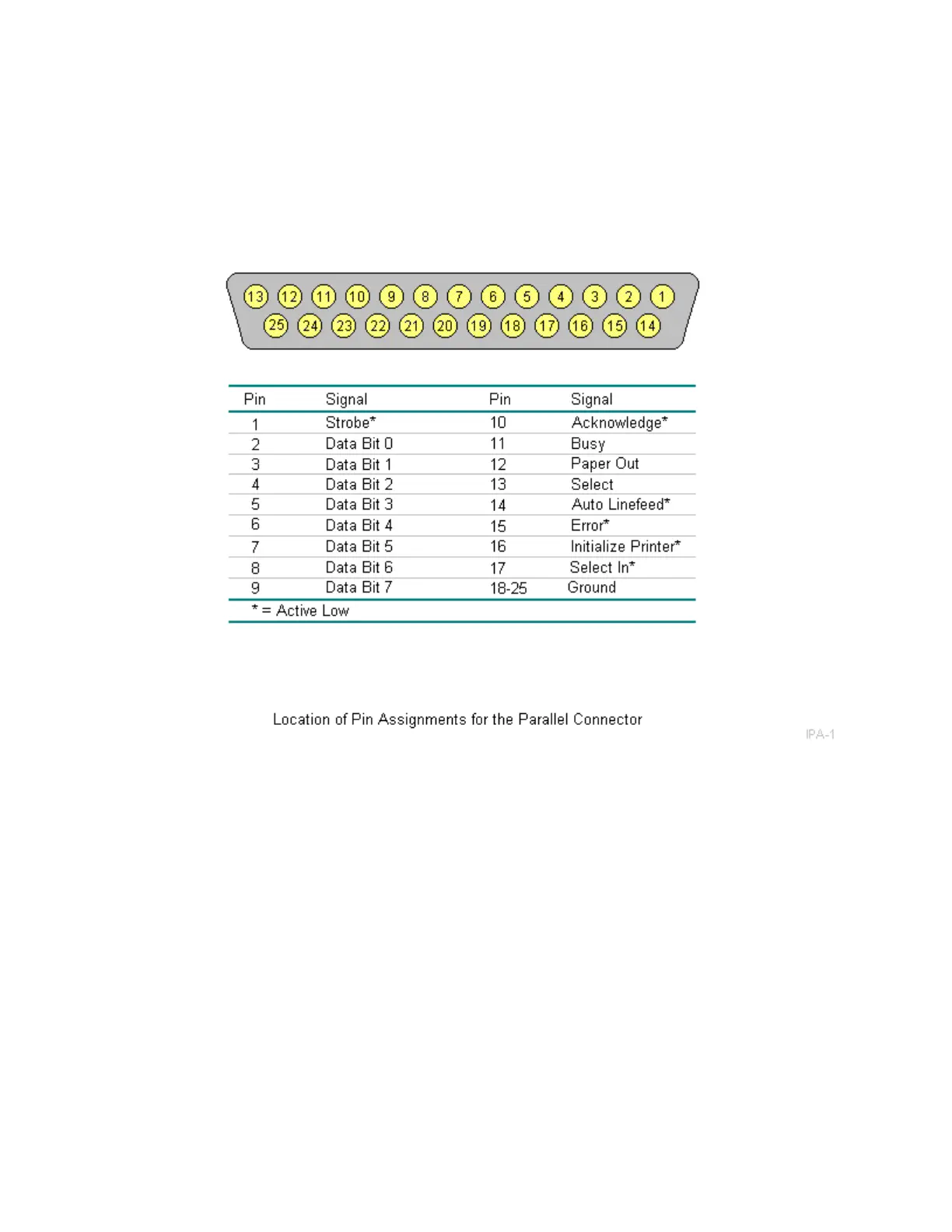

Table A-1. Parallel Connector
===========================================================================
Pin Signal
===========================================================================
1 Strobe *
2 Data Bit 0
3 Data Bit 1
4 Data Bit 2
5 Data Bit 3
6 Data Bit 4
7 Data Bit 5
8 Data Bit 6
9 Data Bit 7
