AC Adapter
The AC adapter supplies DC voltage to the system converter to operate
and/or charge the installed battery pack. The adapter provides sufficient
power to charge the battery pack in 1.5 hours or less with the system off,
or in 3.5 hours or less with the system on. The AC adapter power
specifications are presented in Chapter 7.
Automobile Adapter
The automobile adapter is used to charge the computer while traveling in
an automobile. The Auto Adapter power specifications are presented in
Chapter 7.
Nickel Metal Hydride Battery Pack
Nickel metal hydride battery packs are available for use with the Compaq
Armada 1100 Family of Personal Computers.
External Computer Components
The external computer components are shown and described in this section.

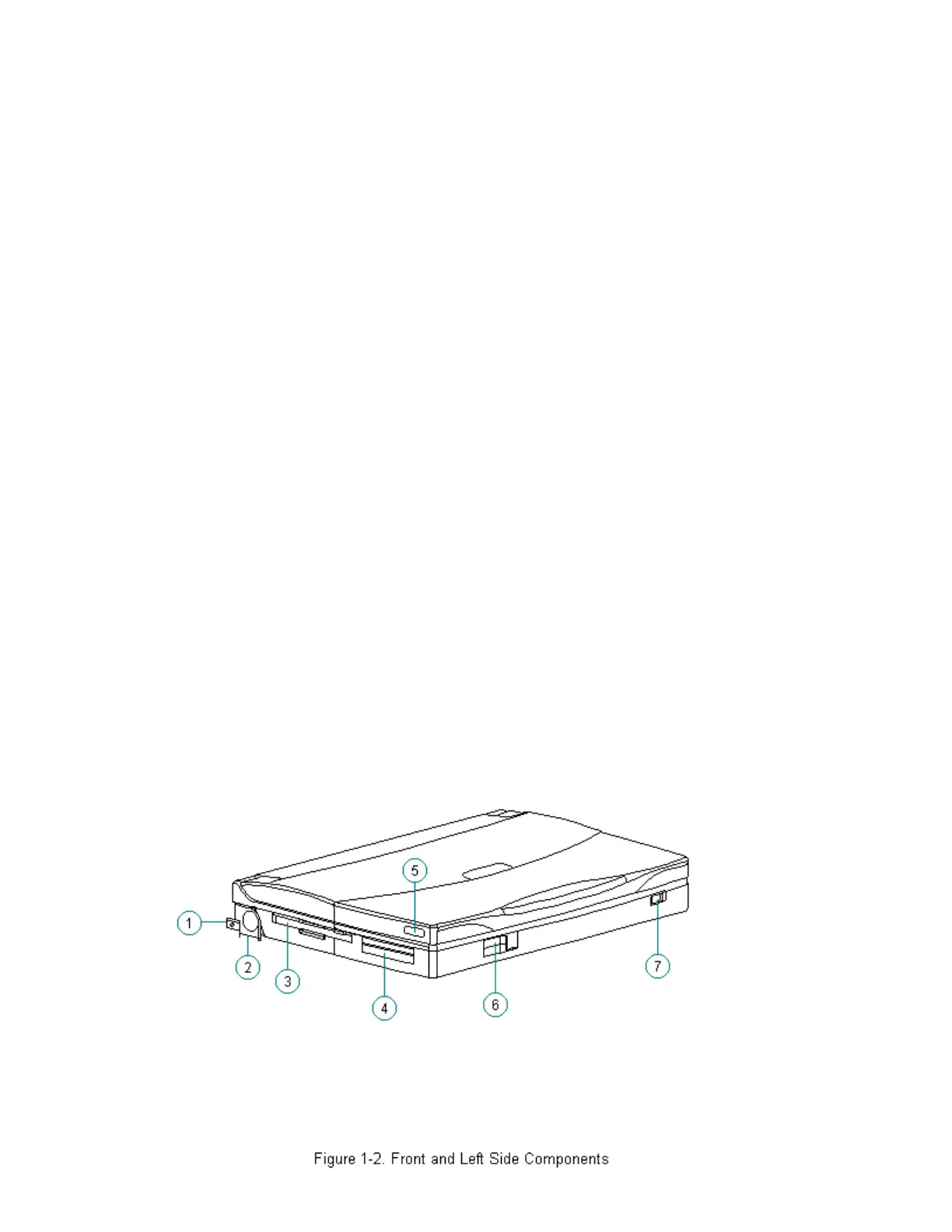

Front and Left Side Components
The front and left side external components are shown in the following
figure and described in this section:
[1] Handle bracket (2)
[2] Keyboard tilt feet
[3] Diskette drive
[4] PC Card slots
[5] Display latches (2)
[6] PC Card release levers
[7] Battery compartment button
