12. To replace the system chassis, reverse the previous steps, being sure
to achieve proper alignment by fitting the two slots in the chassis
over the two small steps on the CPU base.
CPU Base
This section provides removal and replacement procedures for the following
CPU base components:
o Battery shield clip
o Lock provision plate
o Anti-skid pads
Removing and Replacing the Battery Shield Clip
To remove the battery shield clip, follow these steps:
1. Turn the computer off and remove all external devices, including the
battery pack and the AC Adapter. Remove the diskette and PC Card, if
installed (Section 5.3).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The computer becomes top-heavy when the keyboard assembly is removed and
the display is opened. To prevent damage to the display and the computer,
ensure that the display assembly is opened at a 90-degree angle.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
2. Remove the keyboard assembly (Section 5.7).
3. Remove the battery spring clip.
4. Remove the battery shield clip located between the battery enclosure and

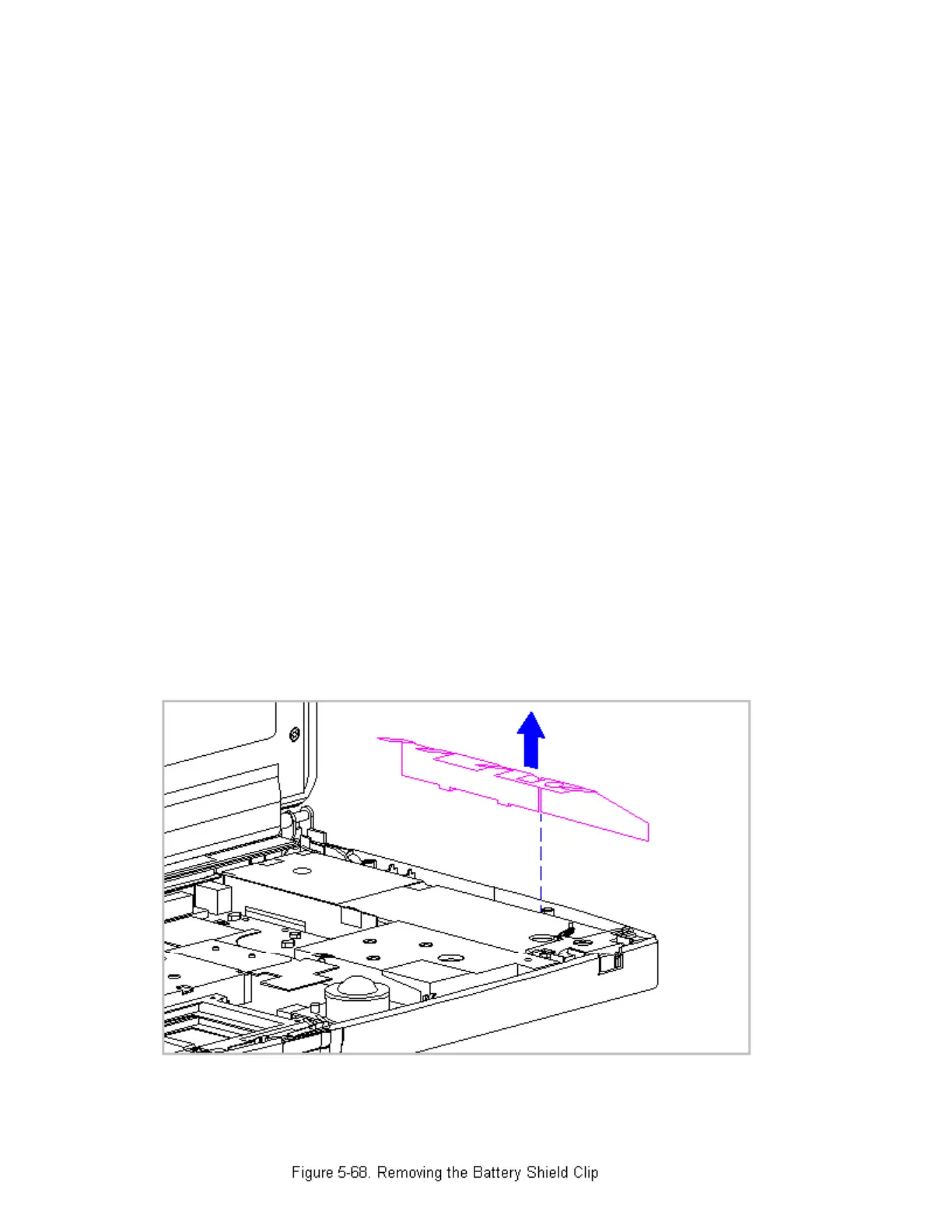

the right interior wall of the CPU base (Figure 5-68).
