Removing the Display Inverter Board from the CTFT (10.4 in) Display
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> WARNING <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Ensure that the power cord is disconnected from the electrical outlet and
that the battery pack is removed from the computer before beginning
replacement procedures. Failure to disconnect power could result in serious
injury or damage to the equipment.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

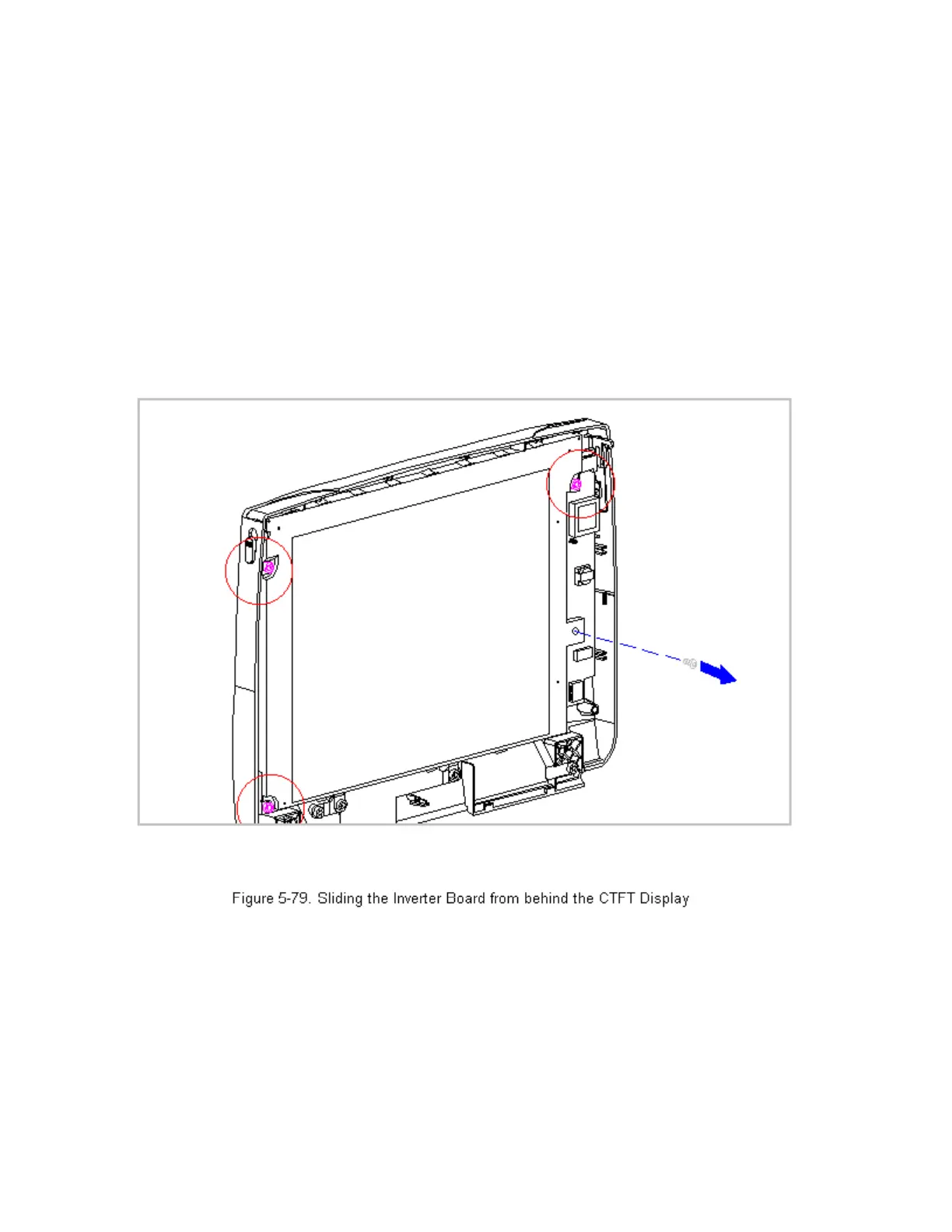

NOTE: The inverter board for the CTFT (10.4 in) display fits partially
behind the display. Loosen the screws (as indicated by the circles in
Figure 5-79) on the display to slide the inverter out from behind the
display.
