Compaq Armada 1100 - Page 142

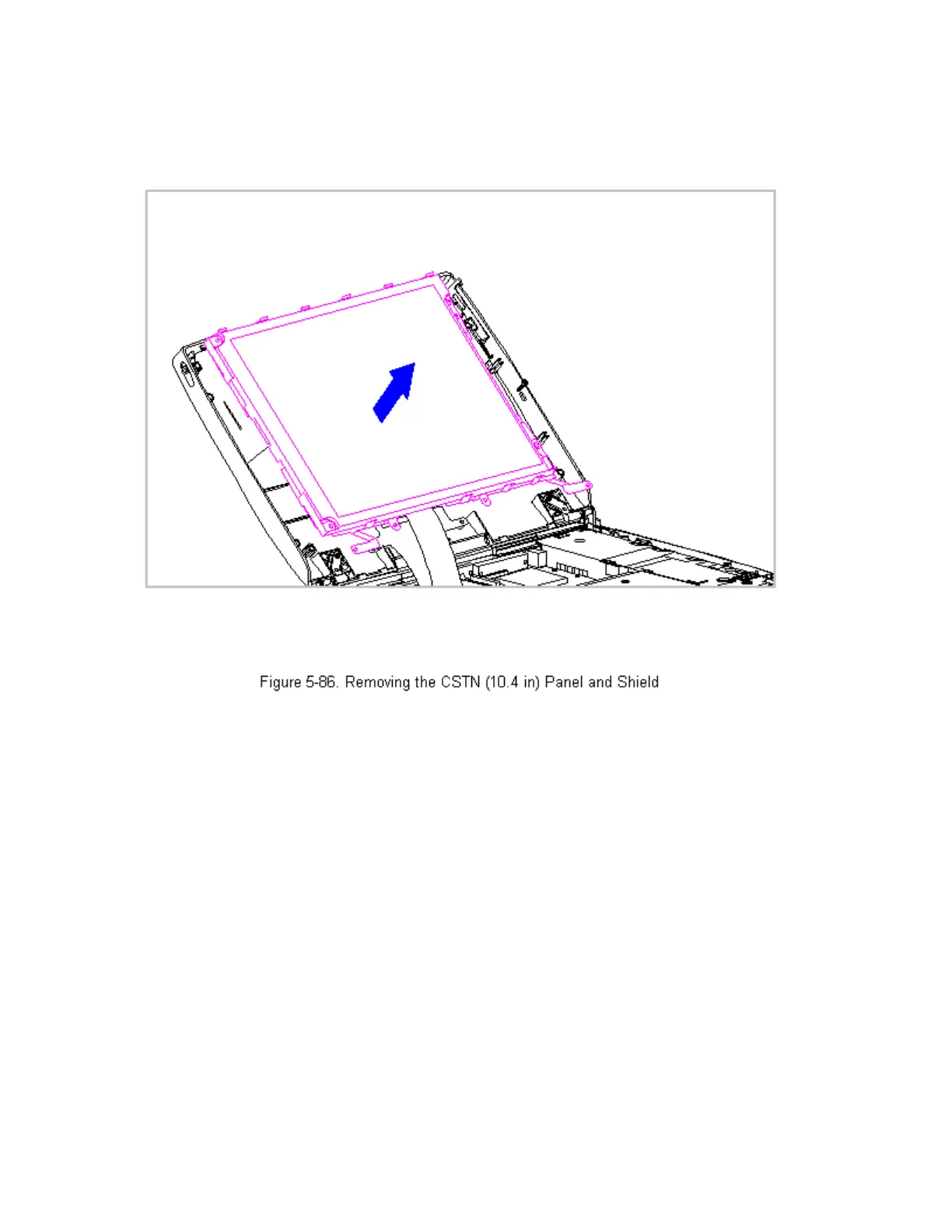

12. Carefully remove the CSTN (10.4 in) panel, display cable, and shield
from the display enclosure (Figure 5-86).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Excess flexing and bending of the shield tabs and fingers can damage the
shield.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
13. On the right side of the display shield, slide the two shield tabs
from the face of the CSTN (10.4 in) panel to the back (Figure 5-87).
