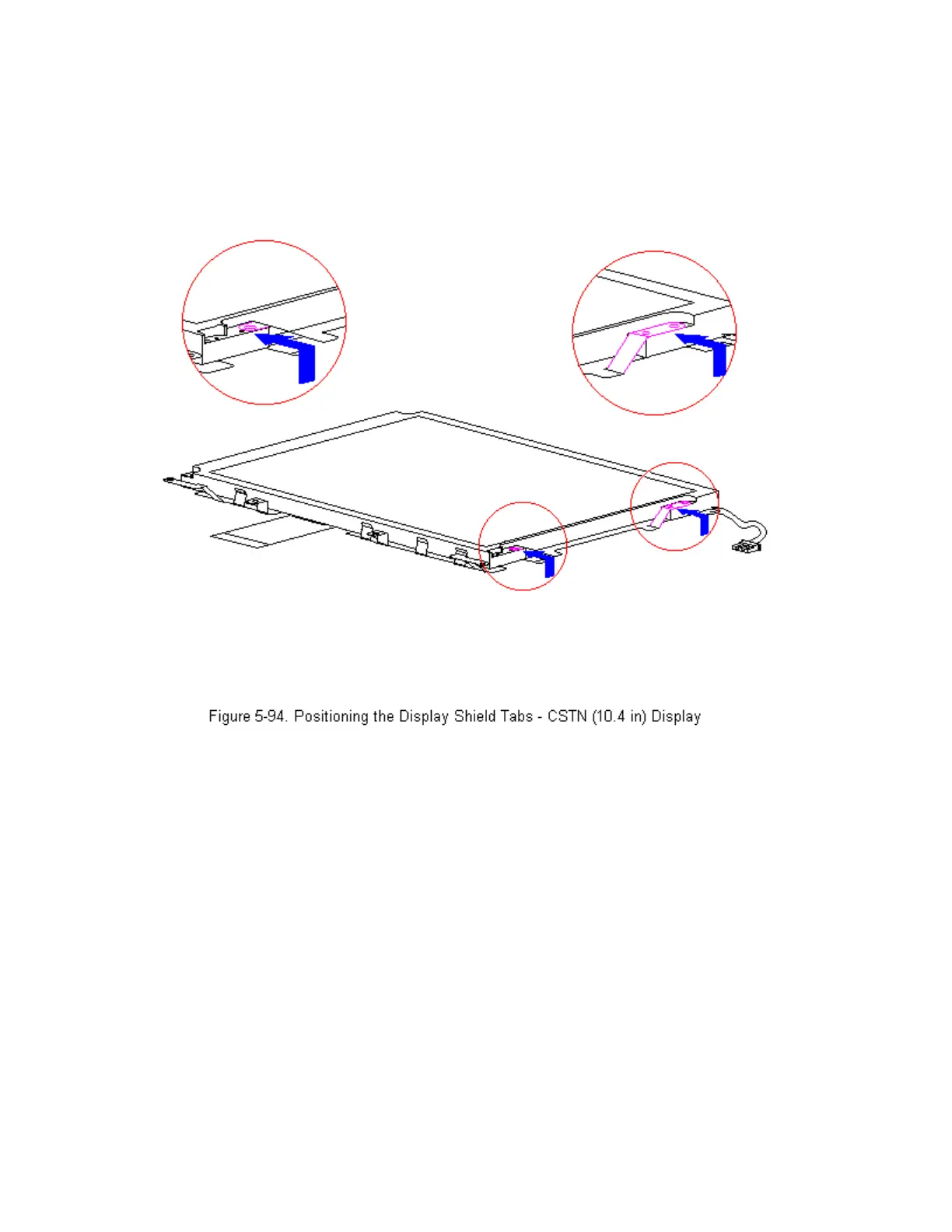

4. Place the display shield tabs in the indentations on the sides of the
CSTN (10.4 in) panel (Figure 5-94).
5. Align the CSTN (10.4 in) panel, display cable, and shield in the
display enclosure and replace the screws. Before replacing the screw in
the lower-left corner, route the XOVER board ground wire around the
boss at the bottom of the display enclosure. Hold the end of the wire
over the screw hole and install the screw, attaching the wire. Ensure
that the ZIF connector end of the display cable and the end of the
display ground cable are exposed at the bottom of the display enclosure
(Figure 5-95).
