17. Remove the LCD panel, the display cable, the shield, and the display
ground cable from the display enclosure as follows:
o If removing a CSTN (10.4 in) panel and shield, refer to Section
5.20.
o If removing a CTFT (10.4 in) panel and shield, refer to Section
5.21.

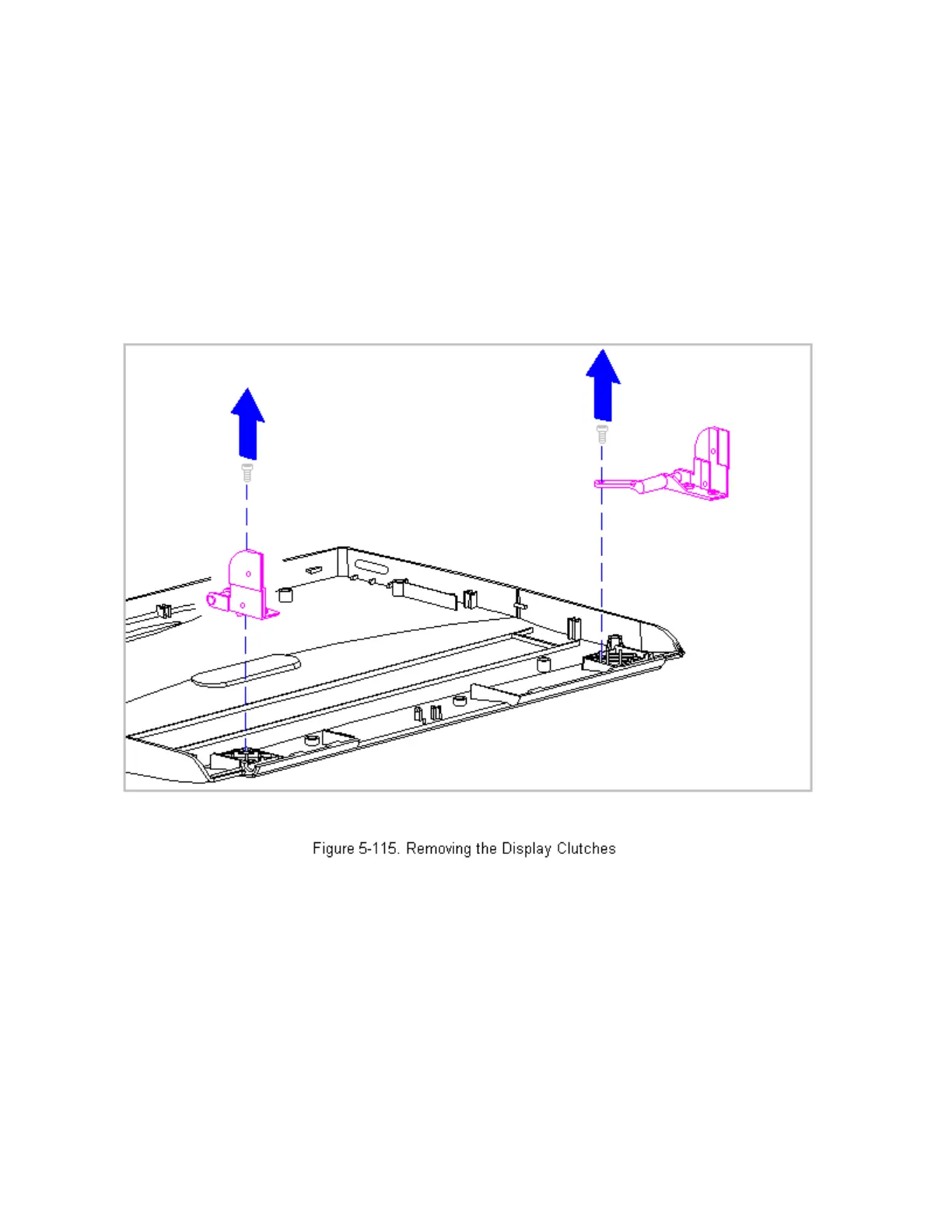

18. Remove the display clutches from the display enclosure (Figure 5-115).
19. Place the new display enclosure topside up.
20. Replace the display clutches on either side of the display enclosure
(Figure 5-116).
