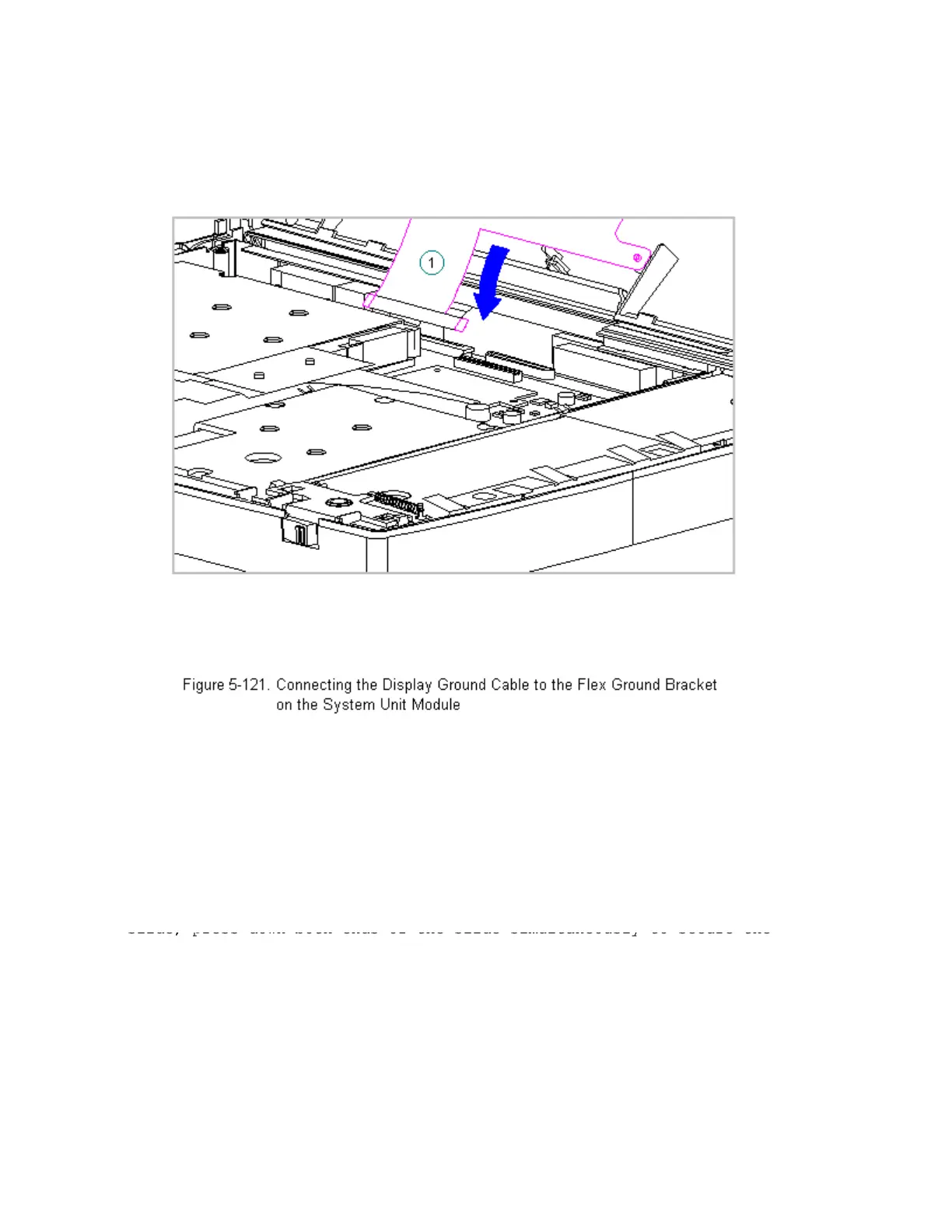

30. Connect the display ground cable [1] to the flex ground bracket above
the serial port connector between the system board and the system
chassis (Figure 5-121).
31. Carefully insert the end of the cable into the ZIF connector slide on
the system unit.
IMPORTANT: Ensure that the ZIF connector slide is in its fully upward
position and that it remains so while you are inserting the
cable into it. Before closing the slide, ensure that the cable
is fully seated (to the white insertion line) in the ZIF
connector.
32. While holding the end of the display cable inside the ZIF connector
slide, press down both ends of the slide simultaneously to secure the
slide,
press
cable in the ZIF connector (Figure 5-122).
down
both
ends
of
the
slide
simultaneously
to
secure
the
