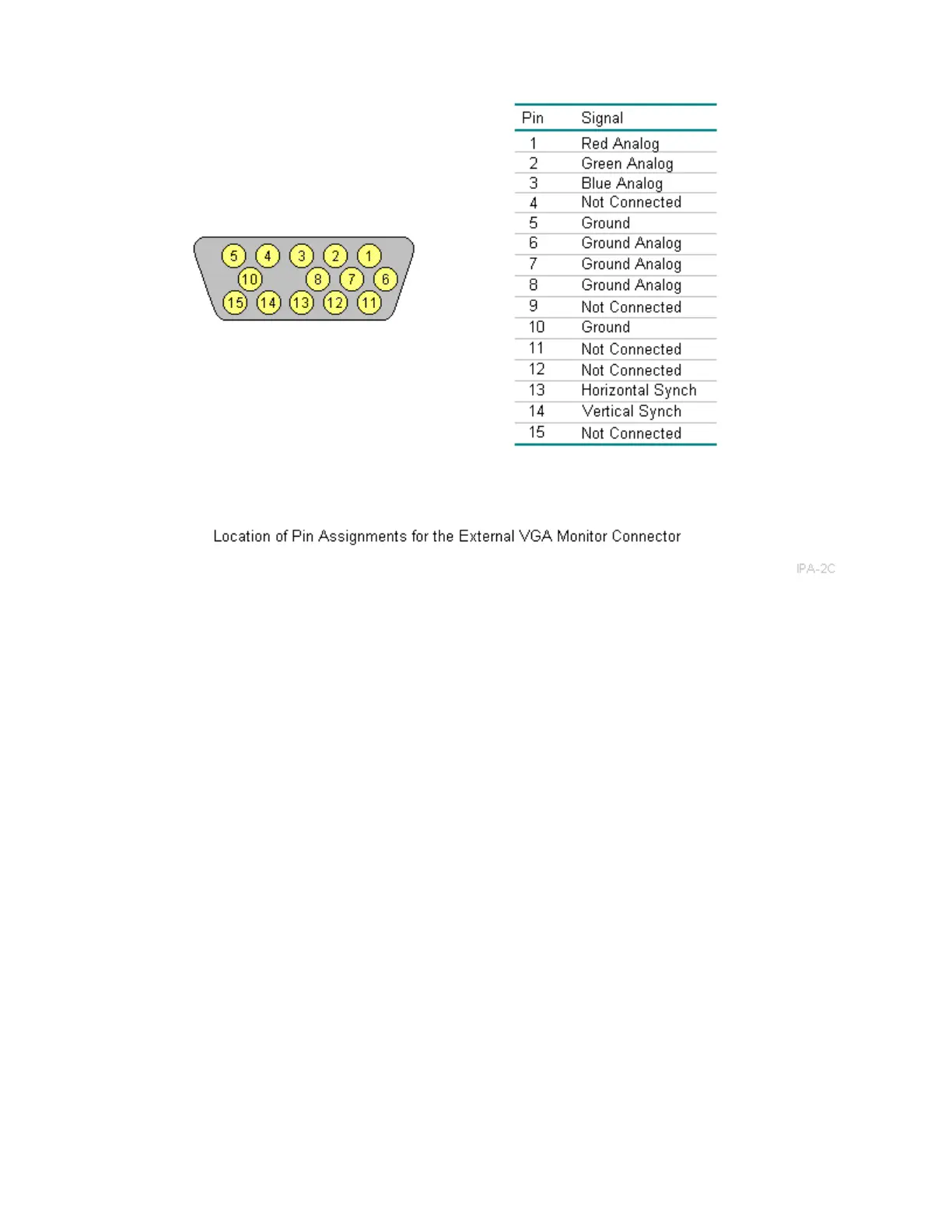

Table A-4. External VGA Monitor Connector

===========================================================================

Pin Signal

===========================================================================

1 Red Analog

2 Green Analog

3 Blue Analog

4 Not Connected

5 Ground

6 Ground Analog

7 Ground Analog

8 Ground Analog

9 Not Connected

10 Ground

11 Not Connected

12 Not Connected

13 Horizontal Synch

14 Vertical Synch

15 Not Connected

===========================================================================
