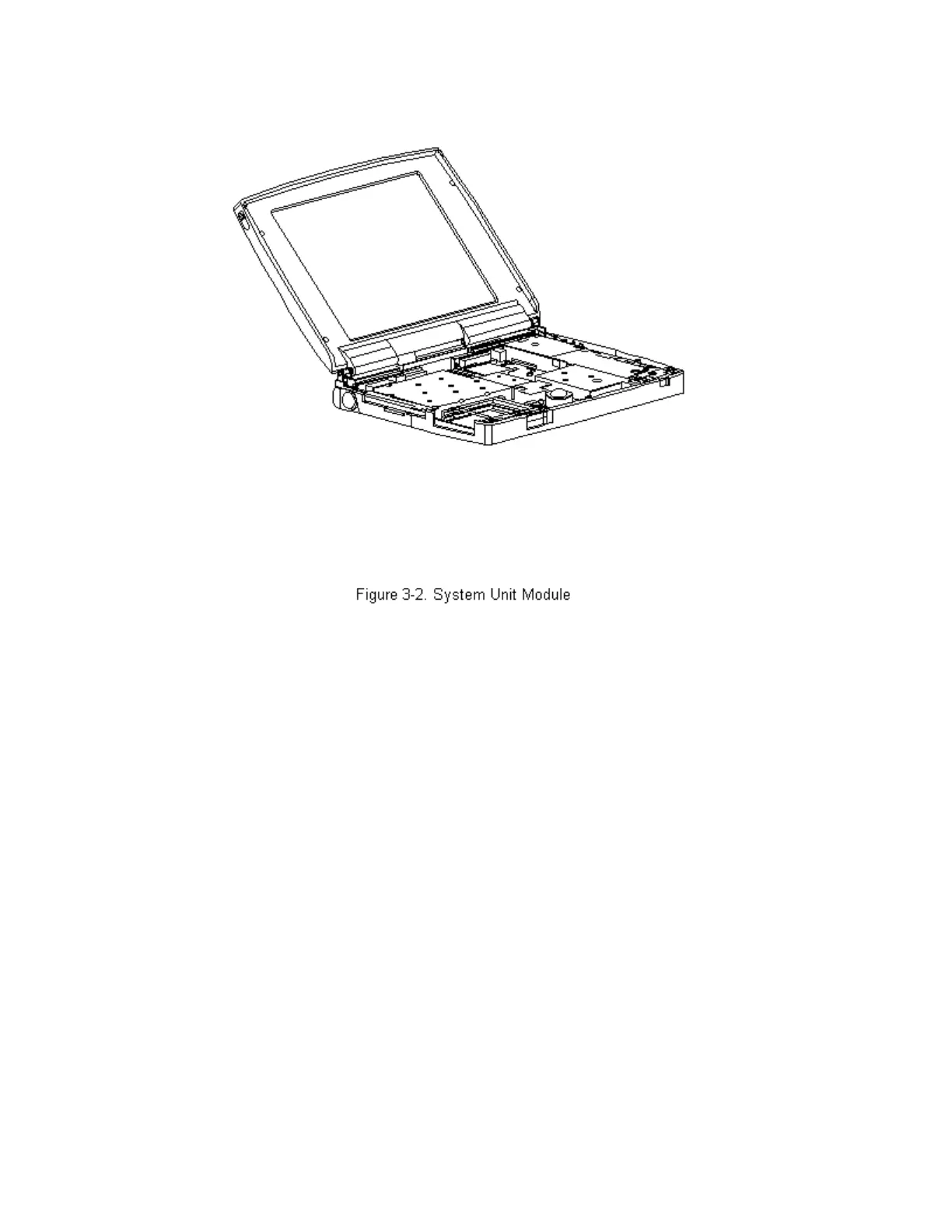

Display Assembly Overview
All display assemblies (Figure 3-3) include the following replaceable
parts:
o Bezel
o Enclosure latches
o Liquid crystal display (LCD) panel
o Shield
o Enclosure
o Display cable
o Display ground cable
o Inverter board
o Clutches
The display cable is a prefolded, flex cable that connects to the display
inverter board with a low insertion force (LIF) connector. The other end
of the display cable is exposed at the bottom of the display enclosure and
connects to the system board with a zero insertion force (ZIF) slide
connector. The cable connects to the display panel directly on the CTFT
model and through a crossover PCA on the CSTN models.
