4. To replace the memory compartment cover, reverse the previous steps.
Removing the Memory Expansion Board
To remove the memory expansion board, follow these steps:
1. Remove the memory compartment cover. Refer to "Removing and Replacing
the Memory Compartment Cover" in this section.

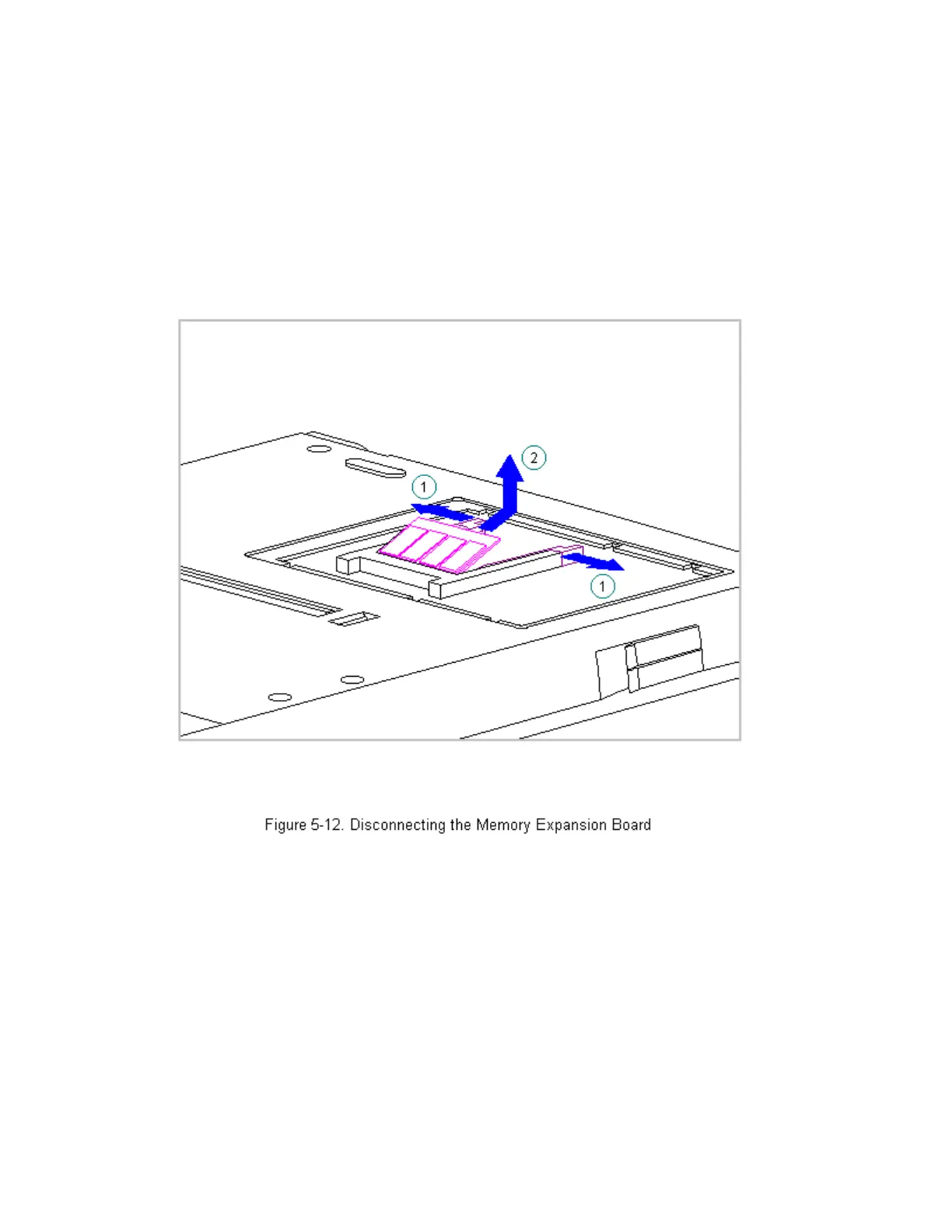

2. Press in on one of the small tabs holding the board in place [1], let
the board pop up, then pull it slightly up and out [2] (Figure 5-12).
Replacing the Memory Expansion Board
To replace the memory expansion board, follow these steps:
1. Angle in the board [1] (Figure 5-13).
2. Press down [2], so that the small tabs snap into place and hold the
board (Figure 5-13).
