Removing the Hard Drive Bracket
1. Remove the keyboard assembly (Section 5.7).
2. Remove the hard drive and bracket. Refer to "Removing the Hard Drive" in
this section.

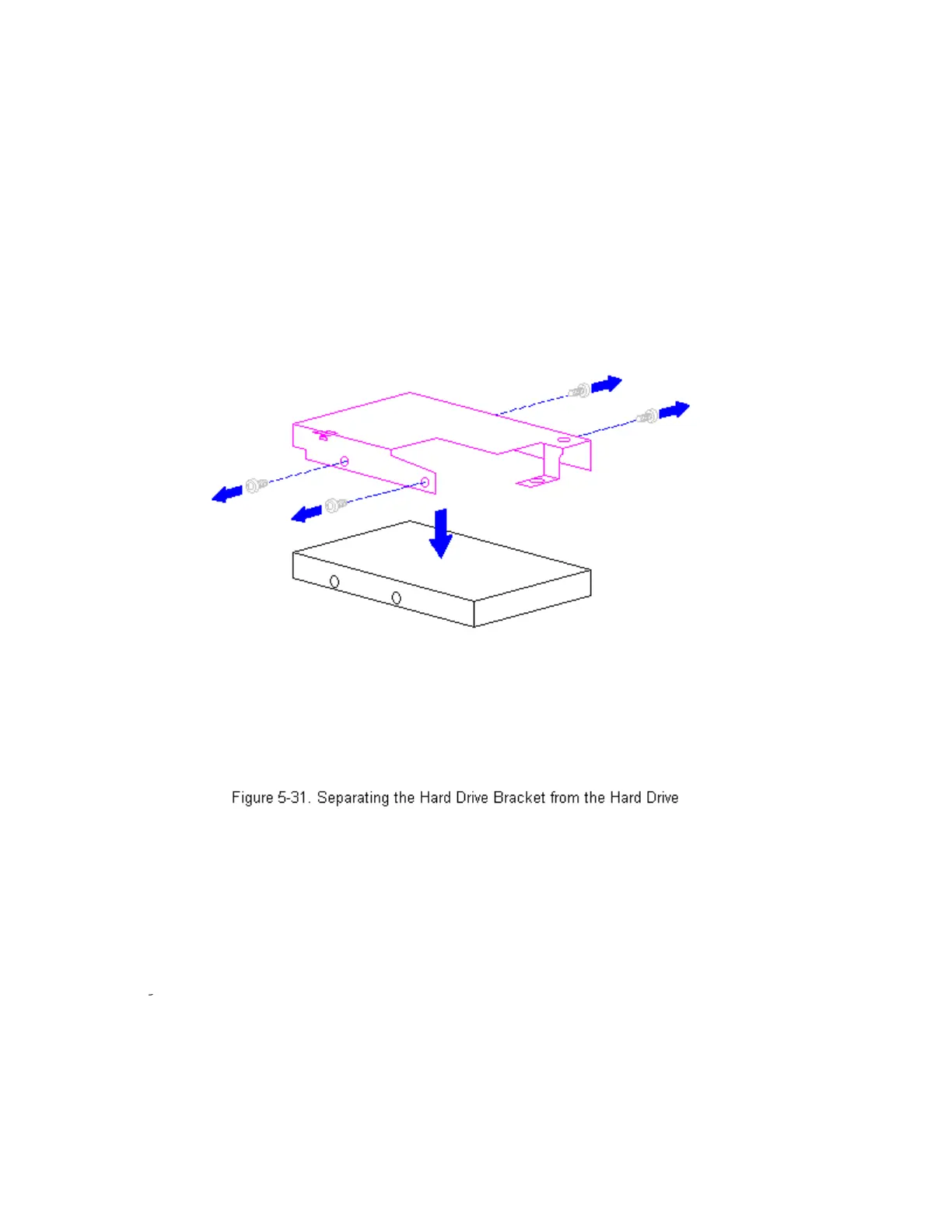

3. Remove the four screws from the sides of the hard drive bracket and
separate the bracket from the hard drive (Figure 5-31).
4. To replace the hard drive bracket, reverse the previous steps. For
proper alignment, replace the rear screws first.
Replacing the Hard Drive
To replace the hard drive, follow these steps:
1. Set the hard drive and bracket in place and slide it back to connector
(Fi
g
ure 5-32).
g
