Compaq Armada 1500 - Clutches

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7-28 Computer Removal and Replacement Procedures
7.12.3 Clutches
The two clutches act as hinges for the display assembly. To remove the clutches,
complete the following procedures:
1. Remove the clutch covers (Section 7.12.1).
2. Remove the display assembly (Section 7.12.2).
3. Remove the display screw covers and screws.

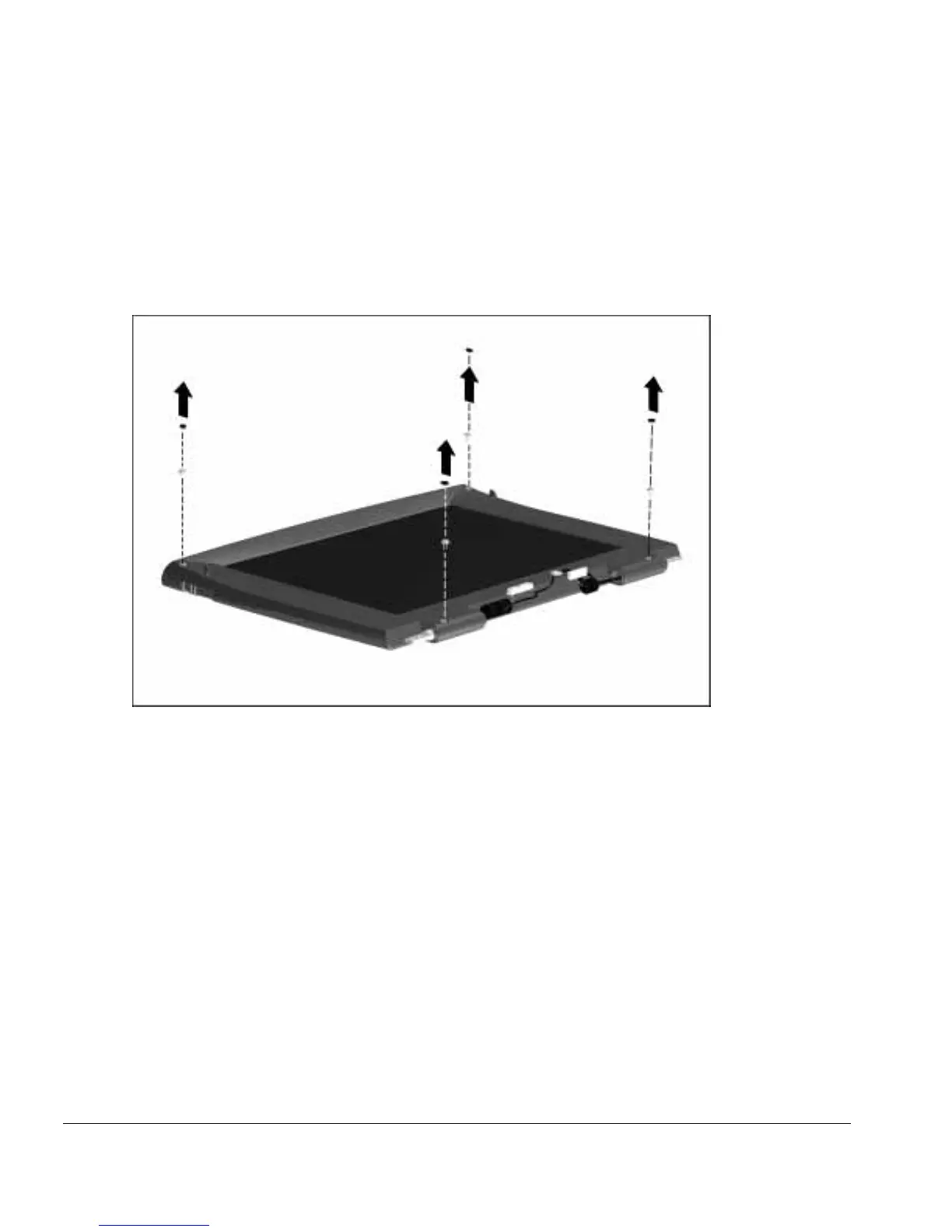

Figure 7-24. Removing the Display Screw Covers and Screws
