Compaq Armada 1500 Maintenance And Service Guide

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Computer Removal and Replacement Procedures 7-53
7.20 AC Power
To remove the AC power, complete the following procedures:
1. Disconnect the AC power and any external devices (Section 7.4.1).
2. Remove the battery pack (Section 7.4.3).
3. Remove the DualBay device (Section 7.4.4).
4. Remove any PC Cards (Section 7.4.5)
5. Remove the top cover assembly (Section 7.13).
6. Remove the system board (Section 7.19).
7. Remove two screws from the rear of the base enclosure 1 .
8. Remove two screws from the base enclosure 1 .
9. Lift out the AC power 2 .

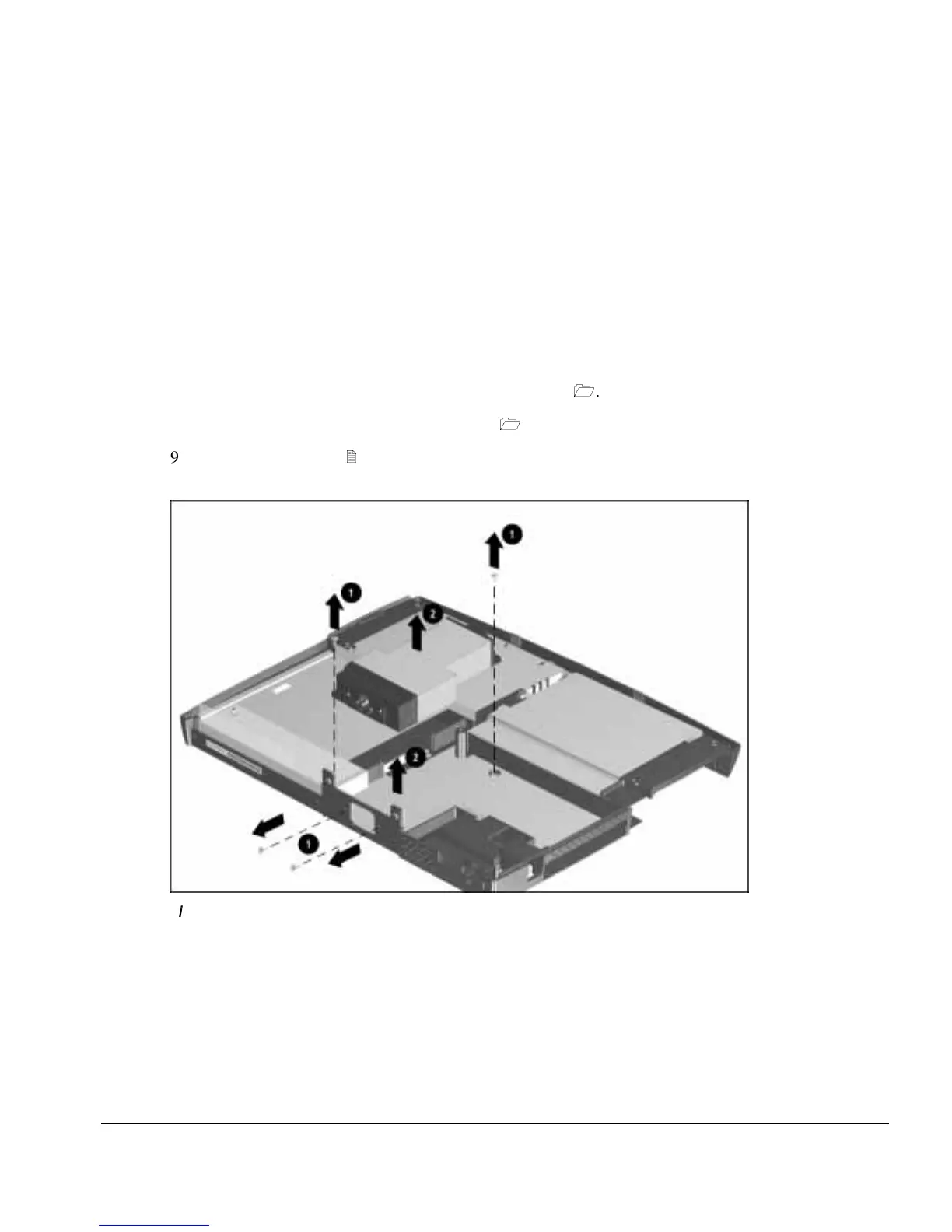

Figure 7-47. Removing the Integrated AC Power
