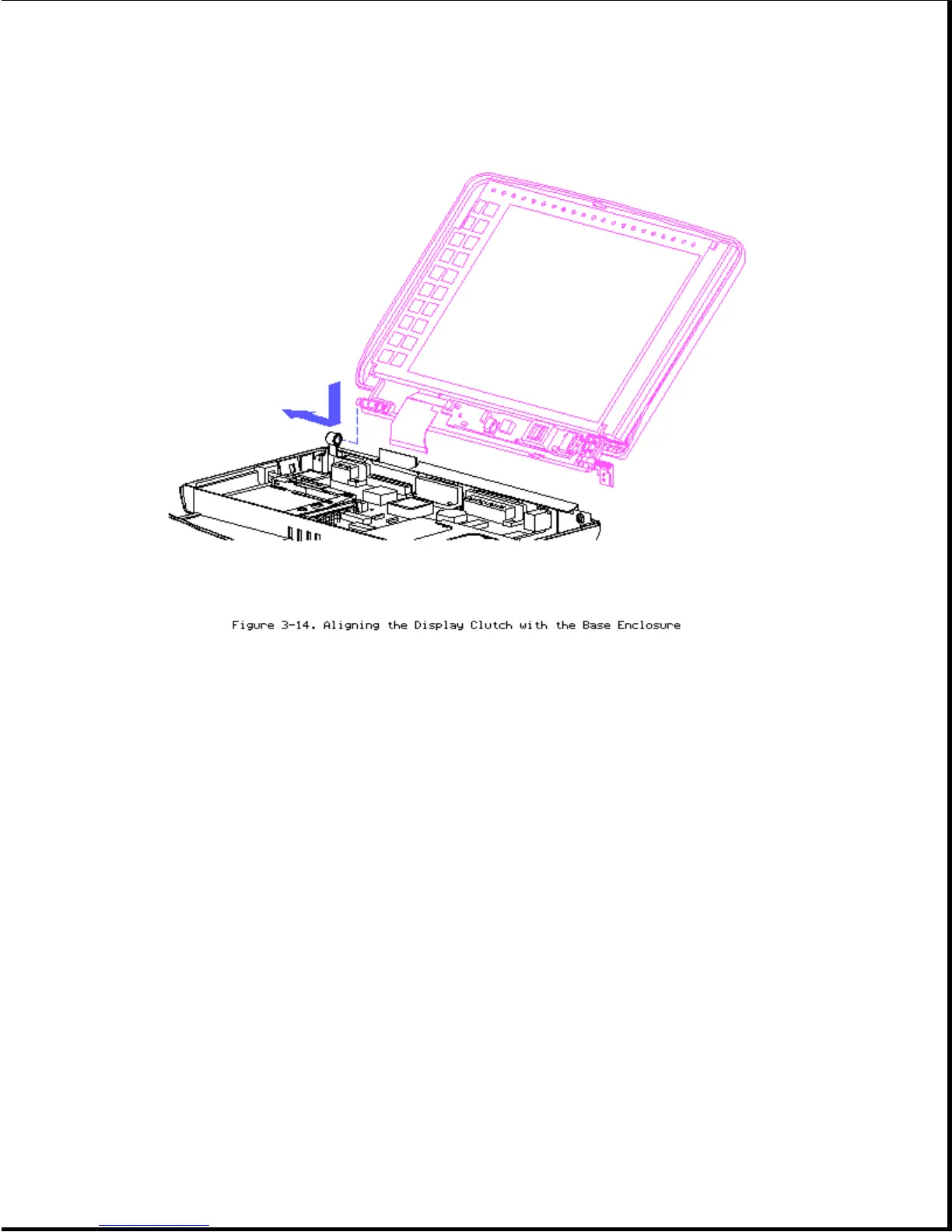

2. Reattach the screw to the base enclosure and clutch.
To reconnect the display cable to the system board, follow these steps
(Figure 3-15):
1. Insert the display cable into the ZIF connector and lightly press the
slider down to lock the connector.
2. Push the curved portion of the display cable inward with your finger,
remove your finger, close the computer, and immediately reopen.
The display cable should pop into place around the hinge forming an "S"
shape.
