F. Appendix F Compaq/Matrox Millennium G450 AGP Graphics
Card
F.1 INTRODUCTION
This appendix describes the Compaq/Matrox Millennium G450 AGP Graphics Card used in the
standard configuration on some models and also available as an option. This card (layout shown in
the following figure) installs in a system’s AGP slot. The Compaq/Matrox Millennium G450
graphics card (SP# 203626-001) provides high 2D performance and entry-level 3D capabilities.
This card features a dual-RAMDAC design for driving two analog displays.

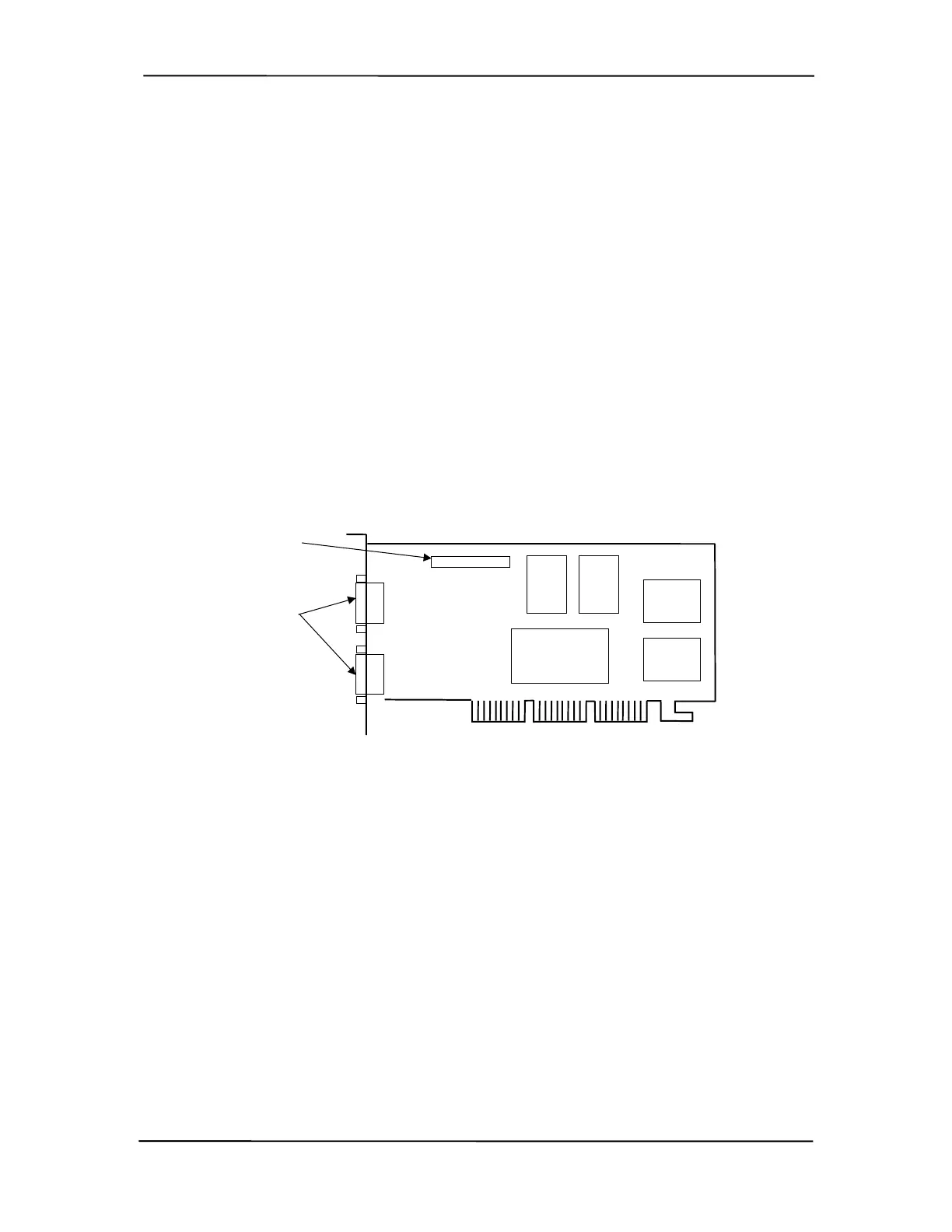

Figure F-1. Compaq/Matrox Millennium G450 AGP Graphics Card Layout (PCA# 202901-001)
This appendix covers the following subjects:
♦ Functional description (F.2) page F-2
♦ Display modes (F.3) page F-3
♦ Software support information (F.4) page F-4
♦ Monitor power management (F.5) page F-4
♦ Connectors (F.6) page F-5
