System Board Drive Connections

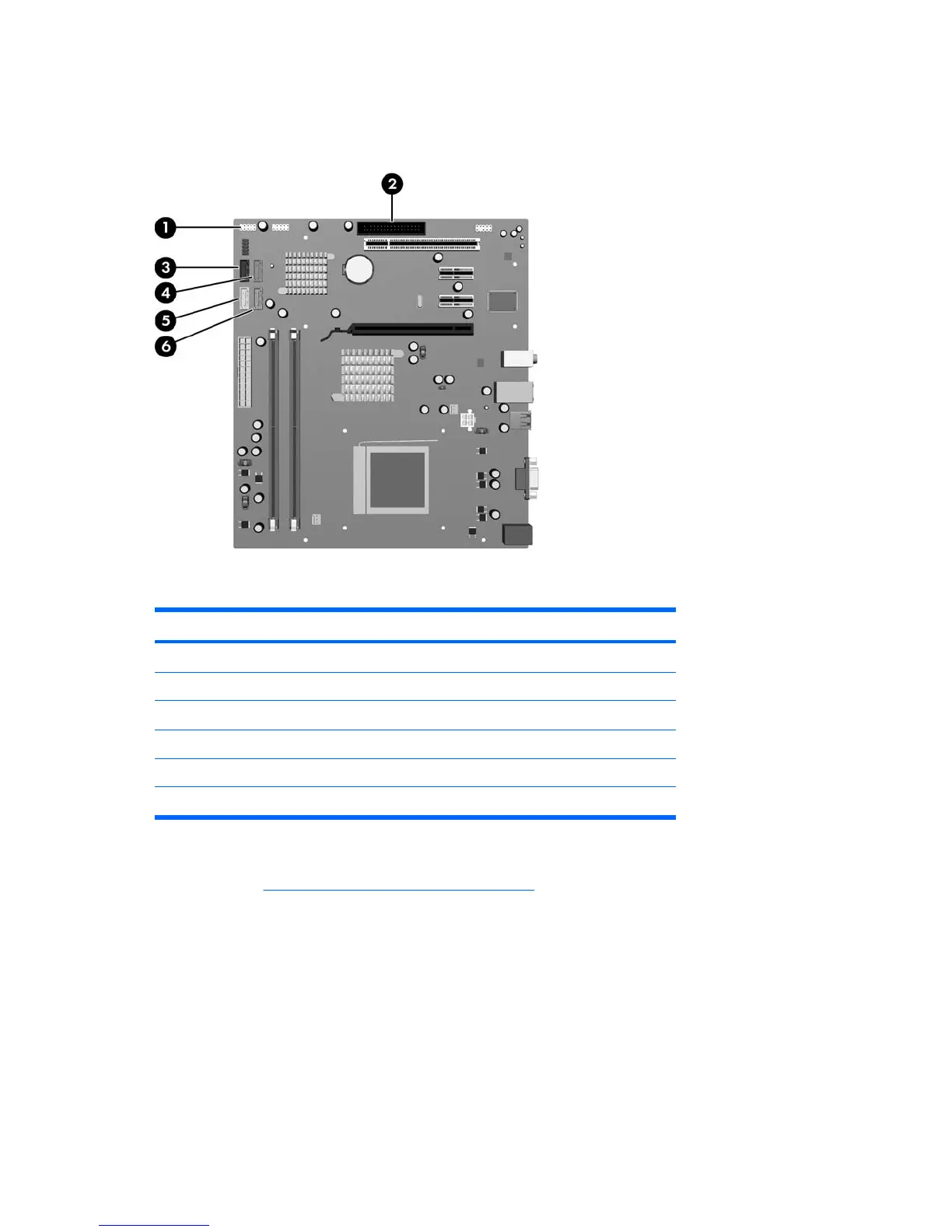

Refer to the following illustration and table to identify the system board drive connectors.
Table 6-3 System Board Drive Connections
No. System Board Connector System Board Label Color
1 Media Card Reader JUSB2 white
2 Diskette Drive FDD1 black
3 SATA0 SATA0 dark blue
4 SATA2 SATA2 light blue
5 SATA1 SATA1 white
6 SATA3 SATA3 orange
To verify the type, size, and capacity of the storage devices installed in the computer, run Computer
Setup. Refer to
Computer Setup (F10) Utility on page 3 for more information.
44 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis
