1–8 Maintenance and Service Guide
Product Description

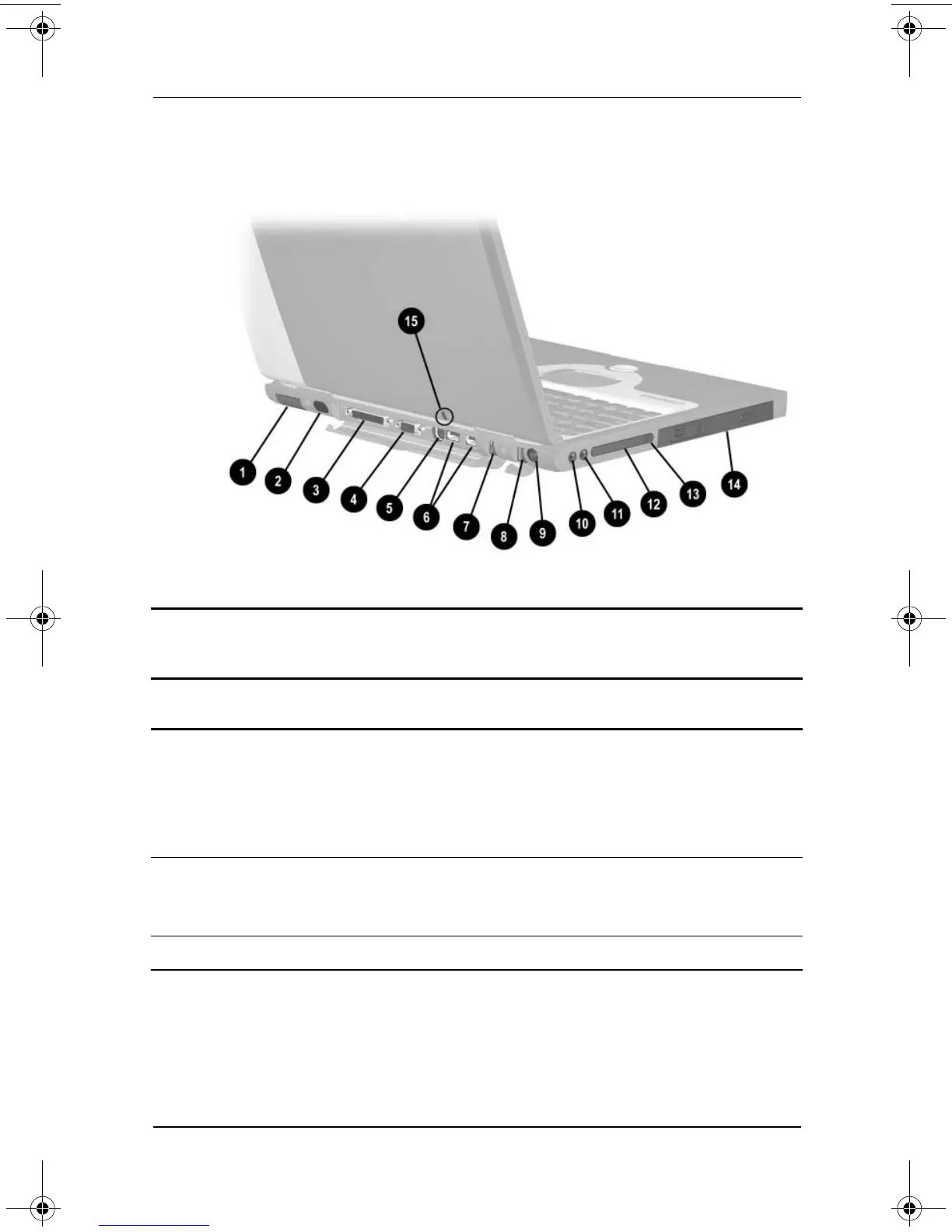

The computer rear panel and left side components are shown in
Figure 1-3 and described in Table 1-7.
Figure 1-3. Rear Panel and Left Side Components
Table 1-7
Rear Panel and Left Side Components
Item Component Function
1 Vent Allows airflow to cool internal components.
CAUTION: To prevent damage, the computer shuts down if an
overheating condition occurs. Do not block the cooling vent.
Avoid placing the computer on a blanket, rug, or other flexible
surface that may cover the vent area.
2 Infrared port Provides wireless communication between
the computer and another infrared-
equipped device using an infrared beam.
3 Parallel connector Connects a parallel device.
268135-002.book Page 8 Thursday, October 24, 2002 4:10 PM
