5–10 Maintenance and Service Guide
Removal and Replacement Procedures
1. Prepare the computer for disassembly (Section 5.3).
2. Turn the computer bottom side up with the rear panel facing
forward.
3. Remove the PM2.0 × 5.0 screw 1 that secures the memory
expansion compartment cover to the base enclosure
(Figure 5-8).
4. Lift the front edge of the cover and swing it back 2.
5. Remove the cover 3.

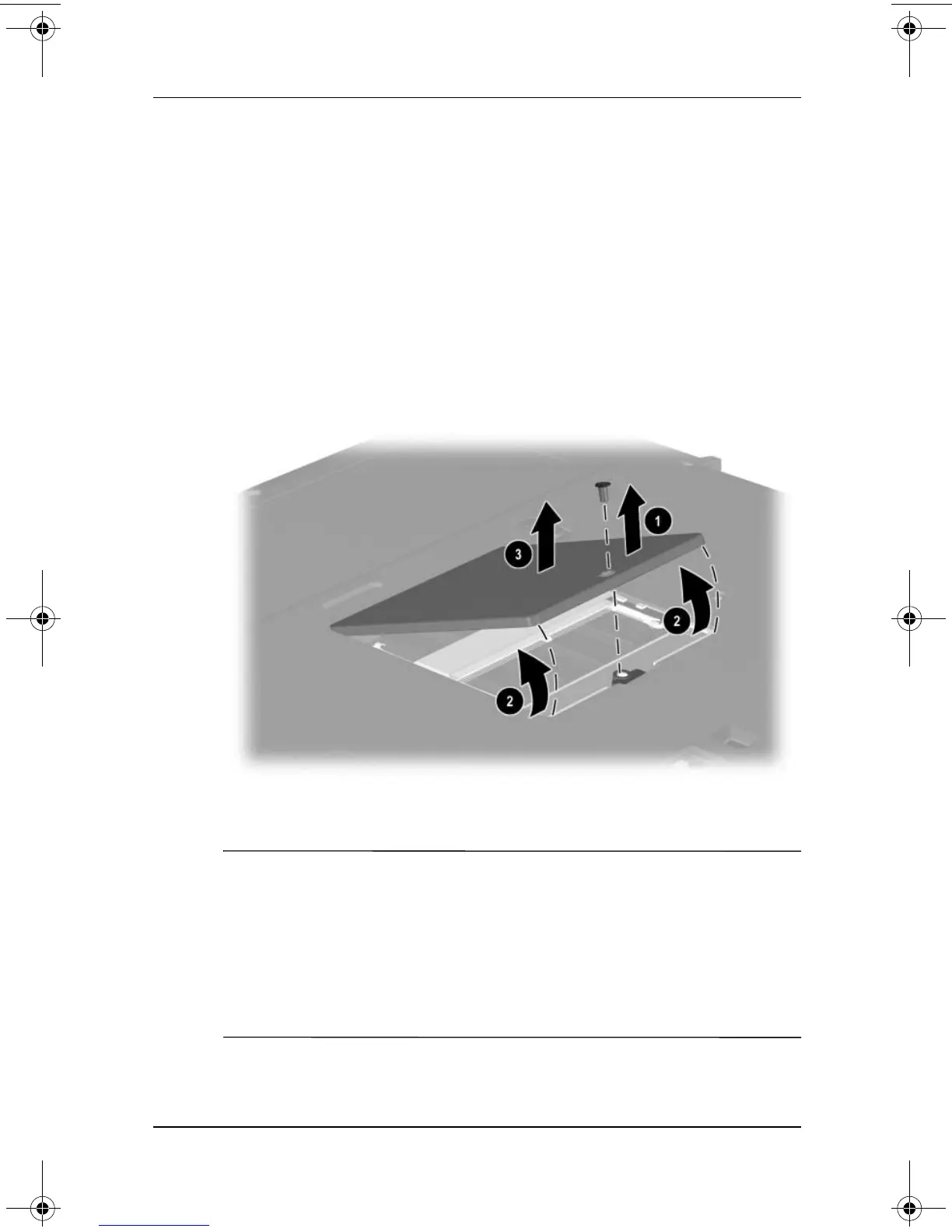

Figure 5-8. Removing the Memory Expansion
Compartment Cover
✎
Memory expansion compartment covers are available with silver
finish for Presario 2800 models and carbon finish for Evo
Notebook N800c, N800v, and N800w models. These covers are
included in the Miscellaneous Plastics/Hardware Kit, spare part
number 285261-001 for Presario 2800 models, and spare part
number 286868-001 for Evo Notebook N800c, N800v, and
N800w models.
