Compaq Evo N800c Series Maintenance And Service Guide

Removal and Replacement Procedures
Maintenance and Service Guide 5–11
6. Spread the memory expansion slot retaining tabs to release
the memory expansion board 1. The board tilts up at a
45-degree angle (Figure 5-9).
7. Remove the board by pulling it away from the connector at a
45-degree angle 2.

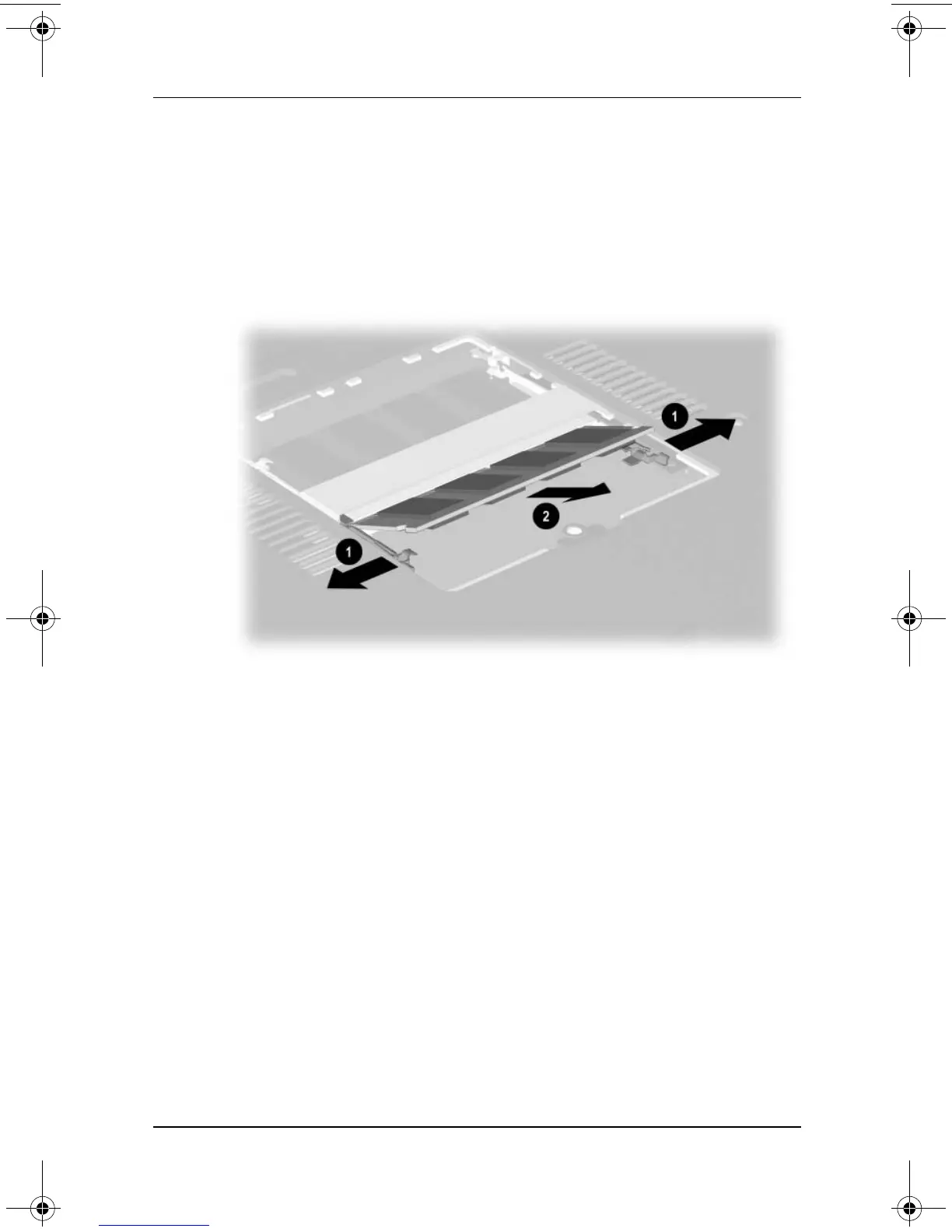

Figure 5-9. Removing a Memory Expansion Board
Reverse the above procedure to install a memory
expansion board.
268135-002.book Page 11 Thursday, October 24, 2002 4:10 PM
