Compaq LTE 5100 - Page 146

5.5.1 CPU Cover Assembly
To remove and replace the CPU cover assembly, complete the following steps:
1. Prepare the computer for disassembly as described in Section 5.3.

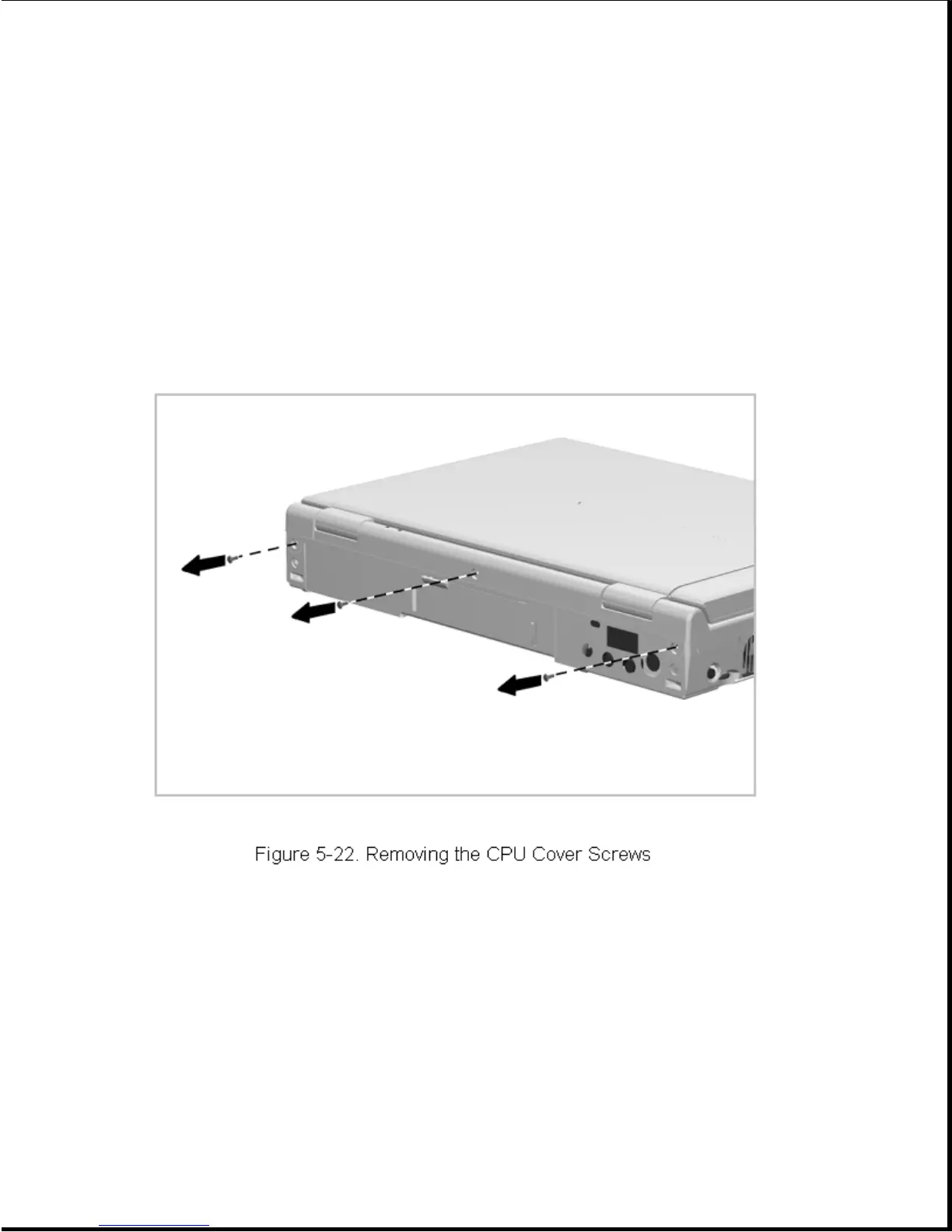

2. Remove the three screws from the back of the computer (Figure 5-22).
3. Open the display panel and tilt the display panel all the way back
(Figure 5-23).
