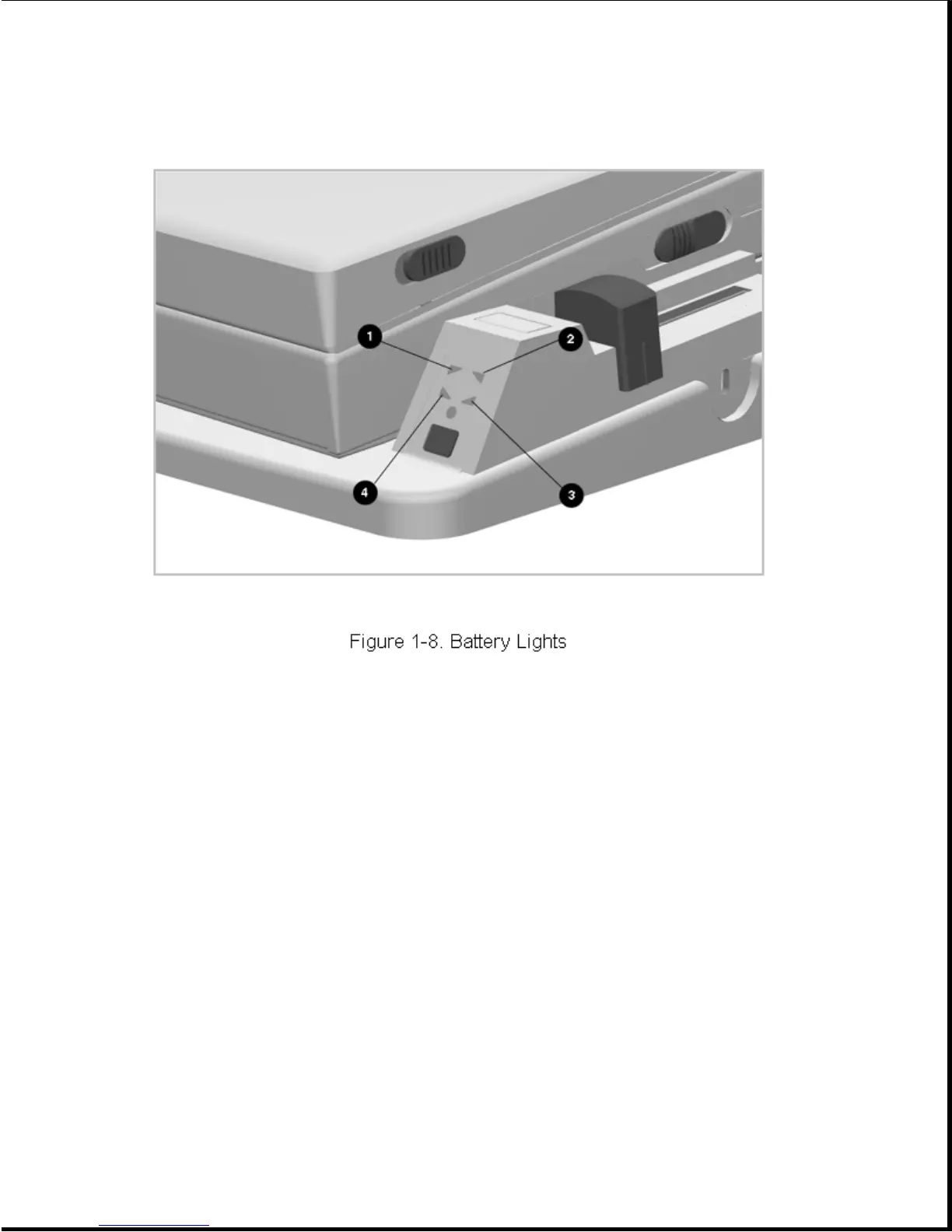

Table 1-11. Battery Lights
===========================================================================
Index Function Description
===========================================================================
1 Computer MultiBay battery Status of battery pack in computer
light MultiBay
2 Computer battery light Status of battery pack in computer
battery compartment
3 MultiBay II battery light Status of battery in MultiBay on
the right side of the expansion
base
4 MultiBay I battery light Status of battery in MultiBay on
the left side of the expansion
base
===========================================================================
1.7.6 MultiBays with Ejectors
Each expansion base has two MultiBays. Each MultiBay is removable as a
unit with its ejector mechanism. The MultiBay is held to the expansion
base cover with three screws. The MultiBays in the expansion base
accommodate the same drives that are used by the computer and can be used
