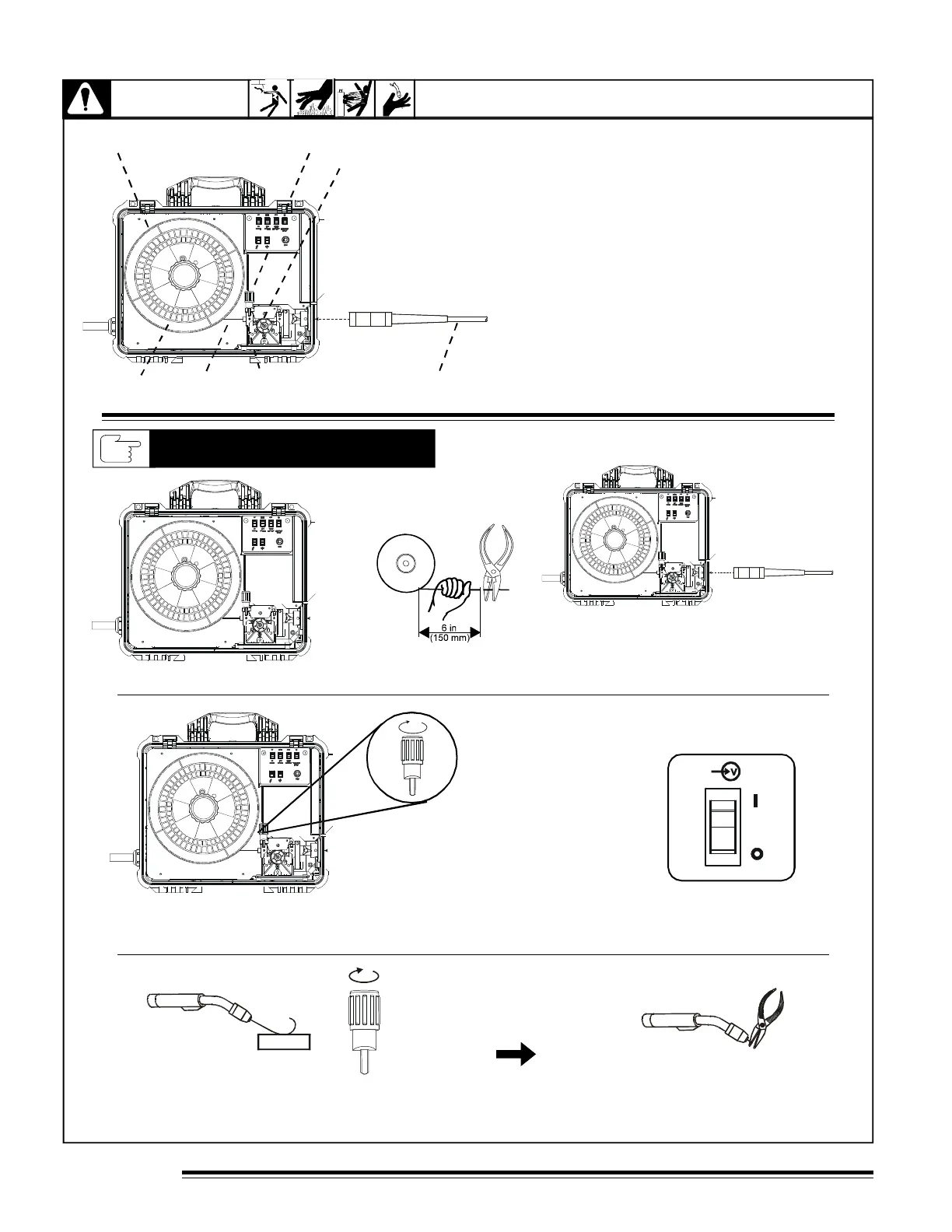

3-8 WELDING WIRE INSTALLATION
1
4
2
5
6
73
Open pressure gear assembly.
Pull and hold wire; cut
off end.
Push wire through guides into
gun; continue to hold wire.
Once wire is in inlet guides, close,
latch and tighten pressure gear
assembly and let go of wire.
Turn on Wire Feeder
Wood
Feed wire to check drive roll pressure.
Tighten knob enough to prevent slipping.
Cut off wire. Close and latch door.
Hold wire tightly to keep it from unraveling.
Pull to
Release
1.- WIRE SPOOL
2.- WELDING WIRE
3.- WELDING WIRE ACCESS
4.- INLET WIRE GUIDE
5.- PRESSURE ADJUSTMENT KNOB
6.- DRIVE ROLL
7.- GUN CONDUIT CABLE
Assure the gun connector with the
hasp and turn tightly security
knob screw.
