PM1395
Table 2-1 Unit Specifications
SECTION 2. SPECIFICATIONS
Description
1 Phase, 24 Vac, 3A, 50/60Hz.
100 Volts, 500 Amperes, 100% Duty Cycle.
Constant Voltage (CV) DC,
1.9 to 23 m/min (75 to 900 Plgs/min)
0.6 to 2.0 mm (0.023 to 5/64")
Solid Wire (GMAW ) and Flux Cored (FCAW).
4 mts. (13 Ft).
Length: 21-1/2" (546mm); W idth: 8-1/2" (216mm); Height: 17" (432mm).
34 Lb (15,5 kg)
Type of input power:
Maximum current in the welding circuit:
Power Supply (Including Generators):
Wire feeder speed range:
Range of cable diameters:
Welding Process:
Length of the unit's power cable:
Dimensions:
Weight:
Specifications
1
SECTION 1 SAFETY SIGNAL WORDS
IMPORTANT: Statements identify special instructions necessary for the most efficient operation
of this equipment.
WARNING
WARNING statements identify procedures or practices which must be followed to
avoid serious personal injury or loss of life.
CAUTION
CAUTION statements identify procedures or practices which must be followed to
avoid minor personal injury or damage to this equipment.
The following safety alert symbol and signal words are used throughout this manual to call
attention to and identify different levels of hazard and special instructions.
Images shown in this manual must be taken as a reference and the real unit may
change slightly.
CAUTION

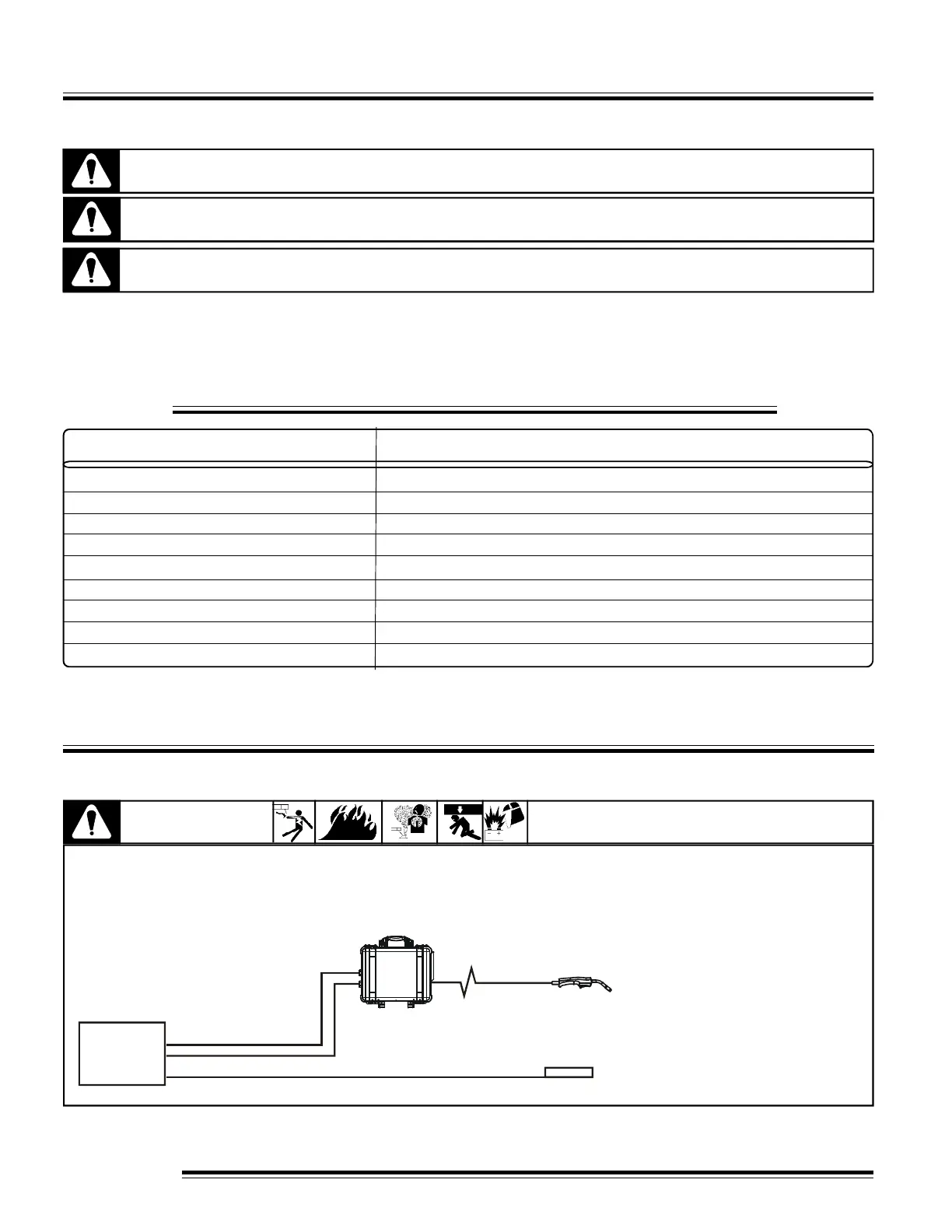

FIGURE 3-1 Typical Connections
1.- POWER SOURCE TYPE CV
2.- POWER SUPPLY CABLE
3.- WELDING OUTPUT CABLE.
4.- WORK PIECE
SECTION 3 INSTALLATION
CAUTION
READ SAFETY BLOCKS at beginning of manual before
proceeding.
3-1 TYPICAL CONNECTIONS
4
3
2
1
