Comparc S-512P CV - Overload Protection; Changing Contact Tube

PM1395
10
Side view of feeder
5-3 OVERLOAD PROTECTION
WARNING
READ SAFETY BLOCKS at beginning of manual before proceeding.

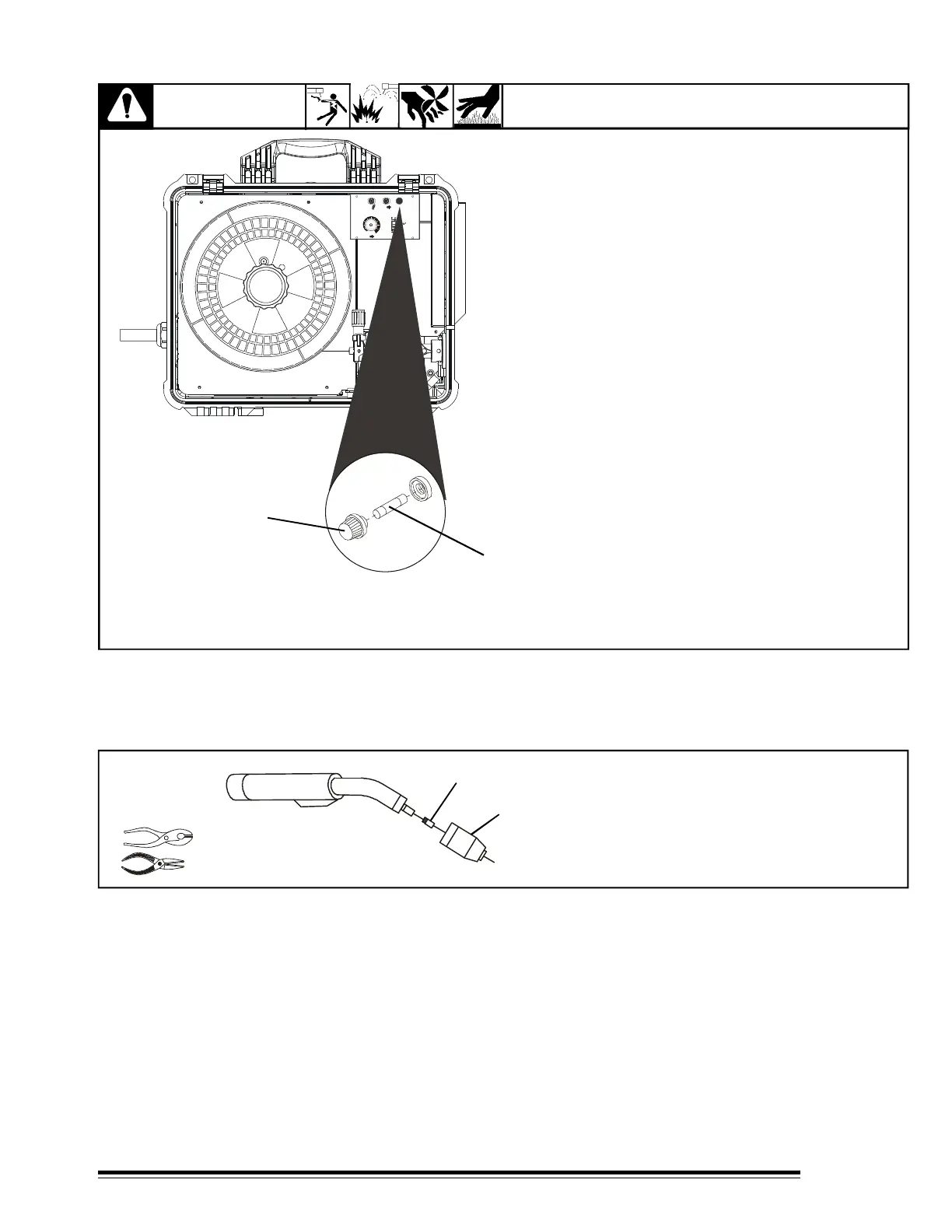

FIGURE 5-1 Overload Protection
FIGURE 5-2 Changing Contact Tube
Turn off and disconnect the unit and
welding power source.
1.- NOZZLE.
2.- CONTACT TIP. Cut wire remaining of the
contact tip. Remove nozzle, remove the contact tip
and install the new one. Reinstall nozzle.
Tools needed
2
1
5-4 CHANGING CONTACT TUBE
0
1
2
3
4
6
5
7
8
9
10
F1
1
DISCONNECT and turn off wire feeder and power
source BEFORE proceed.
INAPPROPIATE FUSES can damage unit. Be sure to
select correct fuse size and capacity according
amperage used.
1.- FUSE COVER. Remove fuse cover.
2.- FUSE F1 (10 Amp.). F1 fuse protects agains
overloads to wire feeder. If F1 opens, unit shutdown.
Replace F1.
2
