Comparc S-512P CV - Section 4 Controls

PM1395
POWER
SWITCH
WIRE SPEED
CONTROL
VOLMETER AMMETER
AND WIRE SPEED METER VOLTMETER
MIG GUN
ACCESS HOLE
0
1
2
3
4
6
5
7
8
9
10
F1
WIRE TRIMMER
GAS PURGE
SWITCH
WIRE PURGE
SWITCH
TRIGGER MODE
SELECTOR
FUSE F1
6
CAUTION
SECTION 4 CONTROLS
SEE SAFETY BLOCKS at beginning of manual
before proceeding.
4-1 CONTROLS

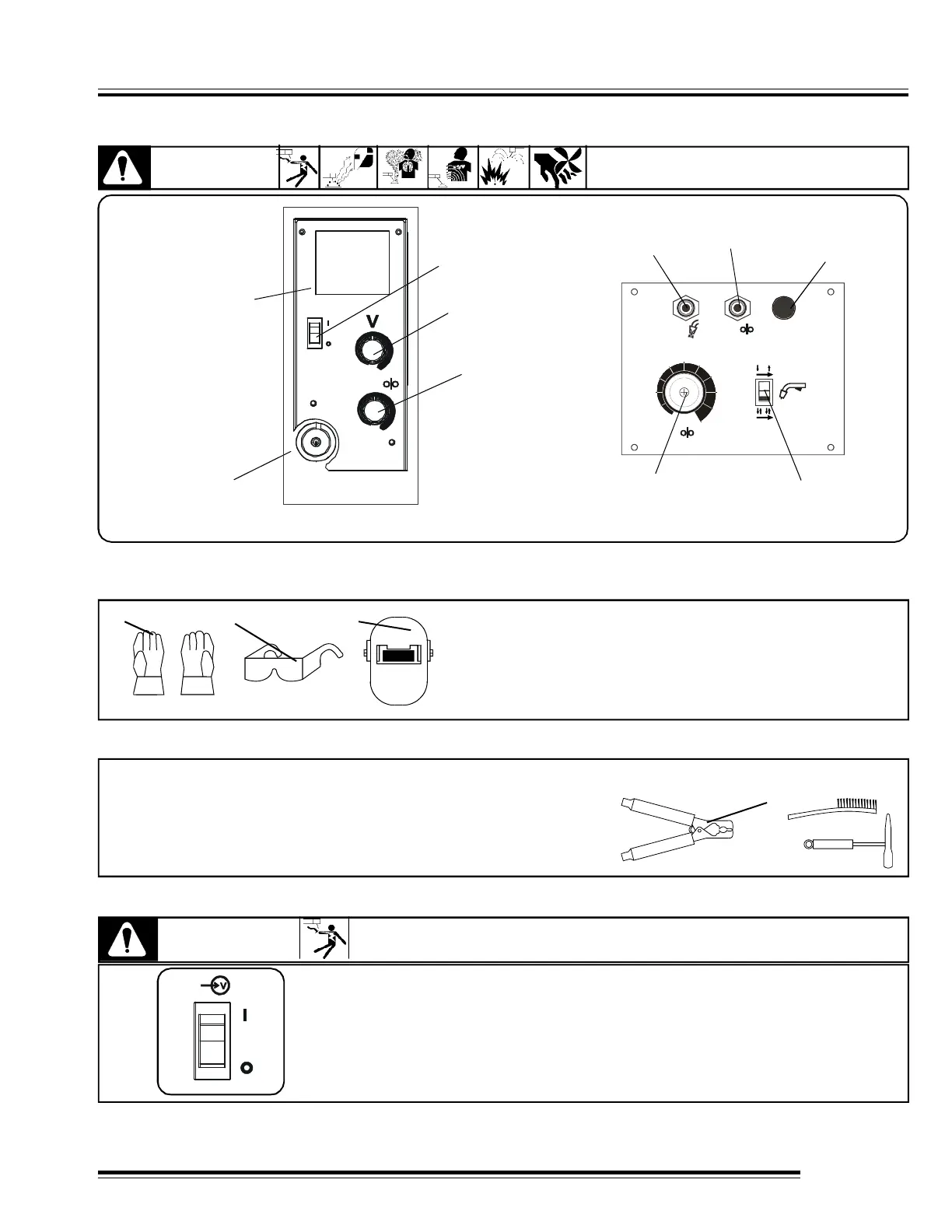

FIGURE 4-1 Controls
WARNING
1.- INSULATING GLOVES.
2.- SAFETY GLASSES WITH SIDE SHIELDS.
3.- WELDING HELMET.
Wear dry insulating gloves, safety glasses with side shields, and a welding
helmet with a correct shade of filter (see ANSI Z49.1).
FIGURE 4-2 Safety Equipment
3
21
1.- WORK CLAMP: Use wire brush or sandpiper to clean metal at weld joint area.
Use chipping hammer to remove slag after welding. Connect work clamp to a
clean, paint-free location on workpiece, as close to weld area as possible.
FIGURE 4-3 Work Clamp
1
Tools needed:
ELECTRIC SHOCK can kill. Do not touch electrical live parts. Do not touch weld receptacles while
contactor is energized. Do not TOUCH electrode and work piece AT SAME TIME.
POWER SWITCH
Use power switch to turn On/Off wire feeder.
FIGURE 4-4 Power Switch
