Concept2 C Indoor Rower - Page 5

II
I
➀
➂
➃
➁
Insert socket screws in this order.
5.

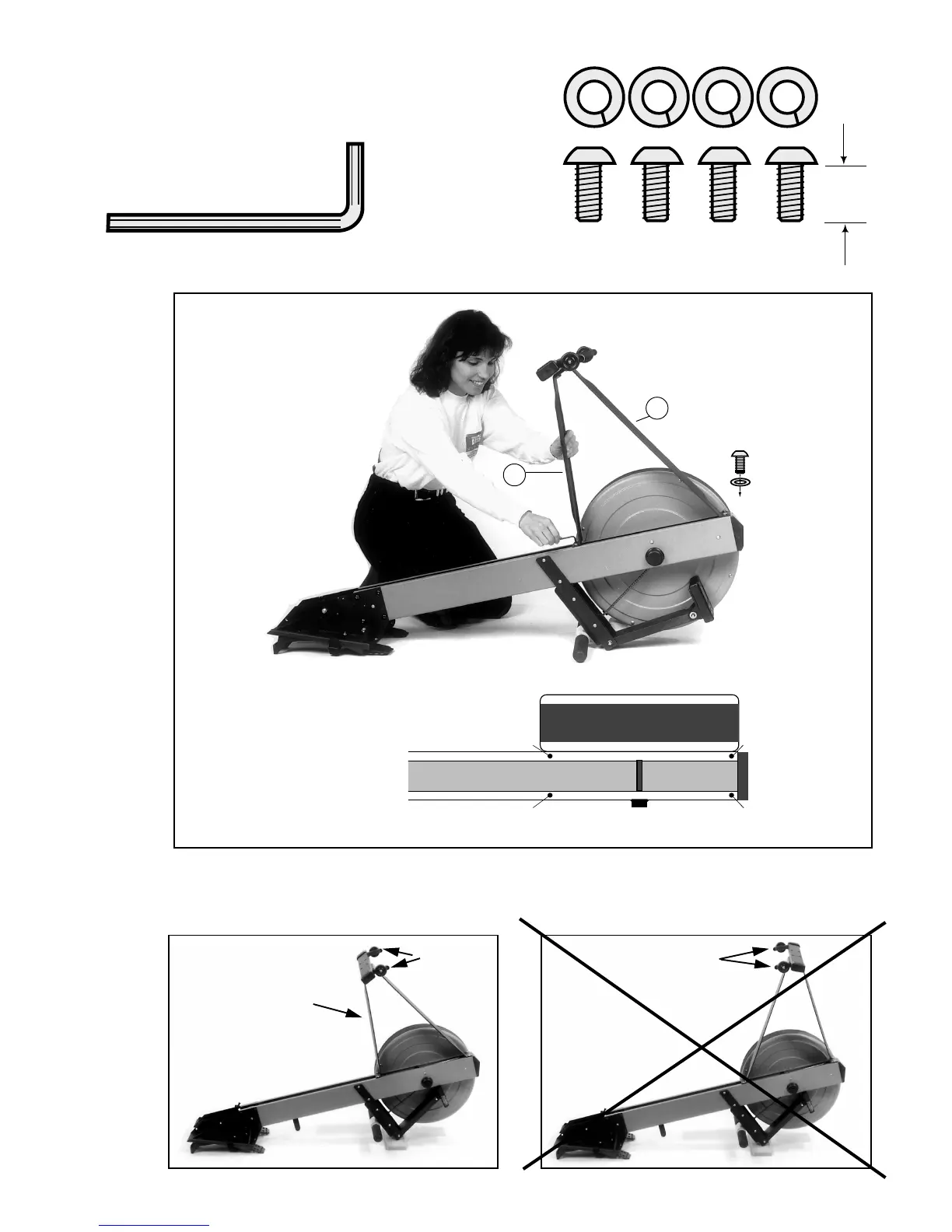

Attaching Front Leg
1
⁄
2
"
or
1,25 cm
Parts needed:
4 washers
4 screws
(actual size)
CORRECT Leg Assembly
INCORRECT Leg Assembly
Tool Needed:
Allen Wrench
(provided)
Please note direction of wheels.
Short
Leg
Wheels
Toward
Front
Wheels
Wrong
Direction
Short
Leg
Long Leg
Front Leg Assembly
