Chapter Two Hardware
2.1 H.264 standalone DVR

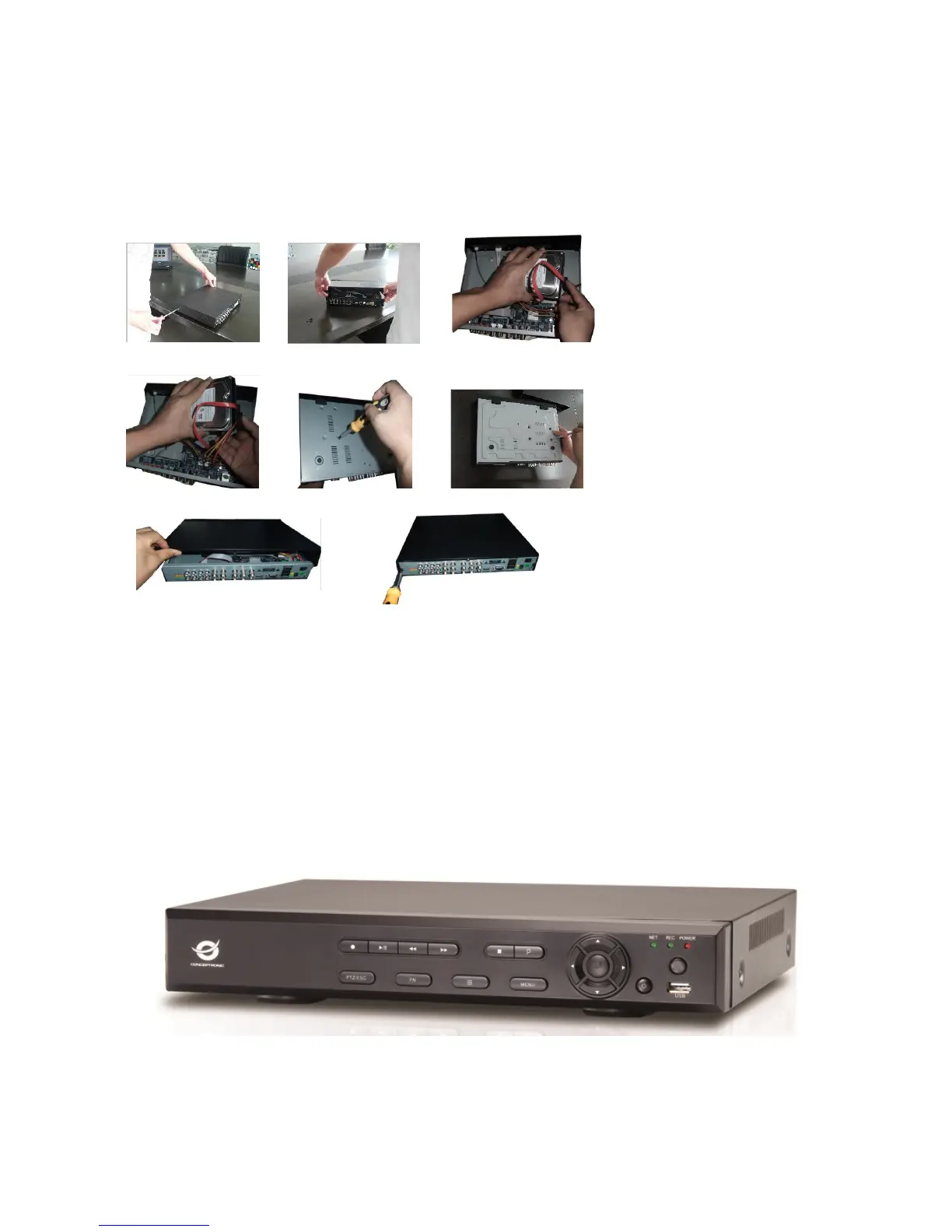

2.1.1 Hard disk Installation
For the first use, please install the hard disk
○
1
Remove the screws on both ○
2
extracted from the next cover up ○
3
connect the data wire
○
4
connect the power wire ○
5
fix the screw of the hard disk ○
6
fix the screw of the hard disk
⑦close cover ⑧fix the cover
2.1.2 Rear panel and Front panel of DVR
Front panel
