Chapter Three Operation
3.1 Operation instruction

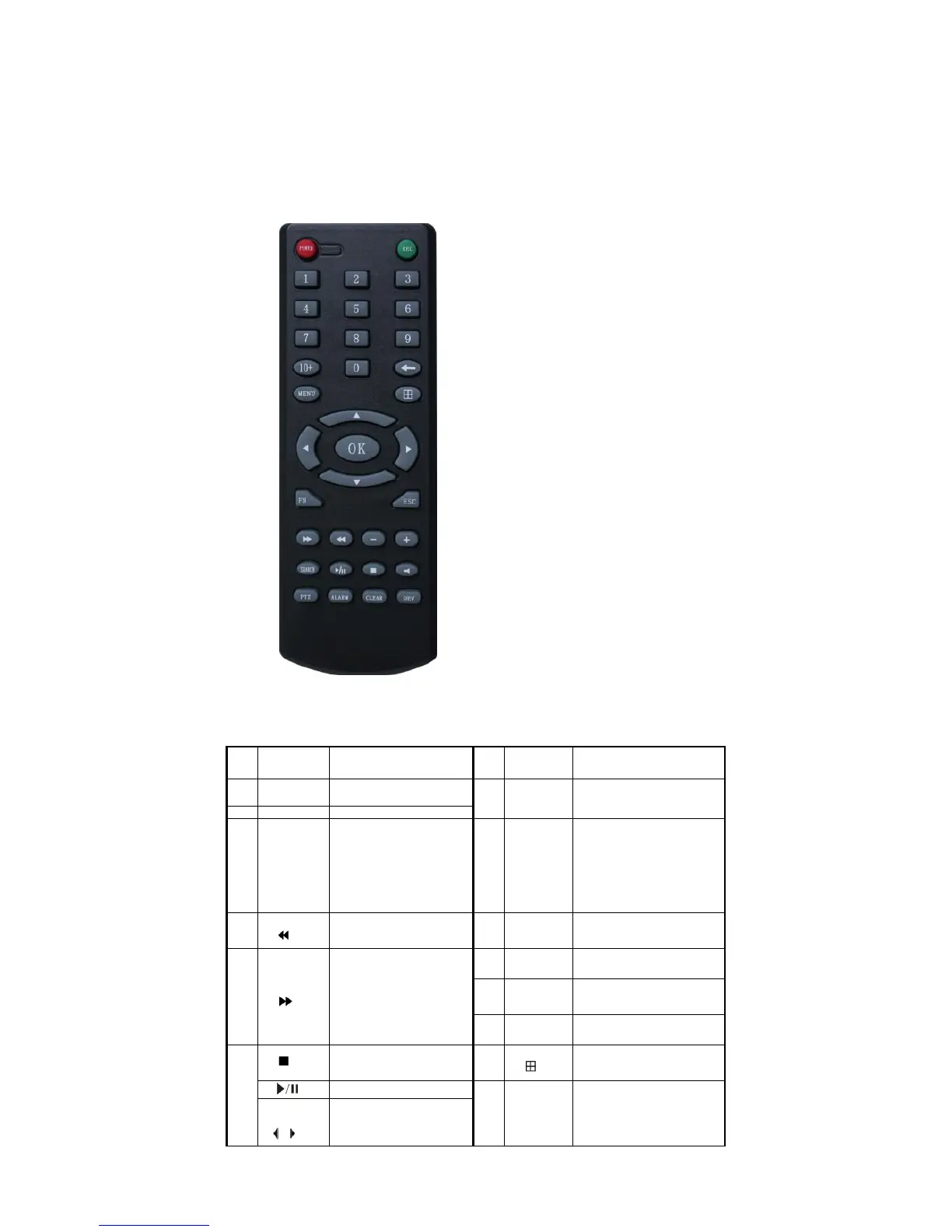

3.1.1 Remote control AND Front panel keypad
Table：
S/
N
KEYpad
Name
Operating
instruction
S/
N
Keypad
Name
Operating
instruction
1
【POWER】
Power ON/OFF
8
【 ENTER 】
【OK】
This button is used
as“enter”and“ok” key in most
circumstances
2
【MENU】
Access main menu
3
【ESC】
Exit operation or enter upper
menu
Close soft keyboard
Close current window
Exit from current control
Return to last menu
Exit from PTZ control under
preview state
9
【PTZ】
Access/exit from PTZ control
under preview state
4
【 】
Slow playback,1/2×, 1/4×,
1/8× and single frame play
10
【+/-】
Volume or number
increase/reduction Select item
of the list
5
【 】
Fast playback, 2×,4× and 8×
playback
11
【 ZOOM
IN/OUT】
Lens control
12
【0~9 10+】
Digital input Corresponding;
Channel is magnified in full
screen under preview state
13
【FN】
Short cut
6
【 】
Playback stop
14
【 】
Switching of
1/4/8/9/16/24/32Preview mode
【 】
Play / Pause
15
【ALARM】
Alarm reset
【 ▲.▼.
】
Four-way to move the focal
point in main menu, up and
down to move in the normal
window, to control pan driver
