ROUTER DESCRIPTION
5.7.2. Power connector PWR
Panel socket 2-pin.
Pin
number
Signal
mark
Description
1 VCC (+) Positive pole of DC supply voltage (+10 to +30 VDC)
2 GND (-) Negative pole of DC supply voltage
Table 8: Connection of power connector

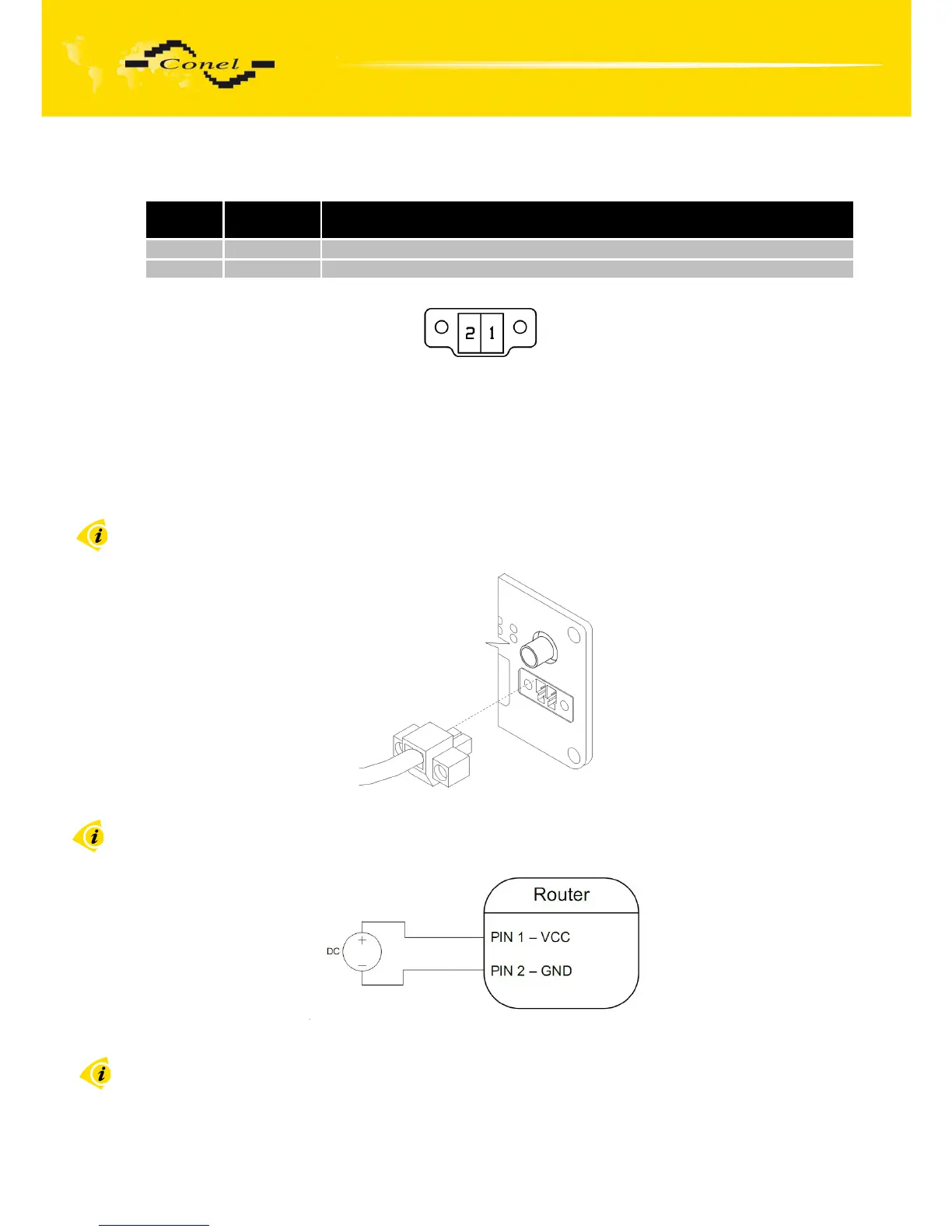

Fig. 18: Power connector
Power supply for router is required between +10 V to +30 V DC supply. Protection
against reversed polarity without signaling is built into the router.
The power consumption during receiving is 1W. The peak power consumption during
data sending is 5,5W. For correct operation it is necessary that the power source is
able to supply a peak current of 600mA.
Connector on the power cable connects into the power connector on the router head
and tightens locking screws (see figure bellow).
Fig. 19: Connection of power supply connector
Circuit example:
Fig. 20: Connection of power supply
The positive pole VCC is marked by a red socket on the power.
