ROUTER DESCRIPTION
4. Contents of package
Basic delivered set of router includes:
• router,
• power supply,
• crossover UTP cable,
• two external antennas,
• clips for the DIN rail,
• installation CD containing instructions,
• paper start guide.

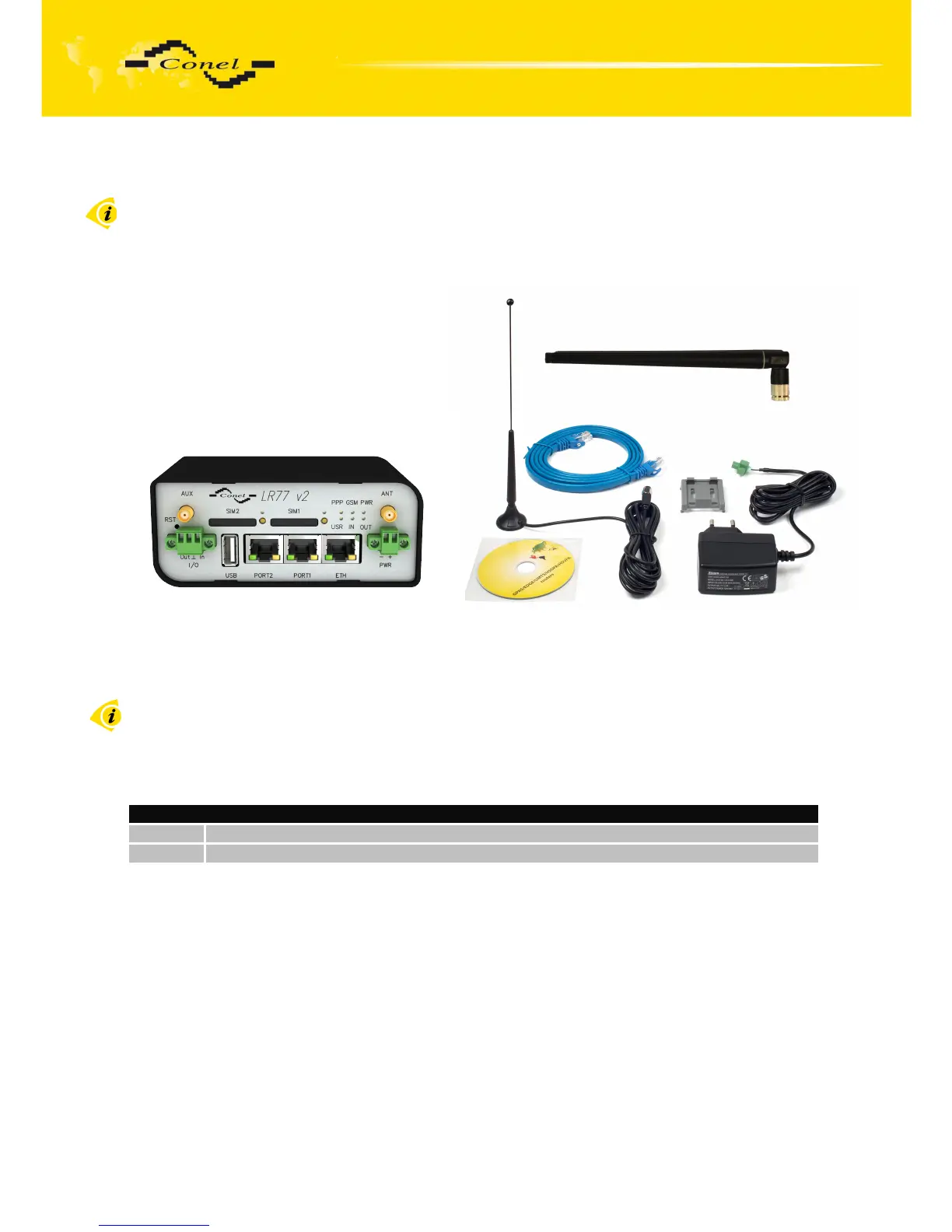

Fig. 1: Contents of package
The router box and DIN mount are supplied in a metal case in the SL version of the router.
The router can also be supplied as expansion accessories:
• one or two expansion ports RS232, RS485/RS422, ETHERNET, M-BUS, CNT or
XC-SW. Separation columns for mounting expansion boards are included.
Module can be connected only as follows.
PORT1 RS232, RS485/422, ETHERNET, M-BUS, CNT, XC-SW (together with PORT2)
PORT2 RS232, RS485/422, M-BUS, XC-SW (together with PORT1)
Table 1: Expansion port possibilities
