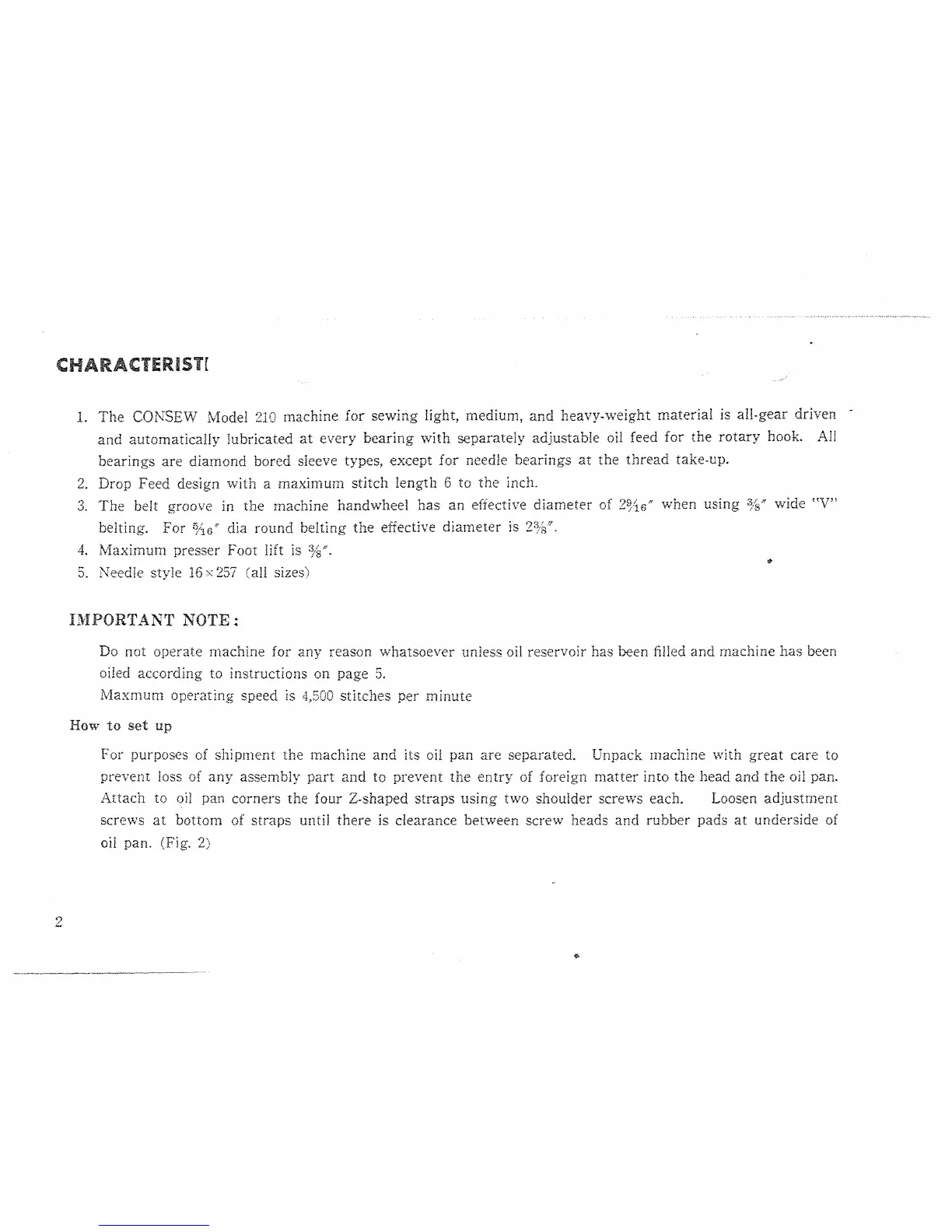

CHARACTERIST[
2
L The CONSEW Model 2JO machine for sewing light, rnedium, and heavy-weight material is ali-gear driven -
and automatically lubricated at every bearing with separately adjustable oil feed for the rotary hook. All
bearings are diamond bored sleeve types, except for needle bearings at the thread take-up.
2. Drop Feed design with a maximum stitch length 6 to the inch.
3. The belt groove in the machine handwheel has an eHective diameter of 2%o" when using ~(.:;;" wide "V"
belting. For ;7-iH" dia round belting the effective diameter .is 2:%,'~.
4. Maximmn presser Foot lift is %
1
u.
'#:
::>. Needle style 16 ;< 257 (all sizes)
IMPORTANT NOTE:
Do not operate machine for any reason whatsoever unless oil reservoir has been filled and machine has been
oiled according to instructions on page 5.
Maxmmn operating speed is 4,500 stitches per minute
How to set up
For purposes of shipment the machine and its oil pan are separated. Unpack rnachine with great care to
pre\·ent loss of any assembly part and to prevent the entry of foreign matter into the head and the oil pan.
Attach to oil pan corners the four Z-shaped straps using two shoulder screws each. Loosen adjustment
screws at bottom of straps until there is clearance between screw heads and rubber pads at underside of
oil
pan. (Fig. 2)
$
