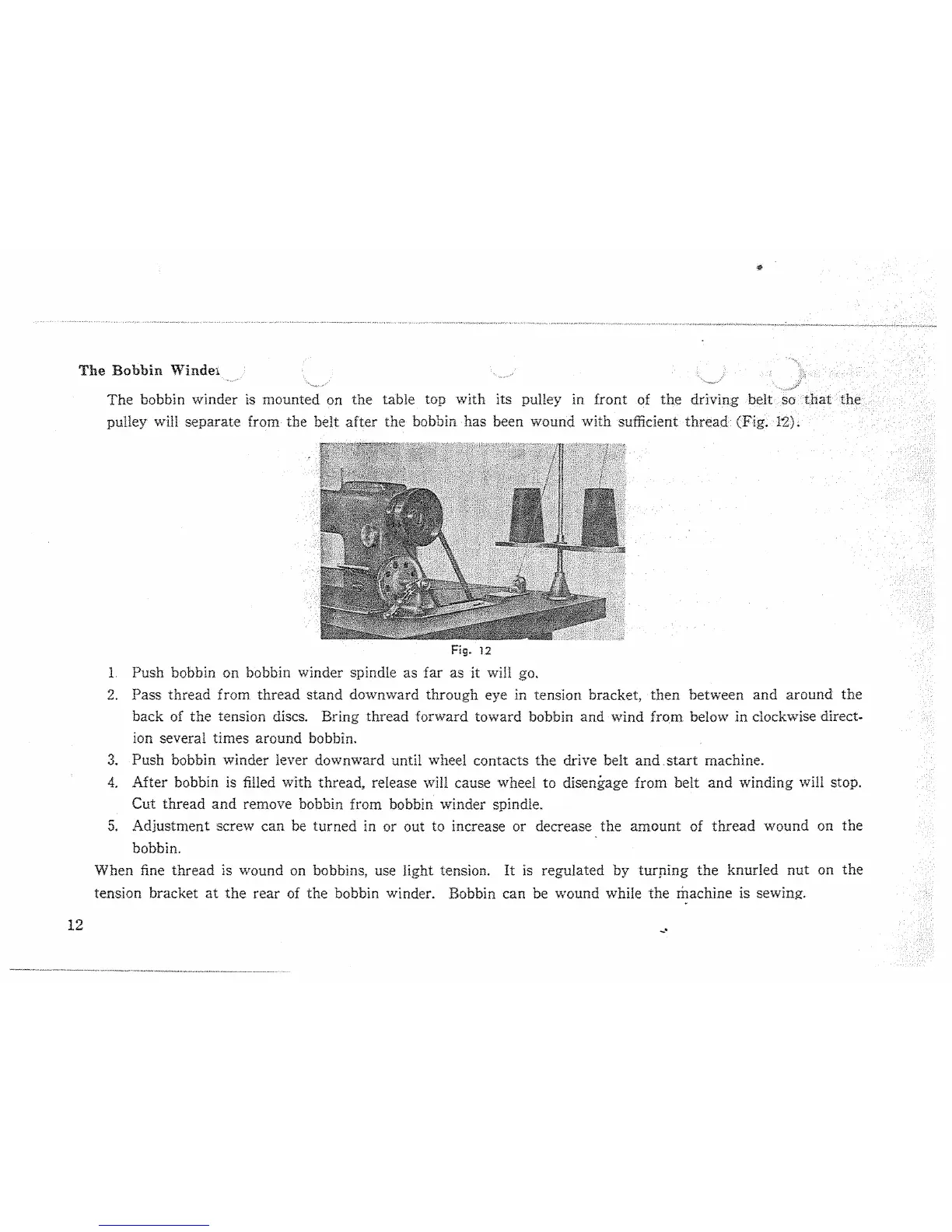

The
Bobb.in Winde1
12
The
bobbin winder
is
mounted on the table top with its pulley
in
front of the driving belt so
that
the
pulley will separate from the belt
after
the bobbin has been wound
with
sufficient
thread
(Fig.
1'2)
~
Fig
..
1.2
1 Push bobbin on bobbin winder spindle as far as it will go.
2.
Pass thread from thread
stand
do\vnward through eye in tension bracket,
then
between
and
around
the
back of
the
tension discs. Bring thread forward toward bobbin and wind
from
below
.in
clockwise direct-
ion several times around bobbin.
3.
Push bobbin winder lever downward until wheel contacts the drive belt
and
.start
machine.
4.
After bobbin is filled with thread. release will cause wheel to disengage from belt
and
winding will stop.
Cut thread
and
remove bobbin from bobbin winder spindle.
5.
Adjustment screw
can
be turned in or out to increase or decrease the
amount
of
thread
wound on the
bobbin.
When fine thread
is wound on bobbins, use light tension.
It
is
regulated by
turping
the
knurled
nut
on
the
tension bracket
at
the
rear of
the
bobbin winder. Bobbin can be wound while
the
machine is sewing.
-·
