5 Installation
5.1 View of the Front Panel

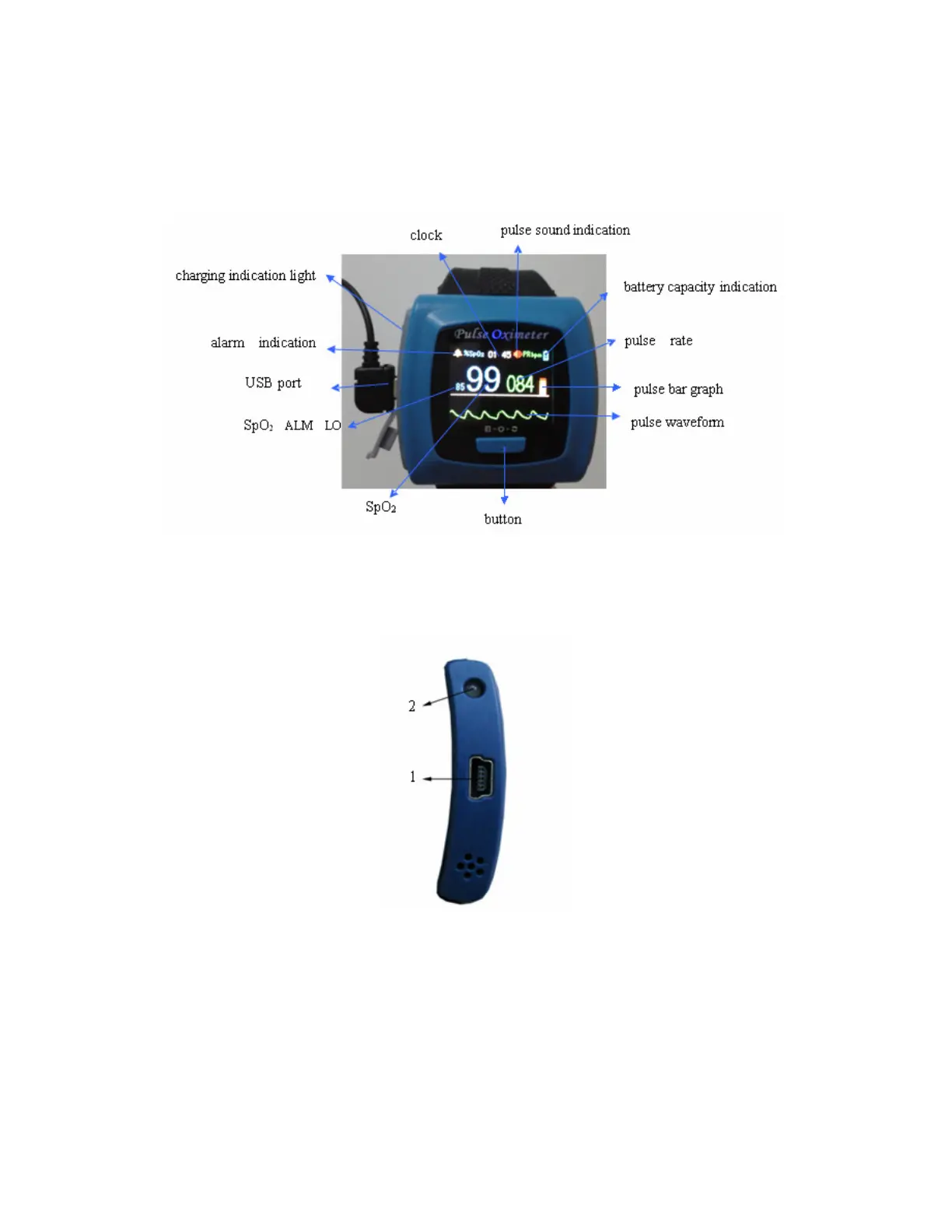

Figure 2. Front view
(Actual probe may be different with the probe as figure 4,please accept the actual probe with the
device )
Figure 3. Left view
1. This port can be used as an USB port. It is used to connect a personal computer to export the trend
data, charge the lithium battery via a data line.Or it is used to connect a SpO
2
sensor to measure the
oxygen saturation and pulse rate.
2. Charging indication light. When the device is in the state of battering charging, the indication light
appears to be orange, and when the battery status is full, the light turns to green.
5.2 Probe Connection
A. Please inert the USB plug of the probe into the corresponding USB port of the device. It ppears
