Conti Xeos EVOLUTION 2 - Electronic Diagram Standard Version

Edition 07/2008 - XEOS EVOLUTION 2 - XEOS TALL CUP
NOTES TECHNIQUES - TECHNICAL DOCUMENTS - page 38
SACOME, Document CONFIDENTIEL, Ne peut être reproduit ni communiqué sans notre accord préalable.
SACOME, CONFIDENTIAL Document, it is forbidden to duplicate or communicate this document without previous authorization.

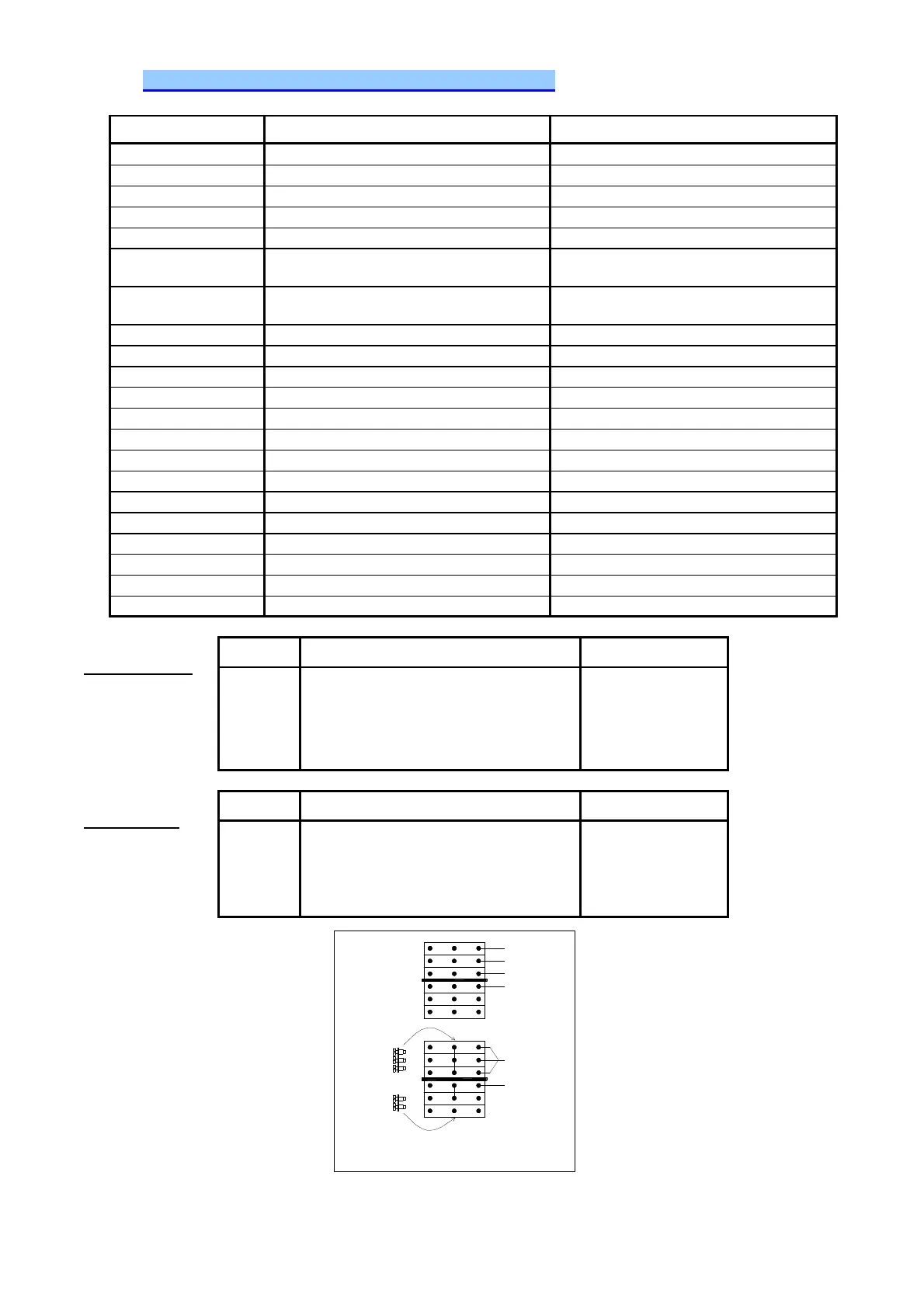

28. ELECTRONIC DIAGRAM STANDARD VERSION
REF. DESIGNATIONS FUNCTION
C CONNECTEUR CONNECTOR
CE CARTE ELECTRONIQUE MAIN ELECTRONIC CONTROLLER
CV COMPTEUR VOLUMETRIQUE FLOW METER
CH CHAUDIERE BOILER
CP OPTION CLE DE PROGRAMMATION OPTIONAL KEY PROGRAMMING
CP1 / CP2 /
CP3 / CP4
CONNEXION BOUTON DE
COMMANDE CAFE
COFFEE CONTROL BUTTON
CONNECTION
CN3
CONNEXION BOUTON DE
COMMANDE EAU CHAUDE
HOT WATER CONTROL BUTTON
CONNECTON
EE EV ENTREE EAU SOLENOID VALVE WATER FEEDING
EVG EV DE GROUPE GROUP SOLENOID VALVE
F1 FUSIBLE 500 milliA 500 MilliAMP FUSE
F2 FUSIBLE 10A 10 AMP FUSE
MP MOTO-POMPE MOTOR/PUMP
THE THE (EAU CHAUDE) TEA (hot water)
P PRESSOSTAT 0.6/0.8 BAR PRESSURE SWITCH
RC RESISTANCE CHAUFFAGE IMMERSION HEATER
RS RELAIS DE SECURITE SAFETY RELAY
SS SONDE DE SECURITE SAFETY SENSOR
SN SONDE DE NIVEAU LEVEL SENSOR
TS THERMOSTAT DE SURCHAUFFE OVERHEATING THERMOSTAT
VR VOYANT ROUGE RED LIGHT
VV VOYANT VERT GREEN LIGHT
Bridge Function Standard state
JP1
without programming key with jumper
JP2
Pump with tea with jumper
JP3
Never insert the bridge
JP4
Boiler filling with pump with jumper
Bridge Function Standard state
JP2
When hot water is ordered the pump
is activated
with jumper
JP3
JP4
Filling up with pump with jumper
N
L2
N
T
N
L3
L1
T
220V
}
N
L2
N
L3
L1
}
380V
N
Connection 220/380V
Before 10/2002
After 10/2002
