Edition 07/2008 - XEOS EVOLUTION 2 - XEOS TALL CUP
NOTES TECHNIQUES - TECHNICAL DOCUMENTS - page 41
SACOME, Document CONFIDENTIEL,
Ne peut être reproduit ni communiqué sans notre accord préalable.
SACOME, CONFIDENTIAL Document,
it is forbidden to duplicate or communicate this document without previous authorization.

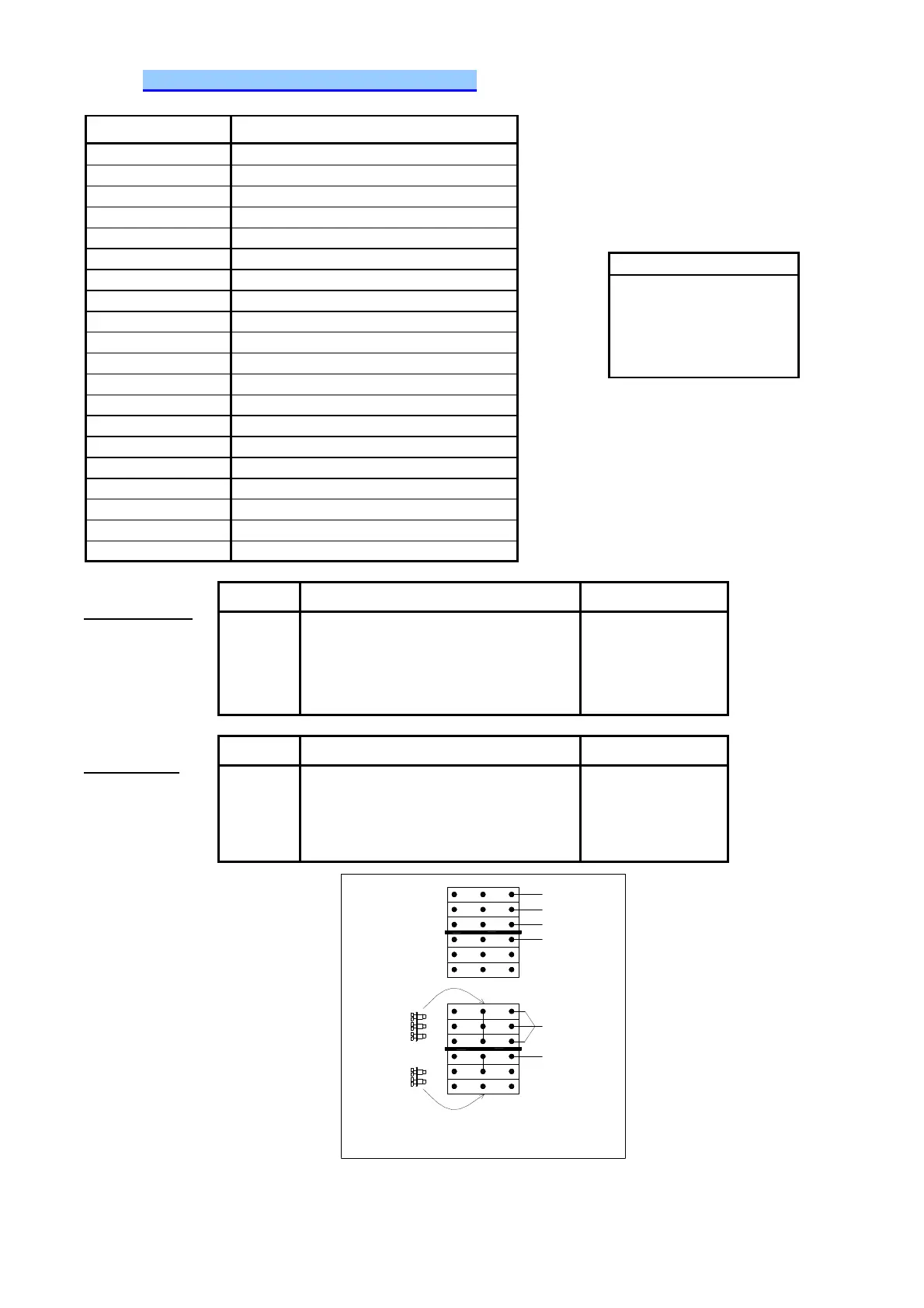

29. UL VERSION ELECTRONIC DIAGRAM
REFERENCES
FUNCTION
B BOILER
C CONNECTOR
MEC MAIN ELECTRONIC CONTROLLER
FM FLOW METER
OKP OPTIONAL KEY PROGRAMMING
CB CONTROL BUTTONS
SVWF SOLENOID VALVE WATER FEEDING
GSV GROUP SOLENOID VALVE
F1 500 MilliAMP FUSE
F2 10 AMP FUSE
MP MOTOR/PUMP
THE TEA (hot water)
PS PRESSURE SWITCH
IH IMMERSION HEATER
SR SAFETY RELAY
SS SAFETY SENSOR
LS LEVEL SENSOR
OT OVERHEATING THERMOSTAT
RL RED LIGHT
GL GREEN LIGHT
Bridge Function Standard state
JP1
without programming key with jumper
JP2
Pump with tea with jumper
JP3
Never insert the bridge
JP4
Boiler filling with pump with jumper
Bridge Function Standard state
JP2
When hot water for tea is ordered the
pump is activated
with jumper
JP3
JP4
Filling up with pump with jumper
N
L2
N
T
N
L3
L1
T
220V
}
N
L2
N
L3
L1
}
380V
N
Connection 220/380V
CABLE COLOUR CODE
1 brown 6 blue
2 red 7 violet
3 orange 8 grey
4 yellow 9 white
5 green 0 black
Before 10/2002
After 10/2002
