3 Using Multi Channel
Amplifier
This chapter introduces the LCD user interface screens
on the Multi Channel Amplifier and the common system
tasks you can perform. Normal day-to-day tasks do not
require manual control but instead are controlled using
the Control4 user interface.
View Output Assignments
Once you complete the physical connections and logical
connections (using the Composer software as needed),
you can view or change your setup in the Multi Channel
Amplifier front display.

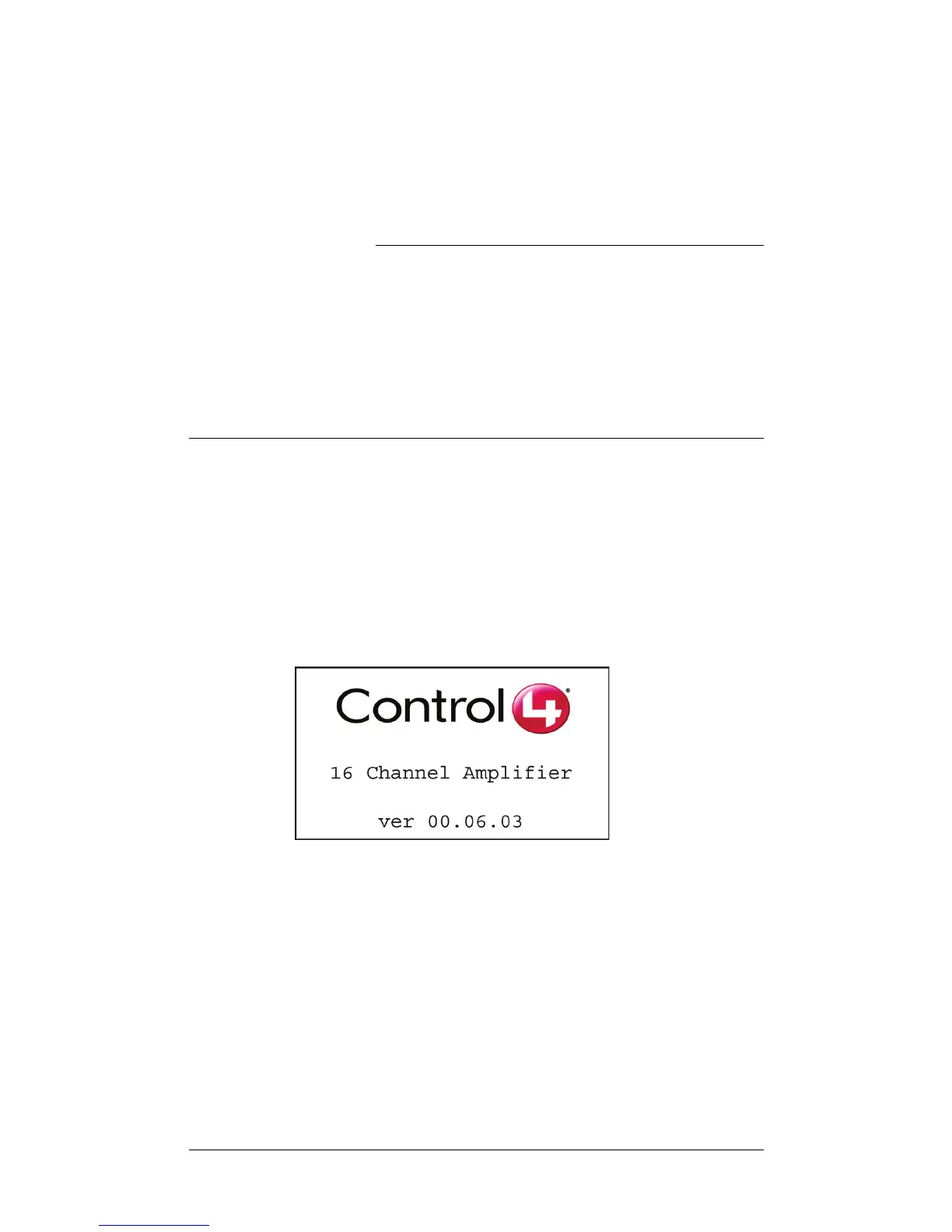

When you first power up the Multi Channel Amplifier, a
System Status screen similar to the following one appears
momentarily.
The System Status screen is then replaced by the
In to Out Assignments screen. The screen shows 8 output
