Commander SE User Guide 4
Issue Number 8 www.controltechniques.com

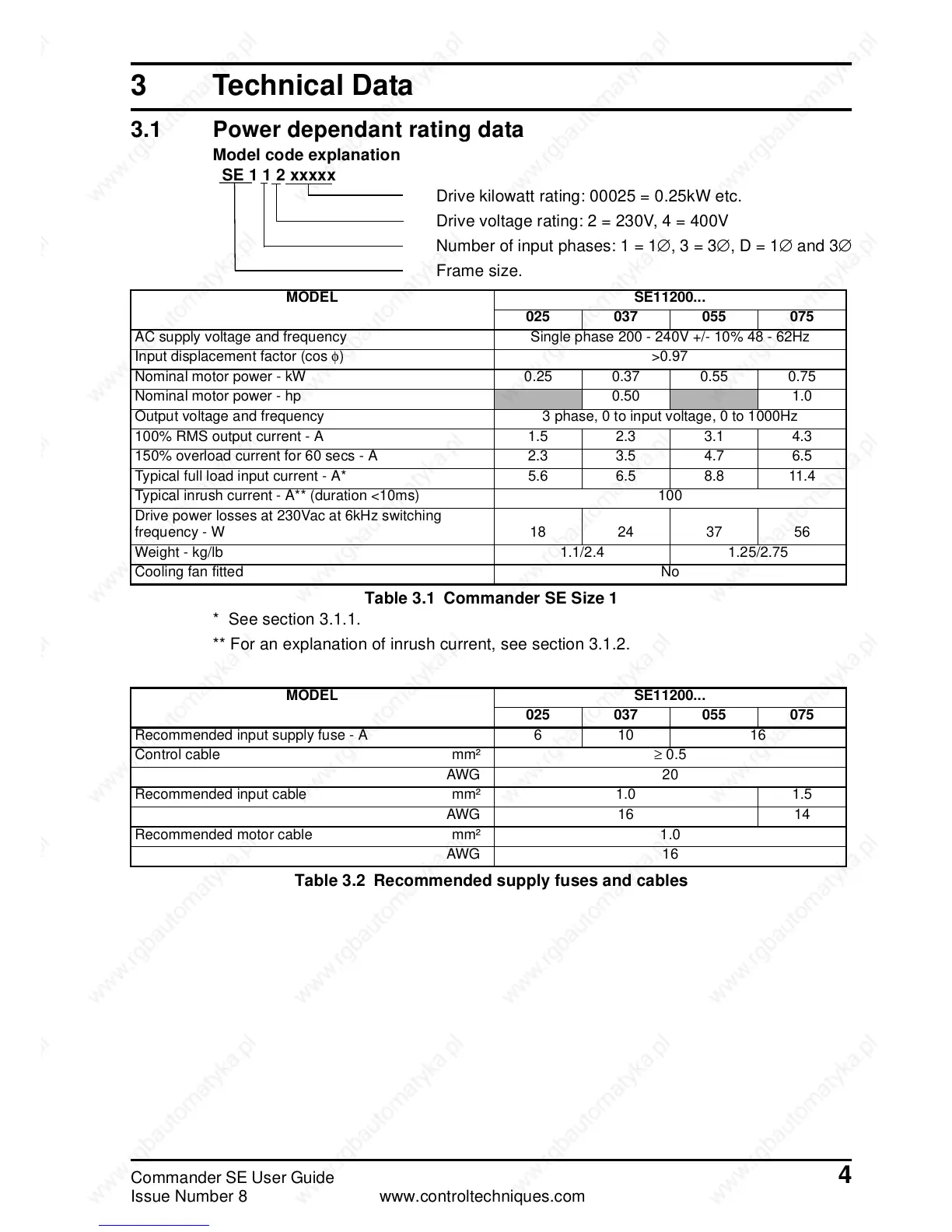

3 Technical Data
3.1 Power dependant rating data
Model code explanation
SE 1 1 2 xxxxx
Drive kilowatt rating: 00025 = 0.25kW etc.
Drive voltage rating: 2 = 230V, 4 = 400V
Number of input phases: 1 = 1∅,3=3∅,D=1∅ and 3∅
Frame size.
Table 3.1 Commander SE Size 1
* See section 3.1.1.
** For an explanation of inrush current, see section 3.1.2.
Table 3.2 Recommended supply fuses and cables
MODEL SE11200...
025 037 055 075
AC supply voltage and frequency Single phase 200 - 240V +/- 10% 48 - 62Hz
Input displacement factor (cos φ) >0.97
Nominal motor power - kW 0.25 0.37 0.55 0.75
Nominal motor power - hp
0.50 1.0
Output voltage and frequency 3 phase, 0 to input voltage, 0 to 1000Hz
100% RMS output current - A 1.5 2.3 3.1 4.3
150% overload current for 60 secs - A 2.3 3.5 4.7 6.5
Typical full load input current - A* 5.6 6.5 8.8 11.4
Typical inrush current - A** (duration <10ms) 100
Drive power losses at 230Vac at 6kHz switching
frequency - W 18 24 37 56
Weight - kg/lb 1.1/2.4 1.25/2.75
Cooling fan fitted No
MODEL SE11200...
025 037 055 075
Recommended input supply fuse - A 6 10 16
Control cable mm² ≥ 0.5
AWG 20
Recommended input cable mm² 1.0 1.5
AWG 16 14
Recommended motor cable mm² 1.0
AWG 16
