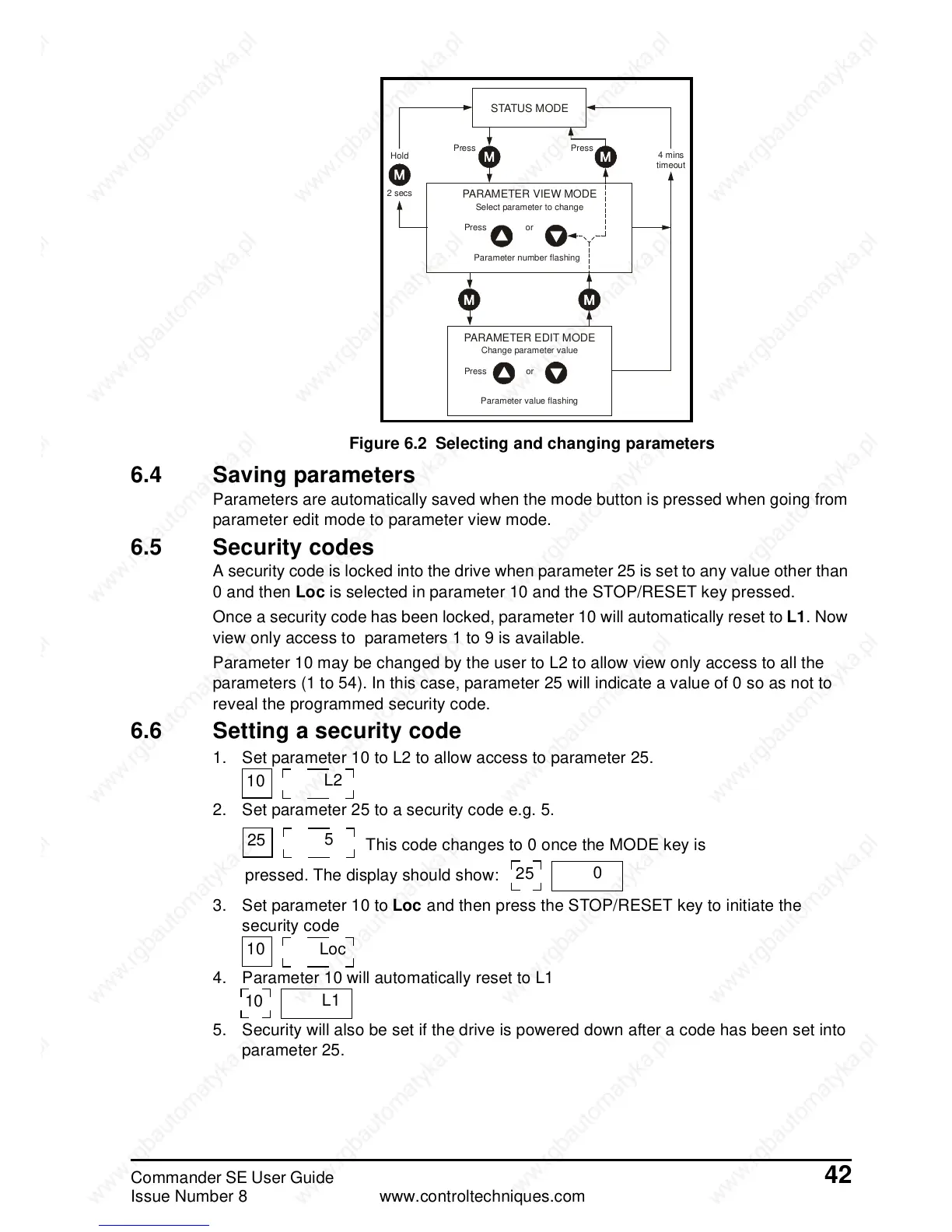

Figure 6.2 Selecting and changing parameters
6.4 Saving parameters
Parameters are automatically saved when the mode button is pressed when going from
parameter edit mode to parameter view mode.
6.5 Security codes
A security code is locked into the drive when parameter 25 is set to any value other than
0 and then Loc is selected in parameter 10 and the STOP/RESET key pressed.
Once a security code has been locked, parameter 10 will automatically reset to L1.Now
view only access to parameters 1 to 9 is available.
Parameter 10 may be changed by the user to L2 to allow view only access to all the
parameters (1 to 54). In this case, parameter 25 will indicate a value of 0 so as not to
reveal the programmed security code.
6.6 Setting a security code
1. Set parameter 10 to L2 to allow access to parameter 25.
2. Set parameter 25 to a security code e.g. 5.
This code changes to 0 once the MODE key is
pressed. The display should show:
3. Set parameter 10 to Loc and then press the STOP/RESET key to initiate the
security code
4. Parameter 10 will automatically reset to L1
5. Security will also be set if the drive is powered down after a code has been set into
parameter 25.
Hold
2secs
Press
Press
Press
or
Press
4mins
timeout
STATUS MODE
PARAMETER VIEW MODE
PARAMETER EDIT MODE
or
Select parameter to change
Change parameter value
Parameter number flashing
Parameter value flashing
10
L2
25
5
25
0
10
Loc
L1
10
