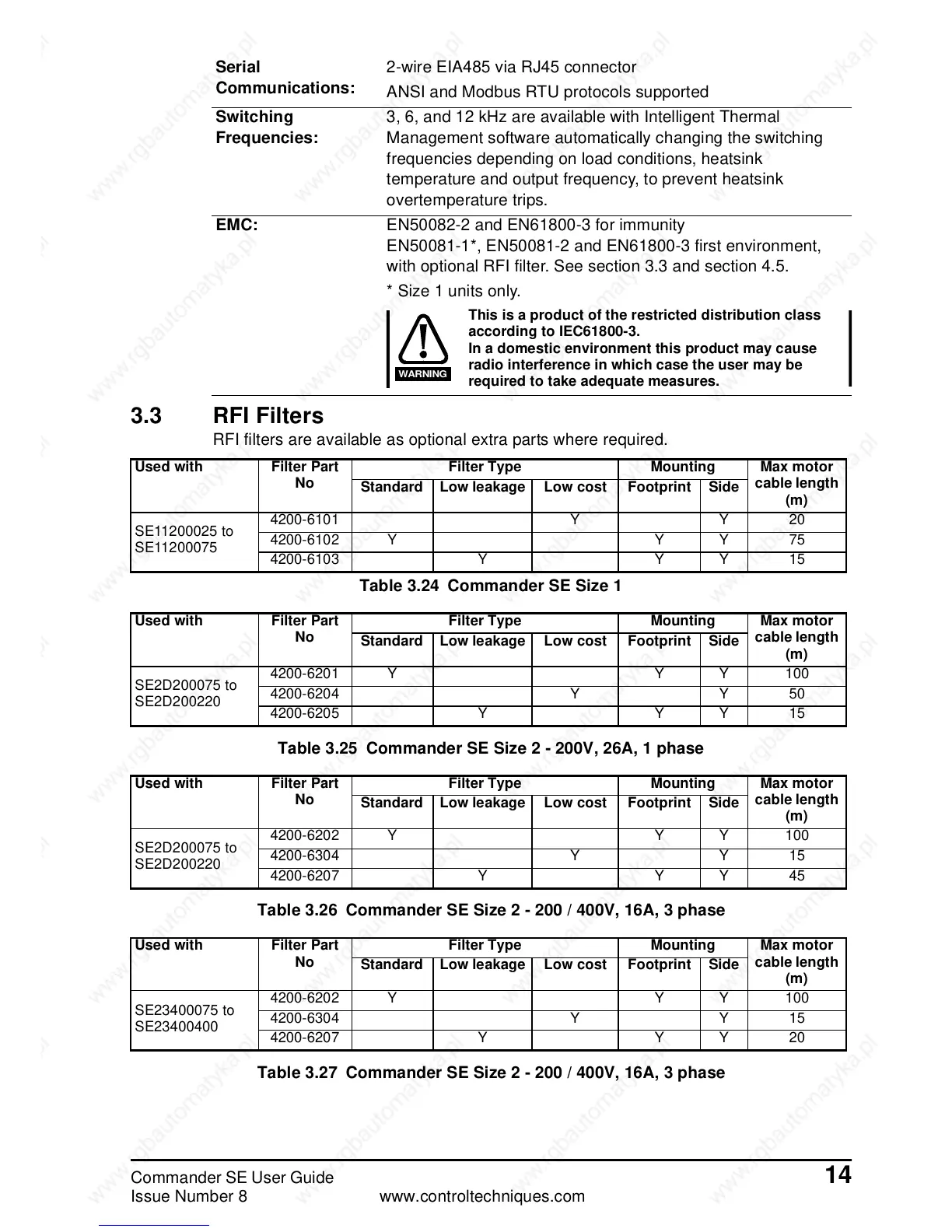

3.3 RFI Filters
RFI filters are available as optional extra parts where required.
Table 3.24 Commander SE Size 1
Table 3.25 Commander SE Size 2 - 200V, 26A, 1 phase
Table 3.26 Commander SE Size 2 - 200 / 400V, 16A, 3 phase
Table 3.27 Commander SE Size 2 - 200 / 400V, 16A, 3 phase
Serial
Communications:
2-wire EIA485 via RJ45 connector
ANSI and Modbus RTU protocols supported
Switching
Frequencies:
3, 6, and 12 kHz are available with Intelligent Thermal
Management software automatically changing the switching
frequencies depending on load conditions, heatsink
temperature and output frequency, to prevent heatsink
overtemperature trips.
EMC: EN50082-2 and EN61800-3 for immunity
EN50081-1*, EN50081-2 and EN61800-3 first environment,
with optional RFI filter. See section 3.3 and section 4.5.
* Size 1 units only.
This is a product of the restricted distribution class
according to IEC61800-3.
In a domestic environment this product may cause
radio interference in which case the user may be
required to take adequate measures.
WARNING
Used with Filter Part
No
Filter Type Mounting Max motor
cable length
(m)
Standard Low leakage Low cost Footprint Side
SE11200025 to
SE11200075
4200-6101 Y Y 20
4200-6102 Y Y Y 75
4200-6103 Y Y Y 15
Used with Filter Part
No
Filter Type Mounting Max motor
cable length
(m)
Standard Low leakage Low cost Footprint Side
SE2D200075 to
SE2D200220
4200-6201 Y Y Y 100
4200-6204 Y Y 50
4200-6205 Y Y Y 15
Used with Filter Part
No
Filter Type Mounting Max motor
cable length
(m)
Standard Low leakage Low cost Footprint Side
SE2D200075 to
SE2D200220
4200-6202 Y Y Y 100
4200-6304 Y Y 15
4200-6207 Y Y Y 45
Used with Filter Part
No
Filter Type Mounting Max motor
cable length
(m)
Standard Low leakage Low cost Footprint Side
SE23400075 to
SE23400400
4200-6202 Y Y Y 100
4200-6304 Y Y 15
4200-6207 Y Y Y 20
