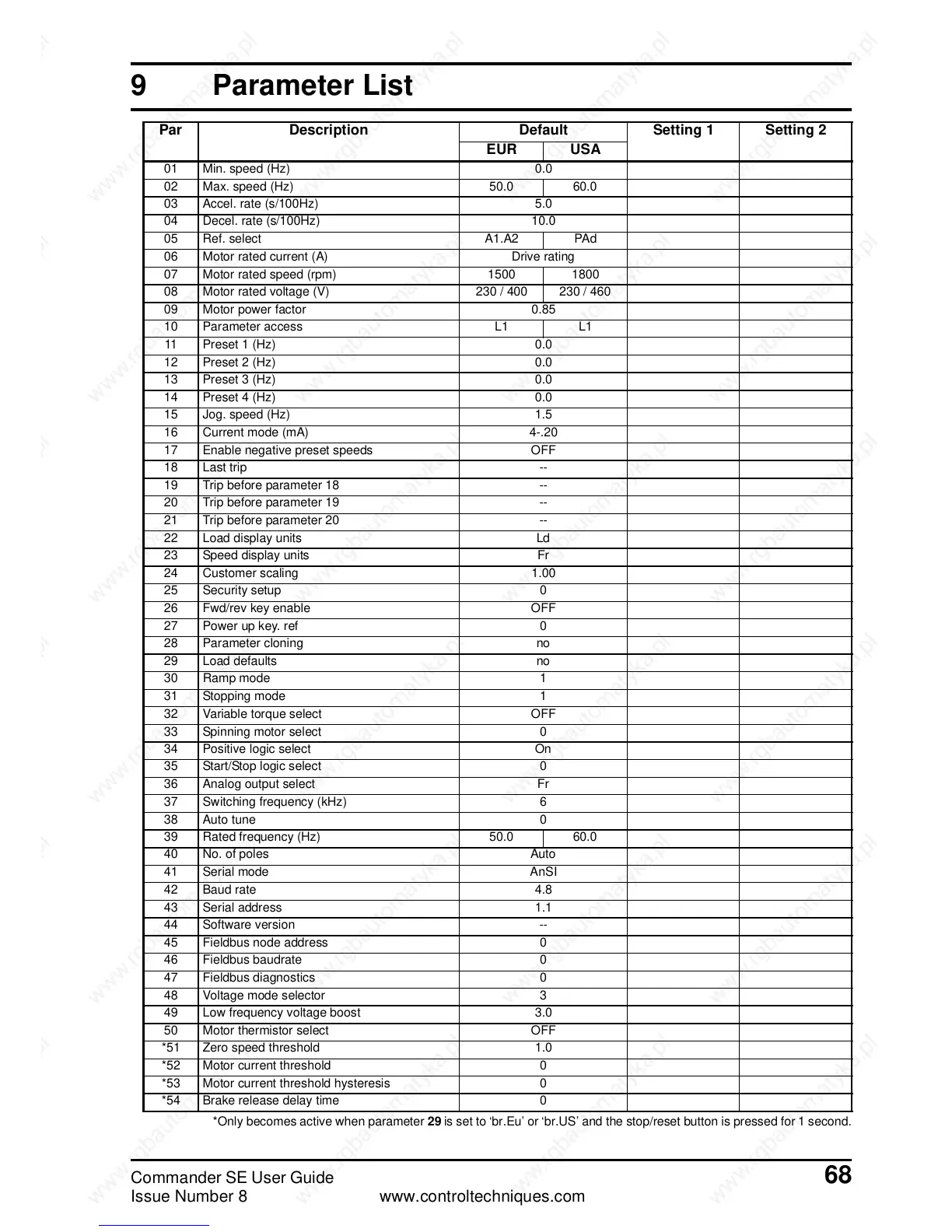

9 Parameter List
*Only becomes active when parameter 29 is set to ‘br.Eu’ or ‘br.US’ and the stop/reset button is pressed for 1 second.
Par Description Default Setting 1 Setting 2
EUR USA
01 Min. speed (Hz) 0.0
02 Max. speed (Hz) 50.0 60.0
03 Accel. rate (s/100Hz) 5.0
04 Decel. rate (s/100Hz) 10.0
05 Ref. select A1.A2 PAd
06 Motor rated current (A) Drive rating
07 Motor rated speed (rpm) 1500 1800
08 Motor rated voltage (V) 230 / 400 230 / 460
09 Motor power factor 0.85
10 Parameter access L1 L1
11 Preset 1 (Hz) 0.0
12 Preset 2 (Hz) 0.0
13 Preset 3 (Hz) 0.0
14 Preset 4 (Hz) 0.0
15 Jog. speed (Hz) 1.5
16 Current mode (mA) 4-.20
17 Enable negative preset speeds OFF
18 Last trip --
19 Trip before parameter 18 --
20 Trip before parameter 19 --
21 Trip before parameter 20 --
22 Load display units Ld
23 Speed display units Fr
24 Customer scaling 1.00
25 Security setup 0
26 Fwd/rev key enable OFF
27 Power up key. ref 0
28 Parameter cloning no
29 Load defaults no
30 Ramp mode 1
31 Stopping mode 1
32 Variable torque select OFF
33 Spinning motor select 0
34 Positive logic select On
35 Start/Stop logic select 0
36 Analog output select Fr
37 Switching frequency (kHz) 6
38 Auto tune 0
39 Rated frequency (Hz) 50.0 60.0
40 No. of poles Auto
41 Serial mode AnSI
42 Baud rate 4.8
43 Serial address 1.1
44 Software version --
45 Fieldbus node address 0
46 Fieldbus baudrate 0
47 Fieldbus diagnostics 0
48 Voltage mode selector 3
49 Low frequency voltage boost 3.0
50 Motor thermistor select OFF
*51 Zero speed threshold 1.0
*52 Motor current threshold 0
*53 Motor current threshold hysteresis 0
*54 Brake release delay time 0
