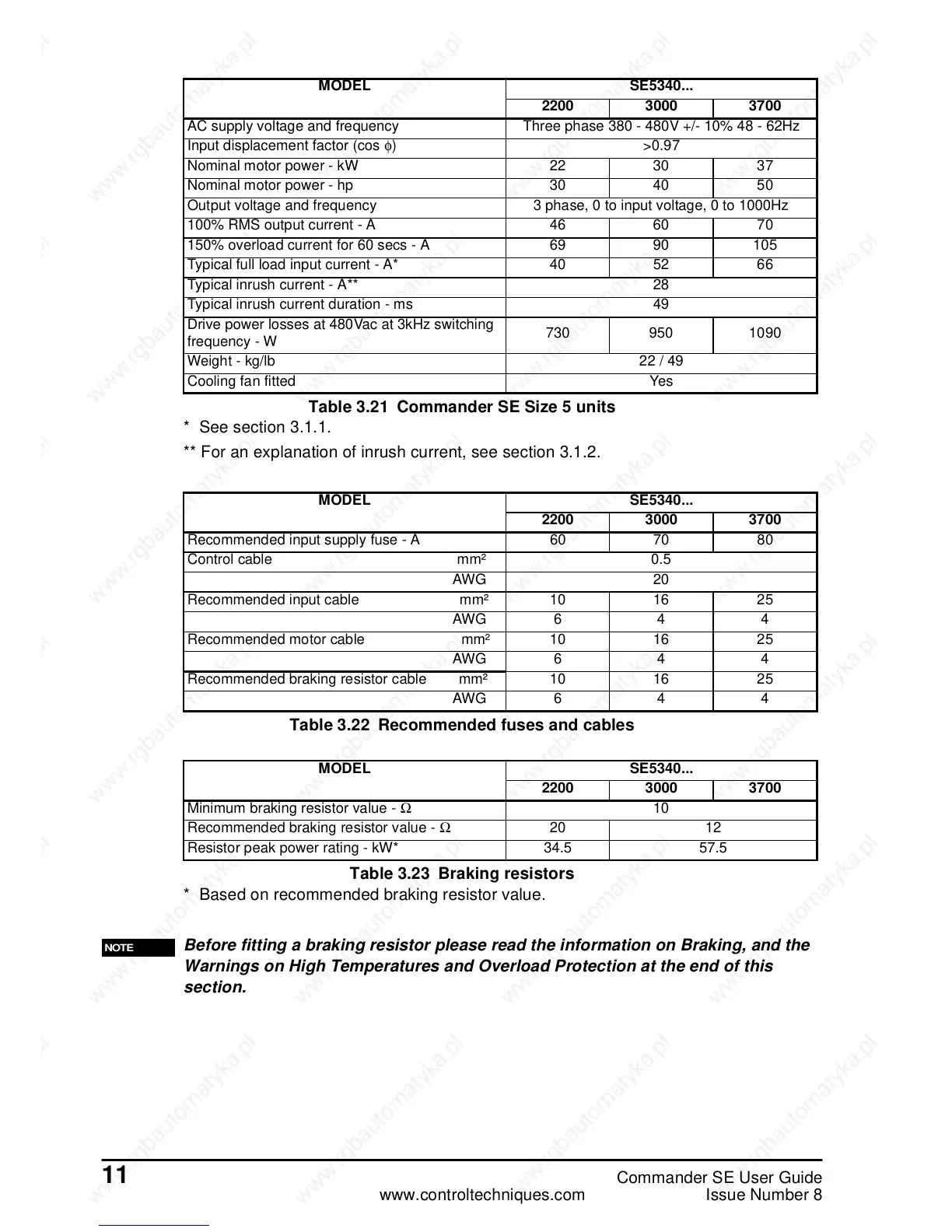

Table 3.21 Commander SE Size 5 units
* See section 3.1.1.
** For an explanation of inrush current, see section 3.1.2.
Table 3.22 Recommended fuses and cables
Table 3.23 Braking resistors
* Based on recommended braking resistor value.
Before fitting a braking resistor please read the information on Braking, and the
Warnings on High Temperatures and Overload Protection at the end of this
section.
MODEL SE5340...
2200 3000 3700
AC supply voltage and frequency Three phase 380 - 480V +/- 10% 48 - 62Hz
Input displacement factor (cos φ)>0.97
Nominal motor power - kW 22 30 37
Nominal motor power - hp 30 40 50
Output voltage and frequency 3 phase, 0 to input voltage, 0 to 1000Hz
100% RMS output current - A 46 60 70
150% overload current for 60 secs - A 69 90 105
Typical full load input current - A* 40 52 66
Typical inrush current - A** 28
Typical inrush current duration - ms 49
Drive power losses at 480Vac at 3kHz switching
frequency - W
730 950 1090
Weight - kg/lb 22 / 49
Cooling fan fitted Yes
MODEL SE5340...
2200 3000 3700
Recommended input supply fuse - A 60 70 80
Control cable mm² 0.5
AWG 20
Recommended input cable mm² 10 16 25
AWG 6 4 4
Recommended motor cable mm² 10 16 25
AWG 6 4 4
Recommended braking resistor cable mm² 10 16 25
AWG 6 4 4
MODEL SE5340...
2200 3000 3700
Minimum braking resistor value - Ω 10
Recommended braking resistor value - Ω 20 12
Resistor peak power rating - kW* 34.5 57.5
