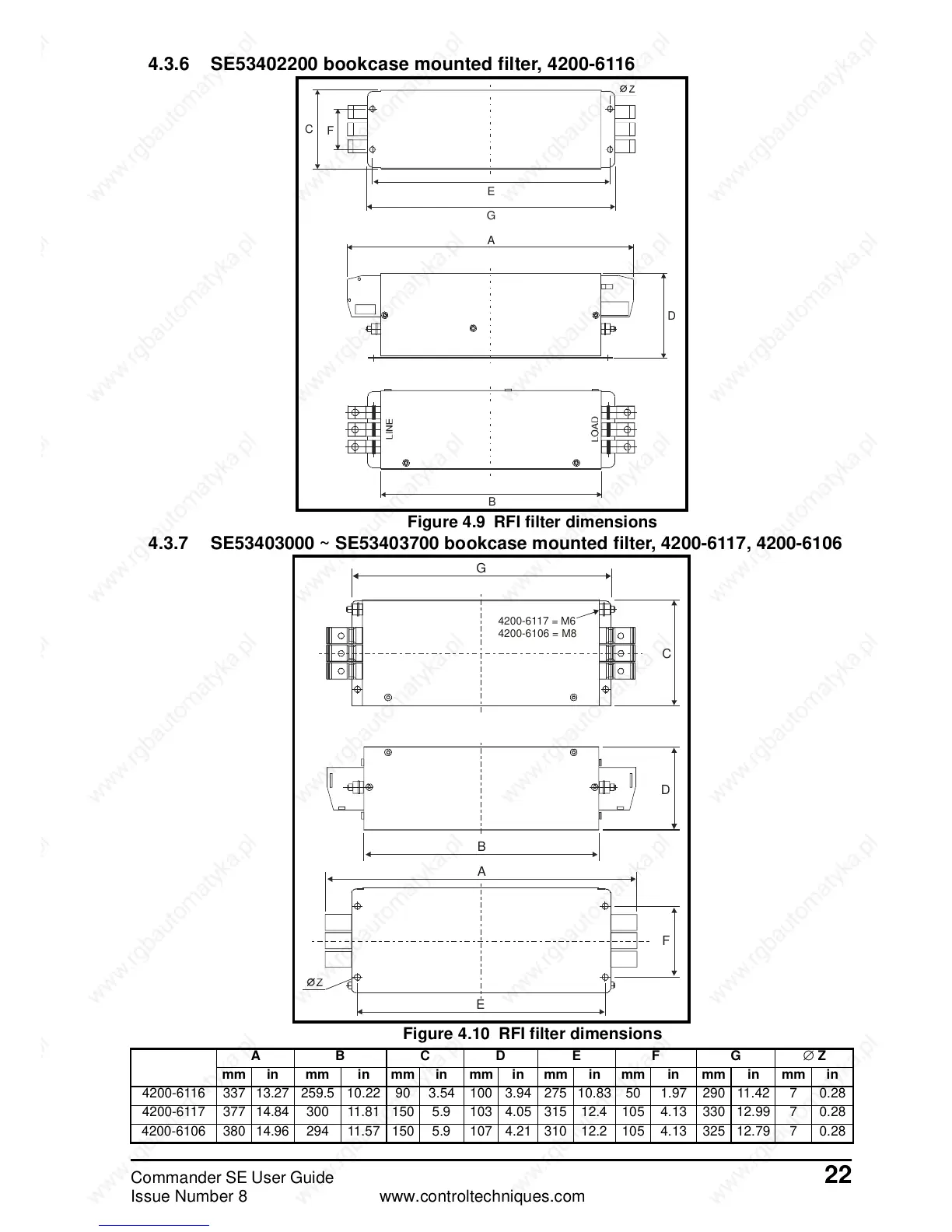

4.3.6 SE53402200 bookcase mounted filter, 4200-6116
Figure 4.9 RFI filter dimensions
4.3.7 SE53403000 ~ SE53403700 bookcase mounted filter, 4200-6117, 4200-6106
Figure 4.10 RFI filter dimensions
C
F
A
B
D
E
G
A
B
C
D
E
F
G
4200-6117 = M6
4200-6106 = M8
ABCDEFG∅ Z
mm in mm in mm in mm in mm in mm in mm in mm in
4200-6116 337 13.27 259.5 10.22 90 3.54 100 3.94 275 10.83 50 1.97 290 11.42 7 0.28
4200-6117 377 14.84 300 11.81 150 5.9 103 4.05 315 12.4 105 4.13 330 12.99 7 0.28
4200-6106 380 14.96 294 11.57 150 5.9 107 4.21 310 12.2 105 4.13 325 12.79 7 0.28
