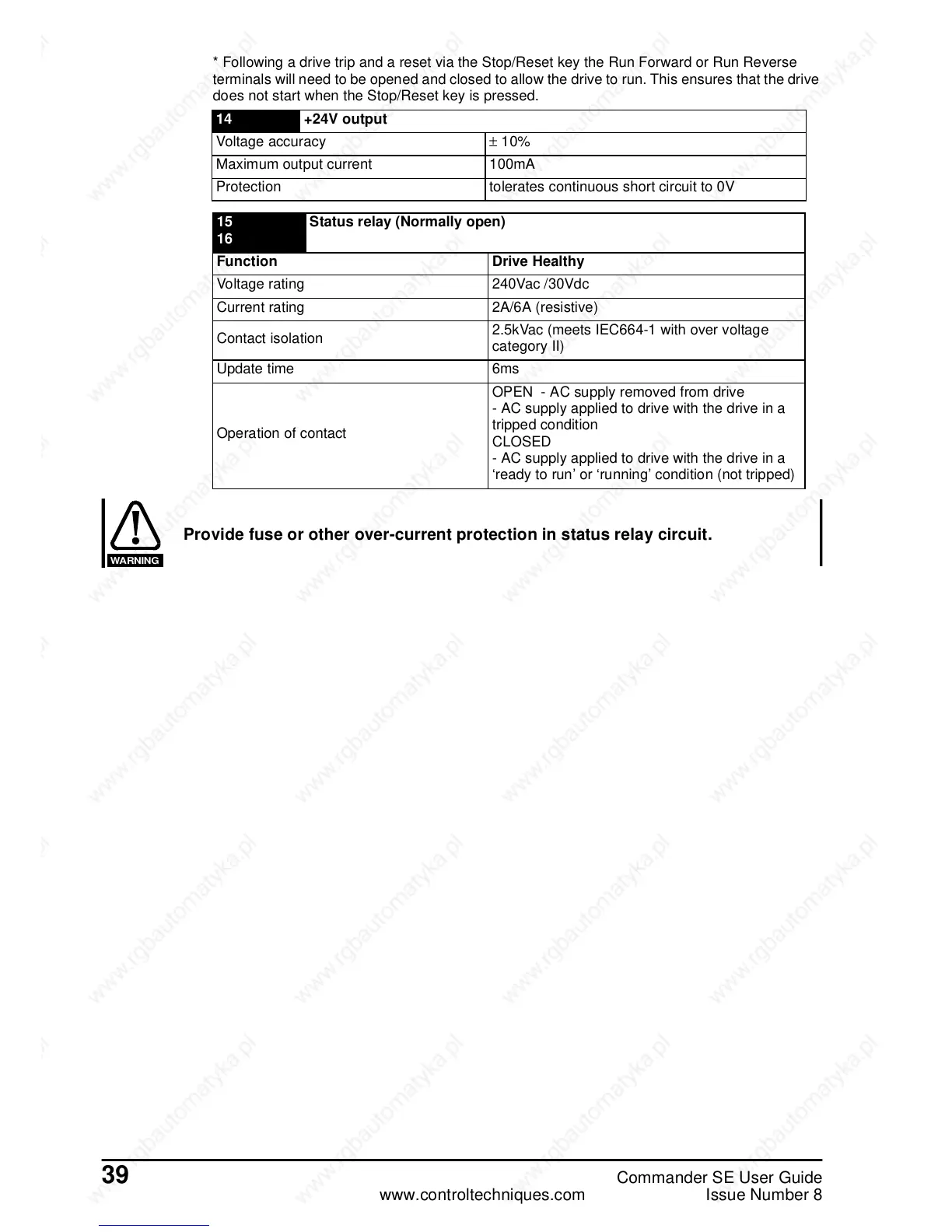

39 Commander SE User Guide
www.controltechniques.com Issue Number 8
* Following a drive trip and a reset via the Stop/Reset key the Run Forward or Run Reverse
terminals will need to be opened and closed to allow the drive to run. This ensures that the drive
does not start when the Stop/Reset key is pressed.
Provide fuse or other over-current protection in status relay circuit.
14 +24V output
Voltage accuracy ± 10%
Maximum output current 100mA
Protection tolerates continuous short circuit to 0V
15
16
Status relay (Normally open)
Function Drive Healthy
Voltage rating 240Vac /30Vdc
Current rating 2A/6A (resistive)
Contact isolation
2.5kVac (meets IEC664-1 with over voltage
category II)
Update time 6ms
Operation of contact
OPEN - AC supply removed from drive
- AC supply applied to drive with the drive in a
tripped condition
CLOSED
- AC supply applied to drive with the drive in a
‘ready to run’ or ‘running’ condition (not tripped)
WARNING
