Control Techniques Commander SE SE53403000 User Manual

Commander SE User Guide 66
Issue Number 8 www.controltechniques.com

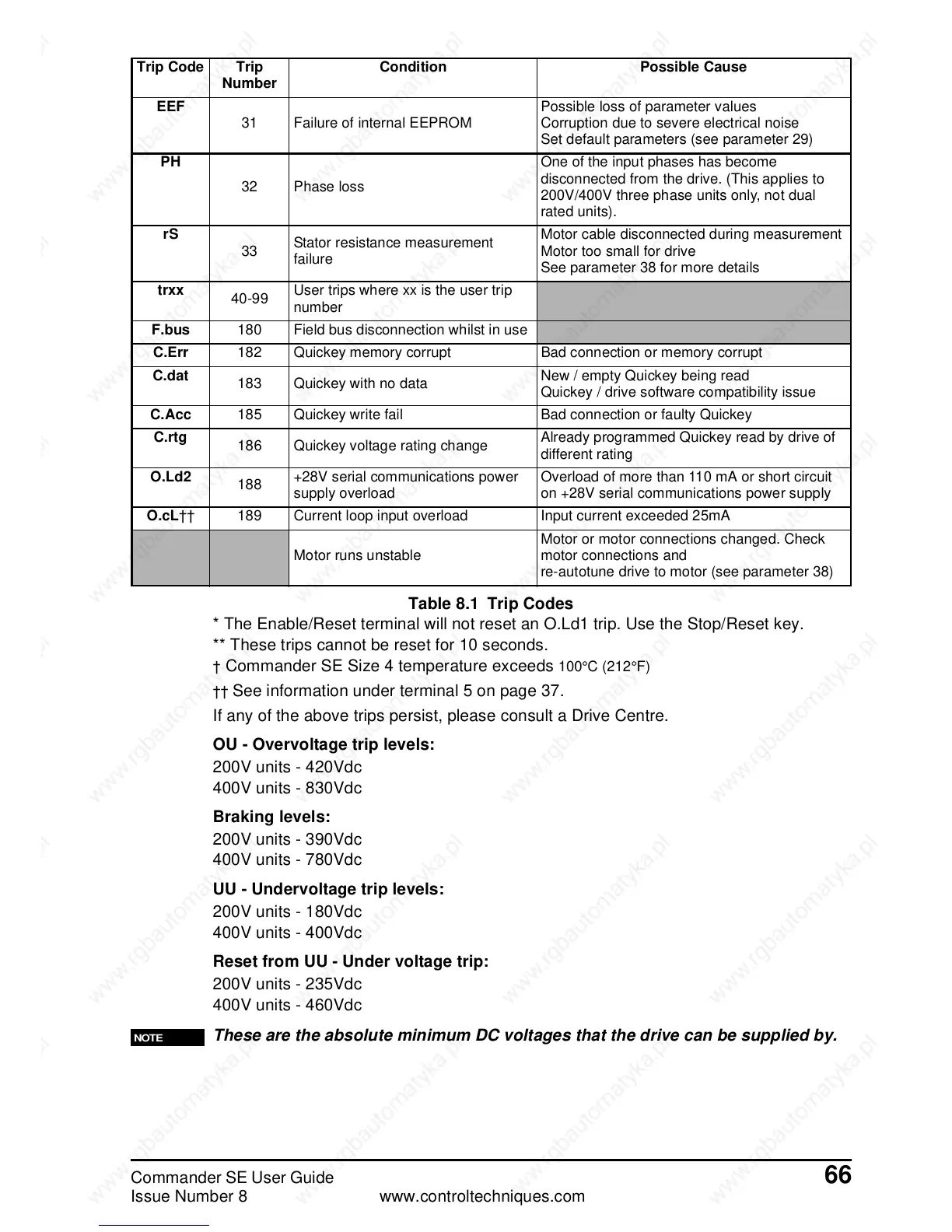

Table 8.1 Trip Codes
* The Enable/Reset terminal will not reset an O.Ld1 trip. Use the Stop/Reset key.
** These trips cannot be reset for 10 seconds.
† Commander SE Size 4 temperature exceeds 100°C (212°F)
††
See information under terminal 5 on page 37.
If any of the above trips persist, please consult a Drive Centre.
OU - Overvoltage trip levels:
200V units - 420Vdc
400V units - 830Vdc
Braking levels:
200V units - 390Vdc
400V units - 780Vdc
UU - Undervoltage trip levels:
200V units - 180Vdc
400V units - 400Vdc
Reset from UU - Under voltage trip:
200V units - 235Vdc
400V units - 460Vdc
These are the absolute minimum DC voltages that the drive can be supplied by.
EEF
31 Failure of internal EEPROM
Possible loss of parameter values
Corruption due to severe electrical noise
Set default parameters (see parameter 29)
PH
32 Phase loss
One of the input phases has become
disconnected from the drive. (This applies to
200V/400V three phase units only, not dual
rated units).
rS
33
Stator resistance measurement
failure
Motor cable disconnected during measurement
Motor too small for drive
See parameter 38 for more details
trxx
40-99
User trips where xx is the user trip
number
F.bus 180 Field bus disconnection whilst in use
C.Err 182 Quickey memory corrupt Bad connection or memory corrupt
C.dat
183 Quickey with no data
New / empty Quickey being read
Quickey / drive software compatibility issue
C.Acc 185 Quickey write fail Bad connection or faulty Quickey
C.rtg
186 Quickey voltage rating change
Already programmed Quickey read by drive of
different rating
O.Ld2
188
+28V serial communications power
supply overload
Overload of more than 110 mA or short circuit
on +28V serial communications power supply
O.cL†† 189 Current loop input overload Input current exceeded 25mA
Motor runs unstable
Motor or motor connections changed. Check
motor connections and
re-autotune drive to motor (see parameter 38)
Trip Code Trip
Number
Condition Possible Cause
NOTE
