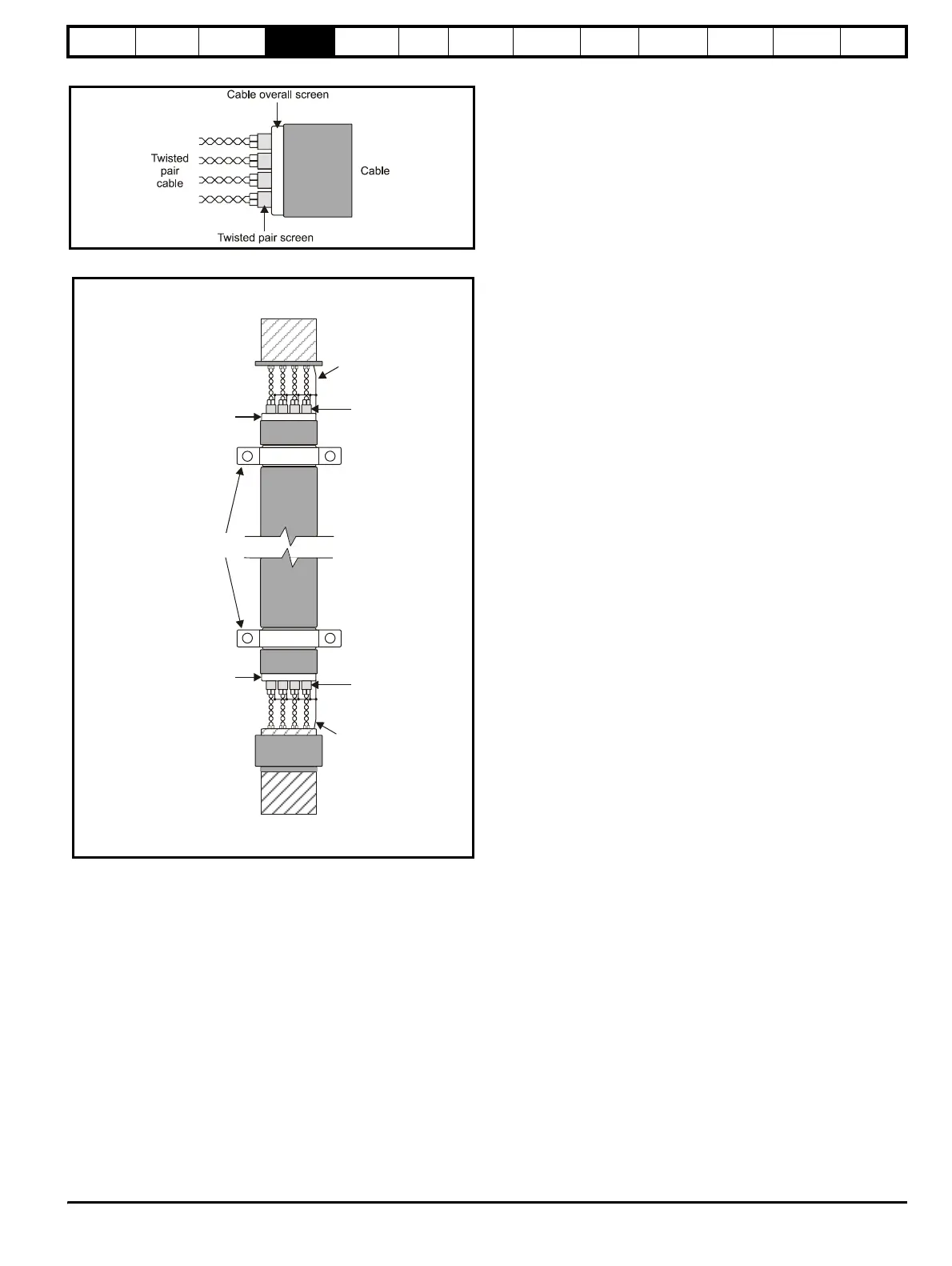

Figure 4-10 Feedback cable, twisted pair
Figure 4-11 Feedback cable connections
To ensure suppression of radio frequency emission,
observe the following:
• Use a cable with an overall shield
• Clamp the overall shield to grounded metallic surfaces at both the
encoder and the drive, as illustrated in Figure 4-11.
Cable
Cable
shield
Twisted
pair
shield
Cable
shield
Twisted
pair
shield
Connection
a
t m
o
t
o
r
C
onnection
at drive
Ground clamp
on shield
Shield
connection
to 0V
Shield
connection
to 0V
